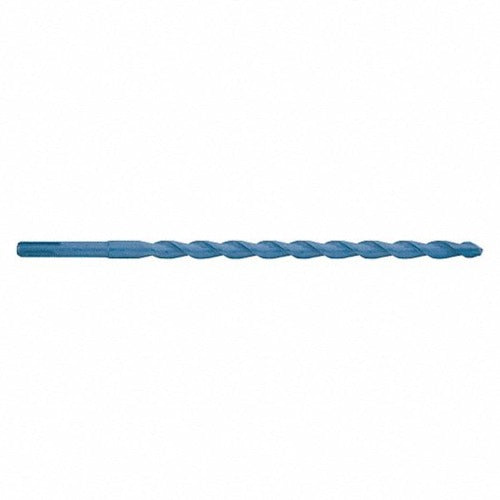

The DeWALT Wedge-Bit SDS Plus 1/4" x 6" is a carbide concrete drill bit engineered for precision drilling in concrete and masonry applications. Built with a carbide cutting tip and an SDS Plus shank, this bit delivers secure chuck engagement and efficient material removal - giving tradespeople and contractors a reliable tool for anchor setting and general concrete drilling tasks. Made in Germany to exacting standards, it offers the dimensional consistency and durability that demanding jobsite conditions require.

Key Features

• Carbide construction - provides hardness and wear resistance for drilling through concrete and masonry without rapid tip degradation
• SDS Plus shank design - locks positively into compatible rotary hammers, allowing the bit to slide and rotate efficiently for optimized hammering action
• 1/4" diameter x 6" length - sized for anchor bolt holes and similar concrete fastening applications where precision bore diameter is critical
• Wedge-Bit geometry - the specialized tip profile helps center the bit accurately in concrete, reducing walk and improving hole quality for anchor installation

Why This Product

• The SDS Plus shank is the standard for rotary hammer compatibility, meaning this bit works with a wide range of professional-grade hammer drills without adapters or conversions
• At 1/4" diameter, this bit is purpose-sized for common concrete anchor and screw applications, making it a practical everyday addition to any concrete drilling kit
• Carbide tipped construction handles the repeated impact loads of SDS Plus rotary hammers without the premature dulling that standard steel bits experience in masonry
• DeWALT's Wedge-Bit design addresses the challenge of accurate hole placement in concrete - the tip geometry helps maintain a true, consistent bore for reliable anchor seating

Specifications

• Brand: DeWALT
• Model Number: 01314-PWR
• Product Type: Concrete Bit
• Diameter: 1/4"
• Length: 6"
• Shank Type: SDS Plus
• Material: Carbide
• Product Height: 0.500 IN
• Product Length: 9.700 IN
• Product Width: 1.900 IN
• Product Weight: 0.138 LB
• Country of Origin: Germany

Approved Applications

• Drilling in concrete for anchor bolt and screw installation
• Masonry drilling applications requiring a 1/4" bore
• Use with SDS Plus rotary hammers for efficient hammer drilling in structural concrete

Frequently Asked Questions

What type of chuck does this drill bit require?

This bit uses an SDS Plus shank, which is designed for use with SDS Plus rotary hammers. It is not compatible with standard keyless or keyed drill chucks - an SDS Plus rotary hammer is required for proper function.

What materials can this bit drill through?

This DeWALT carbide bit is a concrete bit designed for drilling in concrete and masonry materials. The carbide tip handles the hardness and abrasiveness of these materials when used with a compatible SDS Plus rotary hammer.

What are the key dimensions of this drill bit?

The bit has a 1/4" cutting diameter and a 6" length. The overall packaged dimensions are 9.700 IN long, 1.900 IN wide, and 0.500 IN in height, with a weight of 0.138 LB.

Is this bit suited for anchor installation in concrete?

Yes - the Wedge-Bit geometry and 1/4" diameter make this bit well suited for boring holes in concrete for anchor bolt and concrete screw applications. The specialized tip profile helps produce an accurate, consistent hole for reliable anchor seating.
