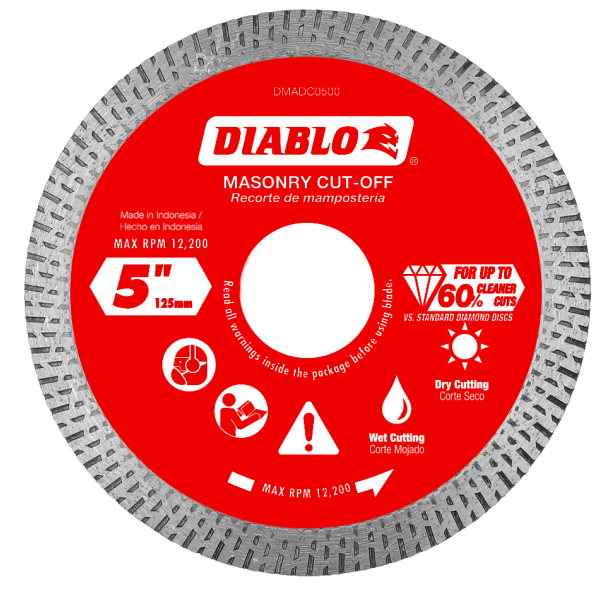

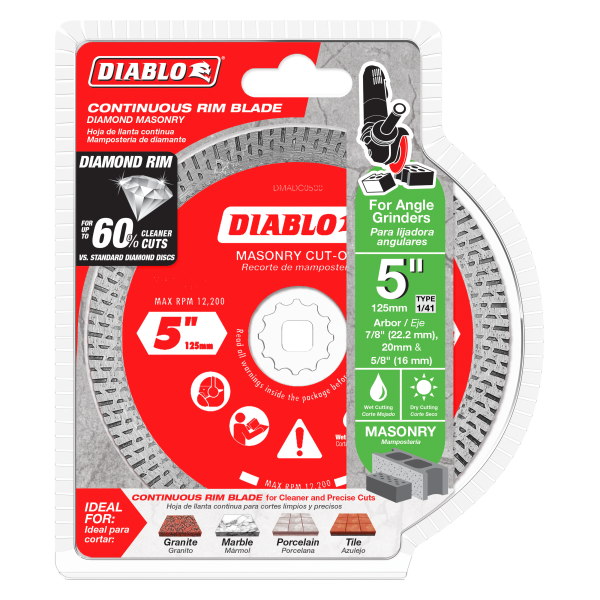

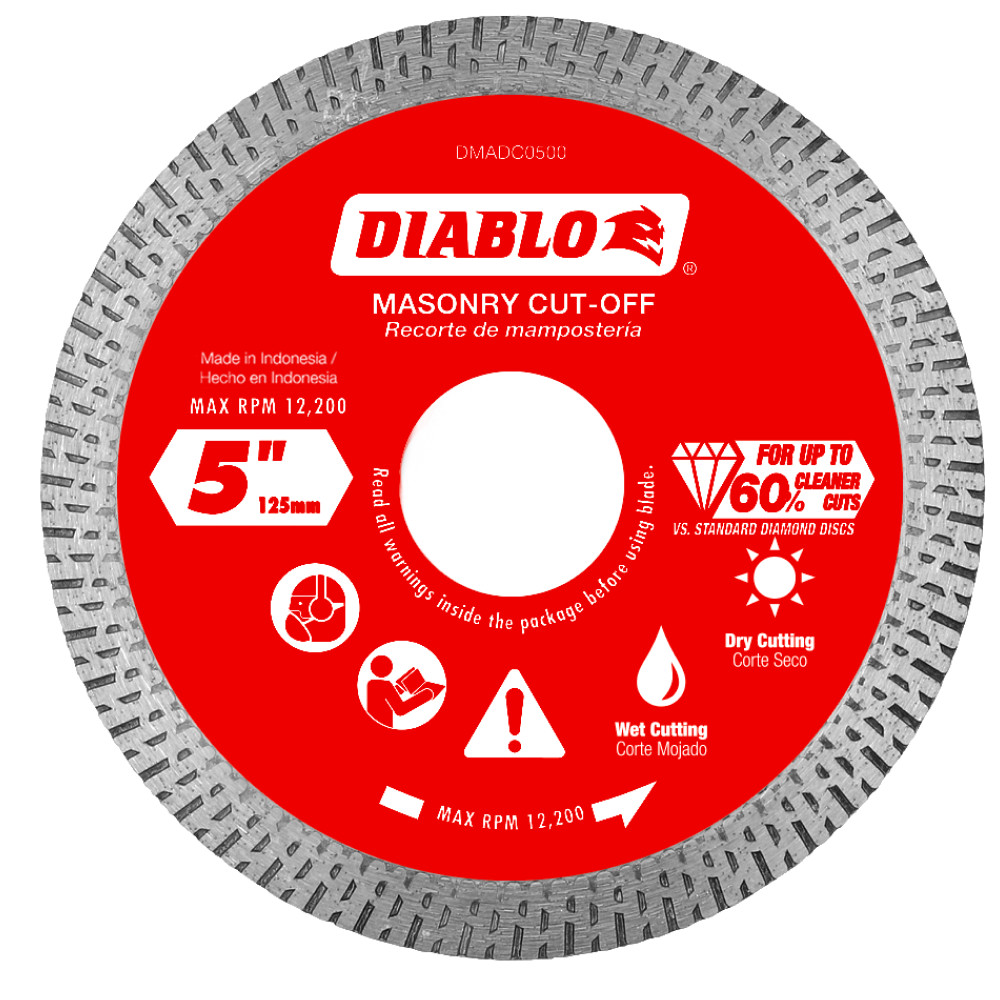

The Diablo 5" Diamond Continuous Rim Masonry Cut-Off Disc is engineered for professionals who demand chip-free, precise cuts in hard tile and natural stone materials. Designed for use with an angle grinder, this Diablo disc features a continuous rim configuration and industrial-grade diamonds to deliver up to 60% smoother cuts compared to standard diamond cut-off discs - making it an ideal choice for cutting granite, marble, porcelain, and tile in both dry and wet conditions. With a 1.4mm kerf and a maximum rating of 12,200 RPM, this disc keeps cuts accurate and clean even in demanding, high-speed masonry applications.

Key Features

• Superior quality diamond edge rim design delivers up to 60% smoother cuts versus standard diamond cut-off discs - resulting in chip-free cuts without burn marks, so finished surfaces look professional with minimal rework
• Hardened disc body absorbs vibration and increases impact resistance - maintaining cut quality and user control even when working through dense hardened materials like granite and marble
• Ultra-thin 1.4mm kerf continuous turbo rim design provides precise cuts at high rates of speed - reducing material waste and keeping cut lines tight and accurate
• Compatible with 7/8", 20mm, and 5/8" arbors - giving this disc broad compatibility with a wide range of angle grinders without requiring additional adapters
• Includes two bushings (20mm and 5/8") - so the disc is ready to mount on different arbor sizes right out of the package
• Rated for both dry and wet cutting - allowing flexibility across jobsite conditions and material types
• Maximum rating of 12,200 RPM - supports high-speed operation for efficient cuts through porcelain, tile, and natural stone

Why This Product

• When working with delicate or finished tile and natural stone surfaces, the continuous rim design minimizes chipping and eliminates burn marks - protecting material integrity and reducing costly mistakes on precision cuts
• The combination of industrial-grade diamonds and a hardened disc body means this wheel holds up in extreme masonry applications, delivering durable, consistent performance through granite, marble, and porcelain without rapid wear
• Multi-arbor compatibility with included 20mm and 5/8" bushings makes this disc a flexible tool for contractors and tradespeople who work with different grinders on the same jobsite
• Wet and dry cutting capability adds versatility - whether working in a controlled shop environment or in the field, this disc adapts to cutting conditions without requiring a dedicated wet-only blade

Specifications

• Brand: Diablo
• Model Number: DMADC0500
• Diameter: 5"
• Arbor: 7/8", 20mm, 5/8"
• Kerf: 1.4mm
• Rim Design: Continuous
• Maximum RPM: 12,200
• Compatible Tools: Angle Grinder
• Compatible Materials: Granite, Marble, Porcelain, Tile
• Pack Quantity: 1

Approved Applications

• Tile and Natural Stone cutting

What's Included

• 1x Diablo 5" Diamond Continuous Rim Masonry Cut-Off Disc
• 1x 20mm bushing
• 1x 5/8" bushing

Frequently Asked Questions

Can this disc be used for both wet and dry cutting?

Yes. This Diablo disc is rated for both dry and wet cutting, giving you flexibility based on your jobsite setup and the material being cut.

What arbor sizes is this disc compatible with?

This disc is compatible with 7/8", 20mm, and 5/8" arbors. Two bushings - one 20mm and one 5/8" - are included in the package so you can mount the disc to different angle grinders without purchasing additional hardware.

What materials can this disc cut?

This disc is designed for cutting granite, marble, porcelain, and tile. The continuous rim and industrial-grade diamond construction make it especially well-suited for hardened materials where a clean, chip-free edge is required.

How much smoother does this disc cut compared to a standard diamond cut-off disc?

According to Diablo, the diamond continuous rim design delivers up to 60% smoother cuts versus standard diamond cut-off discs, resulting in chip-free cuts without burn marks on the finished surface.
