Product Description

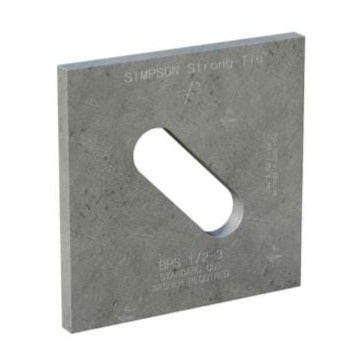

Simpson BPS 1/2-3HDG Slotted Bearing Plate is a heavy-gauge structural connector engineered to provide a greater bearing surface than standard cut washers at critical foundation connections. Built for use on foundation anchor bolts in 2x4 and 2x6 sill plate assemblies, this 3 in. x 3 in. plate features a slotted hole for on-site adjustability and a hot-dip galvanized finish that delivers superior corrosion resistance where exterior exposure or pressure-treated lumber is involved. When a standard cut washer simply is not enough, this bearing plate strengthens and distributes the load at connections that demand more.
Key Features
- Slotted hole design - allows adjustability to account for anchor bolts that are not centered in the sill plate, saving time and reducing the need for rework during installation
- Compatible with 2x4 and 2x6 wall assemblies - offers increased flexibility while meeting the latest code requirements for the most common residential and light-commercial wall configurations
- 3-gauge steel construction - provides the heavy-duty strength needed to distribute loads effectively at foundation anchor bolt connections where standard washers fall short
- Hot-dip galvanized finish - delivers extra corrosion resistance for exterior applications and treated-wood environments where moisture exposure is a concern
- 3 in. x 3 in. plate footprint - offers a significantly larger bearing surface than a standard cut washer, helping to strengthen load transfer at critical structural connections
Why This Product
- Built for real-world installation conditions - the slotted hole accommodates anchor bolts that are off-center in the sill plate, giving installers the flexibility to make accurate, code-compliant connections without repositioning hardware
- A more robust alternative to cut washers - the larger bearing surface and 3-gauge steel thickness work together to strengthen and distribute loads at foundation connections that standard cut washers are not designed to handle
- Finish matched to demanding environments - hot-dip galvanization is specifically suited to exterior and treated-wood applications, making this plate a practical choice for projects where corrosion resistance is a requirement, not an option
- Code-ready for common wall framing - engineered to meet the latest requirements for 2x4 and 2x6 wall systems, reducing guesswork and helping projects stay compliant from the foundation up

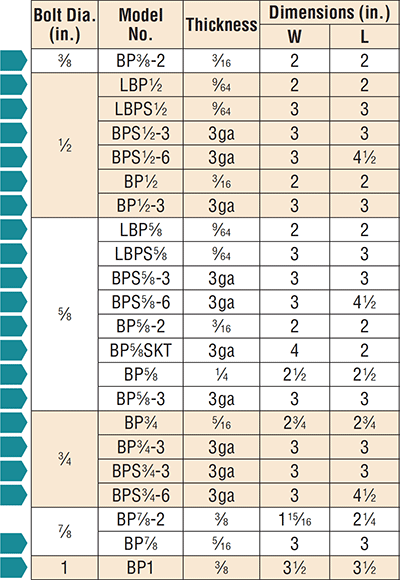

Specifications
- MPN: BPS 1/2-3HDG
- Bolt Diameter: 1/2 in.
- Plate Width: 3 in.
- Plate Length: 3 in.
- Gauge: 3
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Compatible Member Size: 2x4, 2x6
- Country of Origin: United States
Approved Applications
- Foundation anchor bolt connections in place of standard cut washers
- Sill plate connections for 2x4 and 2x6 wall assemblies
- Exterior applications requiring elevated corrosion resistance
- Treated-wood applications where hot-dip galvanization is recommended
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What is the purpose of the slotted hole in the BPS 1/2-3HDG bearing plate?
The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate, providing greater on-site flexibility during installation without the need to reposition the anchor bolt.
Why should I use a bearing plate instead of a standard cut washer?
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections, making them a more robust solution for foundation anchor bolt applications.
Is the hot-dip galvanized finish necessary for my application?
Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications. If your project involves exposure to moisture, outdoor conditions, or pressure-treated lumber, the HDG finish of this bearing plate provides the additional protection needed.
What wall member sizes is the BPS 1/2-3HDG compatible with?
This bearing plate is designed to offer increased flexibility while meeting the latest code requirements for 2x4 and 2x6 walls, making it suitable for the most common residential and light commercial framing dimensions.
