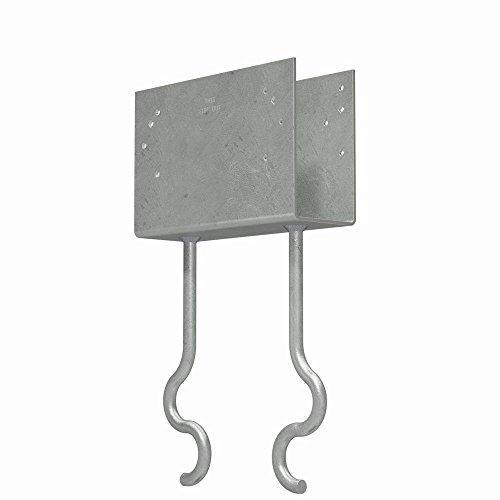

The Simpson CCQM3.62-SDS Column Cap is a heavy-gauge embedded column cap engineered for raised pier foundation systems where structural beams bear on concrete piers or concrete masonry unit (CMU and GFCMU) columns. Designed by Simpson for floor support beam connections at non-corner pier locations, this column cap delivers the high uplift and lateral resistance demanded by high-wind-resistant structural assemblies, making it a dependable choice for code-confident pier foundation construction.

Key Features

• Includes 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws - fasteners engineered specifically for this application are included in the box, so you have everything needed to meet published load values right away.
• SDS screws required in all round holes - installing the correct fastener type in every designated hole ensures the column cap achieves its rated uplift and lateral load performance; lag screws are not an acceptable substitute.
• Engineered for non-corner pier locations - the cap is purpose-built for floor support beam connections along a pier run, giving builders the right component for each specific position in a raised pier foundation layout.
• Compatible with concrete piers and CMU/GFCMU columns - broad column-type compatibility makes this cap a practical fit across a variety of raised pier foundation configurations without requiring special modifications.
• Gray paint finish - a durable factory-applied finish helps protect the connector during handling, storage, and installation in exposed foundation environments.
• Configurable for many beam and beam-to-beam combinations - custom configurations are available for different beam arrangements, allowing the same trusted connection design to adapt to a wide range of structural layouts.

Why This Product

• Purpose-built for high-wind pier foundation assemblies - this column cap is specifically approved for applications requiring high uplift and lateral resistance, making it a structurally appropriate choice for projects in demanding wind-load environments.
• Complete fastener package included - the correct 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws come with the cap, eliminating guesswork and ensuring the connection is assembled with the fasteners needed to reach published load values.
• Trusted Simpson engineering, made in the United States - backed by one of the construction industry's most recognized connector brands, this cap is manufactured to consistent quality standards that contractors and engineers can rely on.
• Flexible enough for diverse beam configurations - with custom beam and beam-to-beam combinations available, this connector can serve a broader range of raised pier and CMU column projects beyond standard single-beam applications.

Specifications

• Manufacturer: Simpson Strong-Tie Company Inc
• MPN: CCQM3.62-SDS
• Width: 3-5/8"
• Length: 11"
• Finish: Gray Paint
• Included Fasteners: 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
• Country of Origin: United States

Approved Applications

• Raised pier foundation systems
• Applications where heavy beams rest on concrete or concrete block (CMU) columns
• Floor support beam connections at non-corner pier locations
• High-wind-resistant structural assemblies requiring high uplift and lateral resistance

What's Included

• 1 x CCQM3.62-SDS Column Cap
• 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws

Frequently Asked Questions

Can I use lag screws instead of the included SDS screws?

No. Lag screws will not achieve the same load as the 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws. SDS screws must be installed in all round holes to meet published load values.

Is the CCQM3.62-SDS suitable for corner pier locations?

No. The CCQM is intended for use along a floor support beam at non-corner locations only.

What column types is this cap compatible with?

This column cap is designed for use with concrete piers and concrete masonry unit (CMU / GFCMU) columns in raised pier foundation applications.

Are custom beam configurations available?

Yes. Configurations for many different beams or beam-to-beam combinations can be manufactured. for Configurable Options and Special orders.

Note: Product dimensions and/or screw holes may differ from picture.
