Product Description

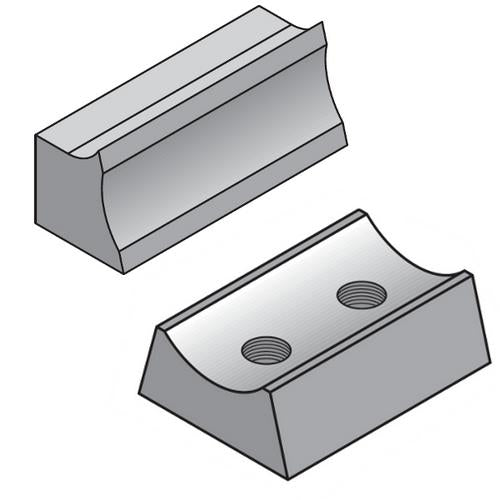

CMT Wedge for Knives 22x11x9.5mm - for Cutter Head 694.003 is a precision replacement wedge component designed to securely retain insert knives within compatible CMT cutter heads and router bit assemblies. Engineered to exact dimensional tolerances, this wedge ensures that cutting knives stay firmly locked in position during operation, supporting accurate and consistent woodworking results. Whether you are maintaining a cutter head on a production line or restoring a router bit assembly, this knife-securing wedge delivers the precise fit required for safe, reliable performance.
Key Features
- 22x11x9.5mm wedge dimensions - machined to exact size for a precise fit within the cutter head body, ensuring knives are held securely without play or movement during cutting passes.
- Compatible with CMT cutter head 694.003 - a direct-fit replacement that eliminates guesswork and reduces downtime when servicing your cutter head assembly.
- Also compatible with cutter heads 694.005 and series 651, 692, 693, and 695 - broad compatibility across multiple CMT cutter head families means this wedge works across a range of woodworking setups, adding versatility to your spare parts inventory.
- Designed for cutter heads and router bits with knives - purpose-built for knife-style insert tooling, this wedge supports the clamping force needed to keep replaceable knife edges properly aligned and seated during use.
- 3/8 in. total length - compact profile fits within the cutter head slot, maintaining the correct knife projection for consistent depth-of-cut results.
Why This Product
- When a wedge wears or becomes damaged, knives can shift during operation - having the correct replacement on hand keeps your cutter head running safely and accurately without replacing the entire assembly.
- The 22x11x9.5mm dimensions match the original CMT specification for cutter head 694.003, so you get a verified fit rather than adapting a generic component that may compromise knife retention.
- Compatibility across series 651, 692, 693, 694, and 695 cutter heads means this single wedge part can serve multiple tools in your shop, reducing the number of spare parts you need to stock.
- Using the correct manufacturer-specified wedge maintains the integrity of the knife clamping system, helping preserve cut quality and extend the service life of your cutter head and insert knives.
Specifications
- MPN: 695.999.22
- Brand: CMT Orange Tools
- Diameter: 22mm
- Cutting Height: 11mm
- Total Length: 3/8 in.
- For Use With: CMT Cutter Head 694.003
Frequently Asked Questions
What cutter heads is this wedge compatible with?
This wedge is compatible with CMT cutter head 694.003 and cutter head 694.005, as well as cutter heads in the 651, 692, 693, and 695 series. It is also suited for use with router bits that accept replaceable knives secured by wedge-style clamping.
What are the exact dimensions of this wedge?
The wedge measures 22mm in diameter, 11mm in cutting height, and 3/8 in. in total length. These dimensions match the original CMT specification for the compatible cutter head assemblies listed above.
Why would I need to replace the wedge in my cutter head?
Over time, wedges can wear, deform, or become damaged through repeated knife changes and the clamping forces of regular use. A worn wedge may fail to hold insert knives securely, which can affect cut quality and safe operation. Replacing the wedge restores proper knife retention.
Is this wedge sold as an individual piece?
The product data does not specify a multi-unit pack size, so this wedge is treated as an individual replacement component. If you need multiple wedges for a cutter head with several knife slots, plan your quantity accordingly.
