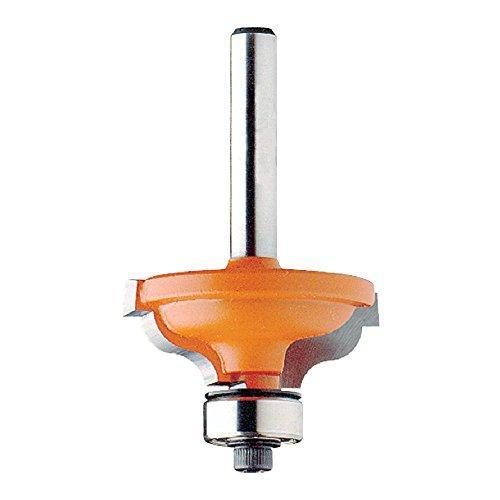

CMT Ogee with Fillet Router Bit with Bearing - 1 3/8" Diameter, 1/2" Shank brings classic decorative edge profiles within reach for woodworkers crafting traditional furniture, cabinetry, and millwork. This CMT bit combines a graceful ogee curve with a crisp flat fillet, producing the layered, stepped profiles that define period-style furniture edges and door frames. Built from the highest quality tungsten carbide and finished with CMT's trademarked orange PTFE non-stick coating, this router bit is engineered for durability, precision, and clean results in solid hardwood, softwood, and sheet goods. The integrated bearing guide keeps your cuts consistent pass after pass, making it equally at home in a handheld router, router table, or CNC routing setup.

Key Features

• Highest quality tungsten carbide cutting edges - resists wear during extended use in hardwood and composite materials, maintaining sharpness longer and reducing the frequency of resharpening.
• Orange PTFE non-stick coating - prevents pitch and resin buildup on the bit body, reduces heat generation during cutting, guards against corrosion, and extends overall tool life.
• Ogee with fillet profile - produces a classic combination decorative edge featuring both a flowing S-curve and a flat fillet step, ideal for traditional furniture and cabinet door edges.
• Integrated bearing guide - rides along the workpiece edge to control the depth of cut precisely, keeping profiles consistent without the need for fences on a handheld router.
• 2-flute design with right-hand rotation - delivers smooth, balanced cutting action that reduces vibration and produces cleaner surface finishes on the routed profile.
• 1/2" shank diameter - provides a rigid, stable connection in the router collet, minimizing deflection and chatter for more accurate, safer cuts.
• 3/16" radius ogee curve - gives the profile its characteristic decorative sweep, well-suited to furniture rail and stile edges, tabletop perimeters, and architectural trim.

Why This Product

• The ogee-and-fillet profile is one of the most recognized traditional decorative edges in furniture making - this bit lets woodworkers recreate that classic look in a single router pass (or multiple controlled passes) without custom grinding or stacked setups.
• The PTFE non-stick coating directly addresses one of the most common frustrations with carbide router bits - resin and pitch adhesion that causes burning and degraded cut quality - keeping the bit performing cleanly for longer.
• The 1/2" shank pairs with the bearing guide to give users maximum stability and control when running decorative profiles, particularly important when working with challenging grain patterns in solid hardwood.
• The manufacturer specifically recommends multiple passes for this type of profile machining, and this bit's carbide construction and anti-buildup coating make incremental depth-of-cut routing practical and efficient.

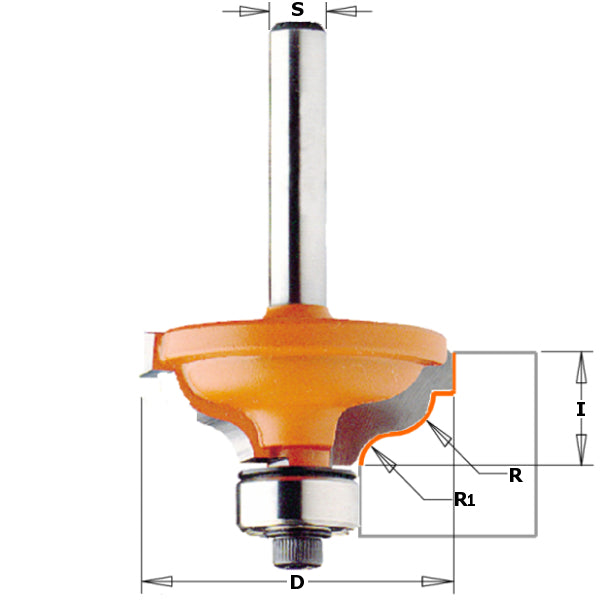

Specifications

• Manufacturer Part Number: 846.825.11
• Brand: CMT Orange Tools
• Diameter: 1 3/8"
• Cutting Height: 1/2"
• Total Length: 2 27/64"
• Radius: 3/16"
• Shank: 1/2"
• Number of Teeth: 2
• Material: HW (Tungsten Carbide)
• Rotation: Right-hand (RH)
• Bit Type: Ogee with Fillet Bit with Bearing

Approved Applications

• Ogee with fillet decorative edge profiles
• Traditional furniture edges and rails
• Cabinet door stile and rail profiling
• Tabletop perimeter decoration
• Architectural millwork and trim profiling
