The CMT Contractor Panel Pilot Bit - 1/2" diameter with a 1" cutting height - is a precision routing tool engineered to quickly cut clean, accurate openings in panel materials including drywall, siding, and veneered boards. Built with a sharpened carbide tip for plunge-start entry and two carbide cutters for fast, smooth through-cuts, this bit handles laminate trimming, electrical box cutouts, and door or window opening work with consistent results. The right-hand rotation design and 1/2" shank make it compatible with a wide range of handheld routers, router tables, and CNC routing machines.

Key Features

• Sharpened Carbide Plunge Tip - allows the bit to pierce panel material directly without a pre-drilled starter hole, saving setup time on drywall and siding cutouts
• 2 + 1 Carbide Cutter Configuration - two carbide cutters combined with the pilot tip deliver fast, smooth cuts through panels, reducing tear-out on laminates and veneered boards
• Hardmetal (HW) Carbide Construction - industrial-grade carbide material maintains cutting edge sharpness through repeated use in panel, laminate, and composite materials
• 1/2" Shank - provides a secure, vibration-resistant fit in 1/2" collet routers, improving cut accuracy and operator control
• 3-5/8" Total Length - gives adequate clearance for handheld routing in tight spaces such as wall panels and cabinet sides
• Right-Hand Rotation - matches standard router collet direction, ensuring proper chip ejection and predictable cutting behavior on panel materials
• CMT Orange Shield Non-Stick Coating - prevents pitch and resin buildup on the bit body, reduces heat accumulation during extended cutting sessions, and helps protect against corrosion for longer tool life
• SinterHIP Industrial Chrome Carbide - carbide processed via Hot Isostatic Pressing resists material failure under load, extending cutting life in demanding panel and composite applications
• Tri-Metal Brazing - silver-copper-silver brazing secures the carbide tip against stress when routing harder composites or laminates, reducing the risk of tip separation
• Anti-Kickback Design - controls depth of cut mechanically, minimizing kickback risk and improving safety during panel routing operations

Why This Product

• The sharpened carbide plunge tip eliminates the need for a pilot hole before routing - ideal for production panel work where speed and accuracy at door and window opening cutouts are essential
• With a 1/2" cutting diameter and 1" cutting height, this bit is sized specifically for panel stock thickness, making it a practical choice for drywall, siding, and laminate sheet goods without over-penetrating the substrate below
• The combination of CMT Orange Shield coating and SinterHIP carbide processing means the bit stays cleaner and sharper through more cuts - reducing the frequency of cleaning stops and bit replacements on the job site
• The 1/2" shank and anti-kickback geometry make this bit a controlled, safer option for contractors routing panel openings in high-volume applications such as cabinet installation, wall framing, and siding work

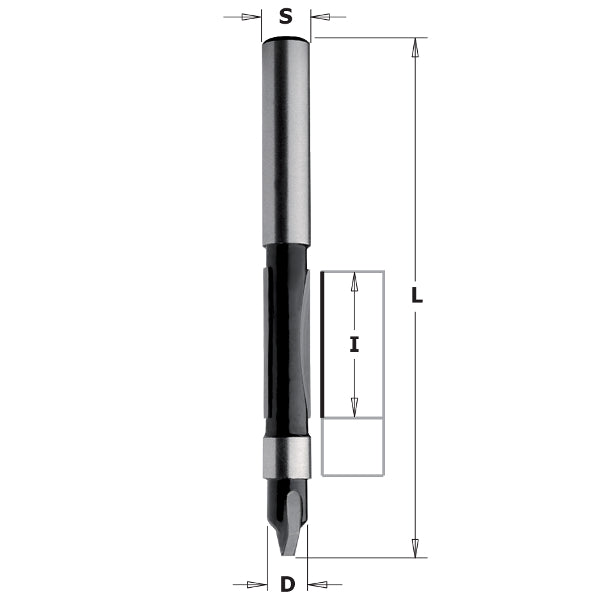

Specifications

• Manufacturer Part Number: 81651
• Brand: CMT Orange Tools
• Diameter: 1/2"
• Cutting Height: 1"
• Total Length: 3-5/8"
• Shank: 1/2"
• Number of Teeth: 2 + 1
• Blade Material: Hardmetal Carbide (HW)
• Rotation: Right-Hand (RH)
• Product Type: Panel Pilot Bit

Approved Applications

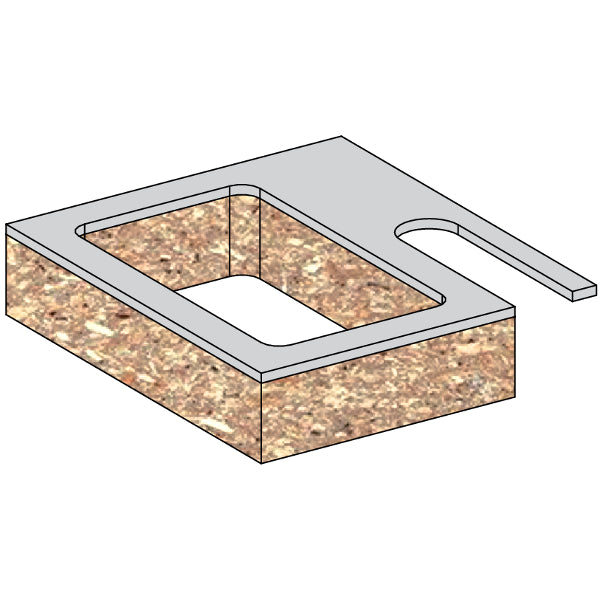

• Door and window opening cutouts in panels
• Drywall cutouts and routing
• Siding panel openings
• Electrical box cutouts
• Trimming veneered boards
• Laminate trimming and panel routing
