Product Description

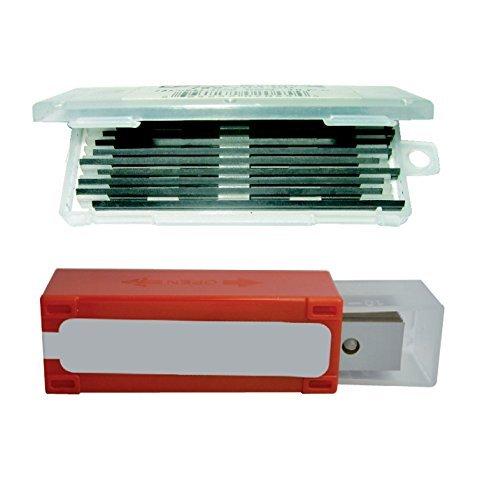

CMT Solid Carbide Reversible Insert Knives - 14x14x2mm, 4 Cutting Edges, 30 deg. Bevel (10-Pack) are precision-ground throwaway indexable knives engineered for demanding profiling and shaping applications. Built from K1920 grade solid carbide (tungsten carbide), these square reversible inserts deliver four usable cutting edges per knife, making them a cost-effective solution for woodworkers running spindle moulders, profile machines, and compatible insert cutter head systems. Each knife measures 14mm in length, 14mm in height, and 2mm in thickness, with a 30 deg. cutting angle optimized for clean, repeatable cuts in hardwood, softwood, MDF, chipboard, and plywood.
Key Features
- K1920 Solid Carbide Material - tungsten carbide construction delivers significantly longer cutting life compared to HSS alternatives, reducing downtime and replacement frequency on hardwood, softwood, and engineered sheet goods.
- 4 Reversible Cutting Edges at 30 deg. Bevel - each knife offers four usable cutting edges, so when one edge dulls you simply rotate the insert to a fresh edge, maximizing the value of every knife in the pack.
- Standard Indexable (Throwaway) Design - the square 14x14x2mm profile conforms to the HW-K1920 standard for reversible throwaway knives, ensuring consistent fit in compatible cutter heads without additional grinding or setup.
- Precision-Ground Profile - each knife is ground to exact dimensional tolerances (14mm x 14mm x 2mm), promoting consistent cut quality and uniform profile results across extended production runs.
- 10-Piece Pack - multiple knives included per order means you have ready replacements on hand, keeping production moving without waiting for restocking.
Why This Product
- Four cutting edges per knife means you get four times the productive life from each insert before disposal - a practical advantage for shops running high volumes of profiling and molding operations.
- The 30 deg. cutting angle and K1920 carbide grade are matched to handle a wide range of wood-based materials - from dense hardwoods to abrasive composite boards like MDF and chipboard - without rapid edge degradation.
- The standard reversible throwaway format eliminates the need for knife grinding equipment and operator skill, reducing setup time and toolroom complexity for shops of any size.
- The 10-piece pack quantity ensures you have enough inserts to complete a job run and maintain a backup supply, reducing the risk of production stoppages from unexpected edge wear.
Specifications
- Manufacturer Part Number: 790.140.00
- Brand: CMT Orange Tools
- Length: 14mm
- Height: 14mm
- Thickness: 2mm
- Diameter: 14mm
- Diameter Bore: 6.4mm
- Cutting Depth: 14mm
- Cutting Height: 14mm
- Angle: 30 deg.
- Number of Cutting Edges: 4
- Material: K1920 Solid Carbide
- Quantity: 10-Piece Pack
Approved Applications
- Profiling and Molding
- Edge Profiling
- Rabbeting
- Grooving
- Jointing
Frequently Asked Questions
How many cutting edges does each knife provide?
Each knife features 4 cutting edges at a 30 deg. bevel. When one edge becomes dull, you rotate the insert to expose a fresh edge, giving you four full cutting opportunities before replacing the knife.
What materials can these carbide insert knives cut?
These K1920 solid carbide knives are suited for use in hardwood, softwood, MDF, chipboard, and plywood applications. The carbide grade is selected for durability across both natural wood and abrasive engineered wood products.
What are the exact dimensions of each knife?
Each knife measures 14mm in length by 14mm in height by 2mm in thickness, with a 6.4mm bore diameter and a 30 deg. cutting angle. These dimensions conform to the HW-K1920 standard reversible throwaway knife format.
How many knives are included in one pack?
Each pack contains 10 solid carbide reversible insert knives, providing multiple inserts for extended production use and on-hand backup replacements.
