Product Description

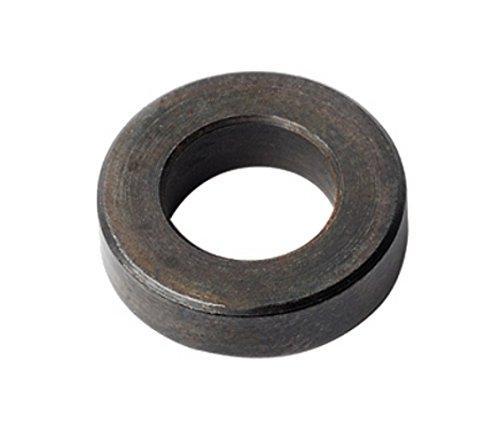

The CMT 541.522.00 Spacer is a precision-ground assembly component designed to fine-tune tool positioning on spindles and cutter head systems. With an outer diameter of 21mm, a bore diameter of 12mm, and a plate thickness of 3.18mm, this compact spacer delivers consistent, repeatable spacing that keeps your tooling setup accurate and stable. Whether you are stacking cutters to reach a desired cutting width or adjusting the lateral position of a tool on a spindle, this CMT spacer gives you precise control over your assembly configuration.
Key Features
- Outer Diameter of 21mm - fits standard cutter head and spindle assemblies within that diameter range, ensuring a secure and stable seat with no unwanted play.
- Bore Diameter of 12mm - sized to slide cleanly over a 12mm arbor or spindle shaft, providing reliable centering so your tooling stays true during operation.
- Plate Thickness of 3.18mm - offers a specific, consistent offset that lets you dial in exact tool positioning without guesswork or shimming with non-standard materials.
- Precision-ground construction - tight dimensional tolerances mean the spacer contributes to accurate, repeatable results every time you reassemble your tooling setup.
- Designed for tooling assembly use - purpose-built as a spacer component, it integrates directly into cutter head and spindle configurations, reducing improvisation and keeping your assembly professional and reliable.
Why This Product
- When precise lateral tool positioning is critical, a purpose-built spacer with exact dimensions (21mm outer diameter, 12mm bore, 3.18mm thickness) eliminates the guesswork that comes with improvised shims or non-standard components.
- The specific 3.18mm plate thickness gives woodworkers and machinists a defined, repeatable offset - ideal for stacking multiple cutters to a desired combined width on the same spindle or arbor.
- The 12mm bore and 21mm outer diameter combination is sized to work within common cutter head assembly configurations, making it a natural fit when building or reconfiguring a multi-piece tooling stack.
- CMT tooling components are engineered to work together as a system, so using a CMT spacer in your CMT cutter head setup helps maintain the dimensional integrity the entire assembly was designed around.
Specifications
- Manufacturer Part Number: 541.522.00
- Brand: CMT Orange Tools
- Diameter: 21mm
- Bore Diameter: 12mm
- Plate Thickness: 3.18mm
- Product Type: Spacer for assembly
Approved Applications
- Adjusting tool position on a spindle or arbor
- Stacking cutter heads to achieve a desired combined cutting width
- Cutter head assembly and reconfiguration
Frequently Asked Questions
What are the exact dimensions of this spacer?
This spacer has an outer diameter of 21mm, a bore (inner) diameter of 12mm, and a plate thickness of 3.18mm. These three dimensions determine whether it will fit your specific spindle and cutter head assembly.
What is this spacer used for?
This component is a spacer for assembly use. Its primary purposes include adjusting the lateral position of a tool on a spindle shaft and stacking multiple cutters together to reach a target combined cutting width.
Will this spacer fit a 12mm arbor?
Yes - the bore diameter of this spacer is 12mm, which means it is designed to slide over a 12mm arbor or spindle shaft for a properly centered fit within your tooling assembly.
Can this spacer be used with cutter head systems from other manufacturers?
The source data identifies this as a CMT assembly component. Its suitability for use with non-CMT tooling depends entirely on whether the other system shares compatible 12mm bore and 21mm outer diameter tolerances - always verify dimensional compatibility before use.
