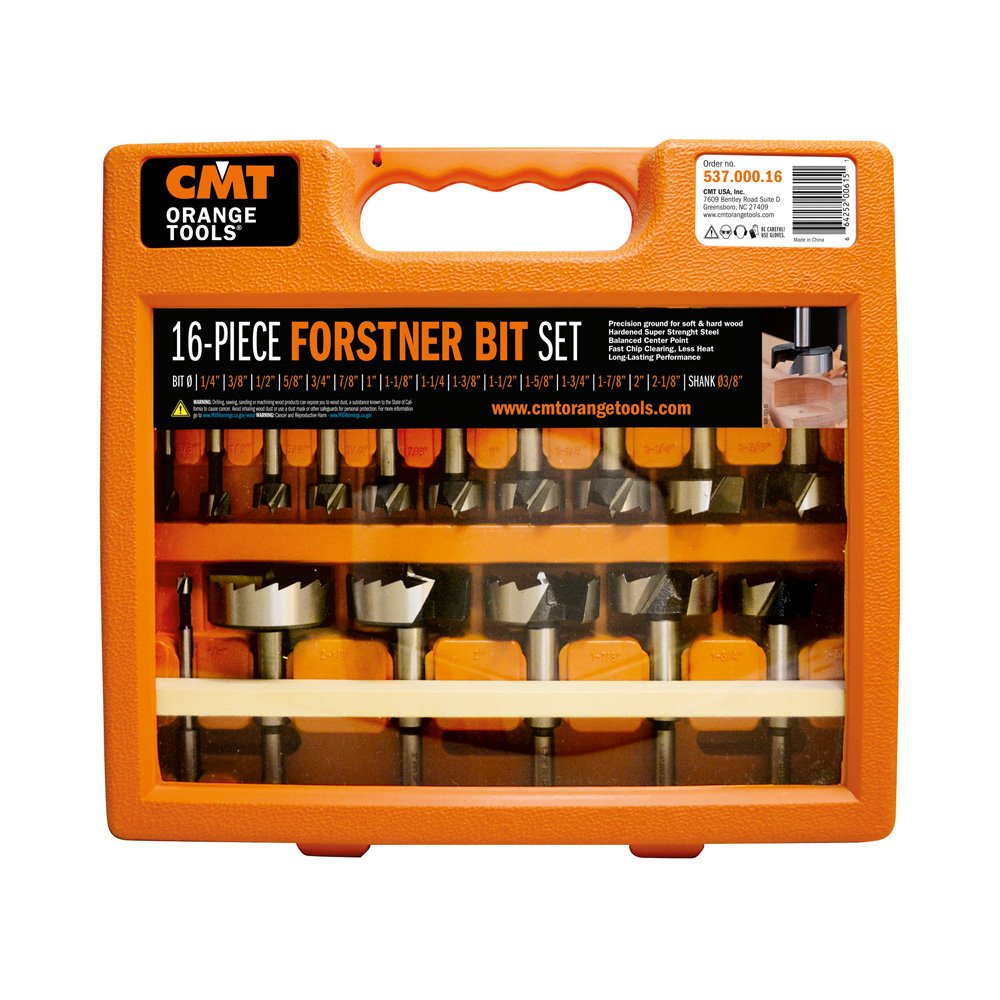

CMT 537.000.16 Forstner Bit Set by CMT is a professional-grade 16-piece boring bit collection designed to handle the full spectrum of flat-bottom hole drilling tasks in wood and wood-based panel materials. Spanning diameters from 1/4" all the way to 2 1/8", this right-hand rotation set gives woodworkers, cabinetmakers, and furniture builders a single solution for hinge installation, counterboring, pocket drilling, and precision through-hole work. Each bit features a 3/8" shank and a stagger tooth geometry on larger diameters, producing clean entry points, straight sidewalls, and perfectly flat bottoms across hardwood, softwood, plywood, MDF, and chipboard.

Key Features

• 16-piece comprehensive set covering 1/4" through 2 1/8" - gives woodworkers every commonly needed diameter in a single organized kit, eliminating the need to source bits individually
• High-performance stagger tooth design on larger-diameter bits - shears material more aggressively for sharper entry, straighter sidewalls, and cleaner flat bottoms with minimal tear-out
• 3/8" shank on every bit - provides a single consistent chuck setup compatible with drill presses, electric drills, and cordless drills without adapter changes
• Right-hand rotation (RH) - matches the standard forward drive direction of virtually all common drilling equipment for straightforward, no-adjustment use
• 2 spurs per bit - score the wood fibers cleanly ahead of the main cutter, producing accurate hole diameters and reducing splintering on entry
• Special steel (SP) construction - delivers the hardness and edge retention needed for repeated use in both solid wood and engineered panel materials
• Organized plastic storage box included - keeps all 16 bits protected, sorted, and ready to grab, reducing setup time between operations

Why This Product

• One set covers the complete range from 1/4" to 2 1/8" in graduated steps - meaning a single purchase equips a shop for virtually any flat-bottom boring task from small pocket holes to large hinge cups without gaps in coverage
• The stagger tooth geometry on larger diameters addresses one of the most common frustrations with forstner-style bits - rough, torn edges on wider holes - by actively shearing rather than scraping the wood fibers
• A uniform 3/8" shank across all 16 bits means the set works with drill press chucks, electric drill chucks, and cordless drill chucks without needing a separate adapter for oversized cutters, saving time on the job
• Compatibility with both stationary and handheld drilling equipment makes this set practical for shop use as well as on-site cabinetry and millwork installation where a full drill press may not be available

Specifications

• Model Number: 537.000.16
• Brand: CMT Orange Tools
• Diameter Range: 1/4" - 2 1/8"
• Total Length: 3-9/16"
• Shank Diameter: 3/8"
• Rotation: Right-Hand (RH)
• Number of Spurs: 2
• Number of Teeth: 2
• Material: SP (Special Steel)
• Quantity: 16 pieces

Approved Applications

• Flat-bottom hole drilling in solid wood and panel products
• Hinge cup installation and concealed hinge boring
• Counterboring for fastener heads and plugs
• Pocket drilling in cabinetry and furniture construction

What's Included

• 1/4" Forstner Bit with 3/8" shank
• 3/8" Forstner Bit with 3/8" shank
• 1/2" Forstner Bit with 3/8" shank
• 5/8" Forstner Bit with 3/8" shank
• 3/4" Forstner Bit with 3/8" shank
• 7/8" Forstner Bit with 3/8" shank
• 1" Forstner Bit with 3/8" shank
• 1 1/8" Forstner Bit with 3/8" shank
• 1 1/4" Forstner Bit with 3/8" shank
• 1 3/8" Forstner Bit with 3/8" shank
• 1 1/2" Forstner Bit with 3/8" shank
• 1 5/8" Forstner Bit with 3/8" shank
• 1 3/4" Forstner Bit with 3/8" shank
• 1 7/8" Forstner Bit with 3/8" shank
• 2" Forstner Bit with 3/8" shank
• 2 1/8" Forstner Bit with 3/8" shank
• Plastic storage and organization box
