Product Description
The CMT 992.101.EOC25 Kinetic Dust Extractor is a precision-engineered dust and chip extraction attachment designed to connect directly to CNC chuck systems equipped with DIN6388/EOC25 collets. With a 100mm diameter and right-hand rotation, this kinetic dust extractor captures airborne particles and debris at the source - right at the cutting tool - keeping your machining center cleaner, your workspace safer, and your workpiece visibility clear throughout the cut. Designed for CNC routing operations, it addresses one of the most persistent challenges in professional CNC environments: controlling fine dust and chip accumulation before it spreads through the work area.
Key Features
- Compatible with DIN6388/EOC25 collet chucks - mounts directly to existing chuck systems without adapters, enabling fast integration into CNC machining centers already equipped with EOC25 collets.
- 100mm diameter extraction body - provides wide coverage around the cutting zone, capturing chips and dust from a broad area directly at the tool for more thorough source extraction.
- Right-hand (RH) rotation design - engineered to match standard right-hand spindle rotation on CNC machining centers, ensuring proper kinetic airflow behavior and extraction efficiency during operation.

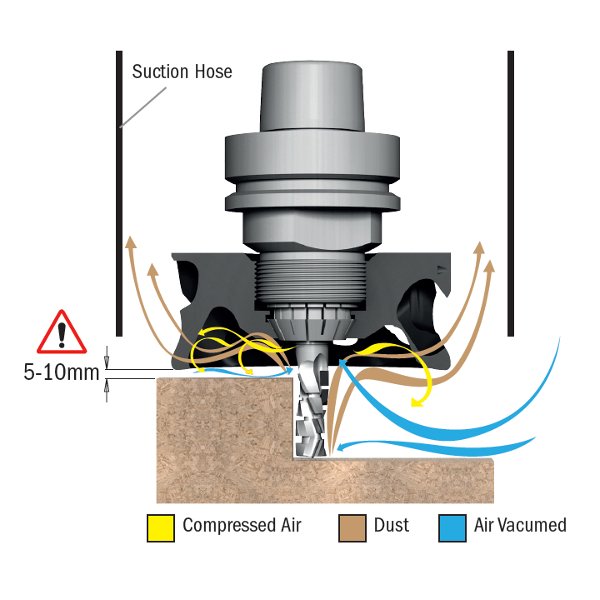

- Kinetic dust extraction at the cutting tool - uses the rotational energy of the spindle to draw dust and chips away from the cut zone, reducing airborne particulate without requiring a separate powered extraction nozzle.
Why This Product
- Source-point dust control for CNC routing - by extracting at the tool rather than from a distant collection point, the kinetic design intercepts dust and chips before they disperse into the surrounding work environment, improving air quality and reducing cleanup time.
- Purpose-built for EOC25 chuck systems - the DIN6388/EOC25 collet compatibility means this extractor is a direct-fit solution for CNC setups already using that chuck standard, eliminating the need for custom fitment or workarounds.
- Supports cleaner, safer CNC operation - reducing airborne dust during cutting helps maintain better visibility at the workpiece and lowers the concentration of fine particles in the operator environment, supporting both precision and safety goals.
- Passive kinetic operation - the extractor works from the spindle's own rotational energy, meaning no separate motor or power connection is required for the extraction mechanism itself.
Specifications
- Manufacturer Part Number: 992.101.EOC25
- Brand: CMT Orange Tools
- Diameter: 100mm
- Rotation: RH (Right-Hand)
- Compatible Collet Standard: DIN6388/EOC25
- Product Type: Kinetic Dust Extractor for Chucks
- Category: Router Cutter
Frequently Asked Questions
What type of chuck system is this dust extractor compatible with?
This kinetic dust extractor is specifically designed for chuck systems that use DIN6388/EOC25 collets. It is not a universal fit and is intended for CNC machining centers equipped with that specific collet standard.
What does "kinetic" mean in the context of this dust extractor?
The term "kinetic" refers to the fact that the extractor uses the rotational energy of the CNC spindle itself to generate the airflow needed for dust and chip extraction. This means the extraction mechanism is driven by spindle rotation rather than by a separate powered source.
What is the diameter of the CMT 992.101.EOC25 Kinetic Dust Extractor?
The extractor has a diameter of 100mm, providing coverage around the cutting tool zone on compatible chuck systems.
Is this extractor designed for right-hand or left-hand spindle rotation?
This model is designed for right-hand (RH) rotation, which is the standard spindle direction on most CNC machining centers. Make sure your spindle rotation matches before installing this extractor.
