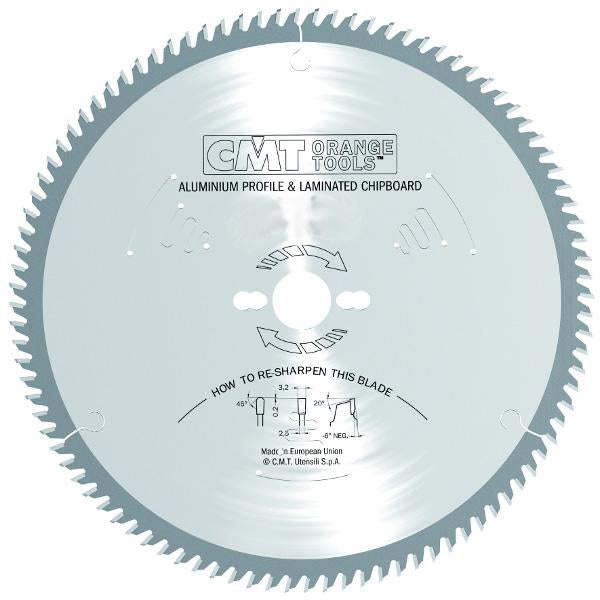

CMT Orange Tools, 296.160.56H, 296-297-Series, 160mm Non Ferrous PVX and Melamine Saw Blade
Application: For chip-free scoring on plastic-laminated panels.
Machines: Horizontal and vertical sizing machines equipped with scoring device not allowing for cutting depth adjustment.
Material: Single or double-sided plastic-laminated panels, MDF.
| Diameter mm |
160 |
| Bore Diameter mm |
20 |
| Pin hole |
2/6/32 |
| Number of cutting edges |
56 |
| Kerf thickness mm |
2,2 |
| Plate thickness |
1,6 |
| Hook angle |
-6° |
| Type of grind |
TCG |
| Teeth height mm |
6 |
| CHROMIUM ISO grade |
K10 |
| Hardness (HV10) |
1.765 |
| Transverse rupture strength (N/mm2) |
2.150 |
Warning: it is recommended to use a liquid lubricant. Wax stick for lubrication NOT RECOMMENDED.
