- Diameter 6"
- Bore diameter 5/8"
- Number of cutting edges 20 + 20
- Hook Angle -12
- Type of grind ATB 20 + FLAT

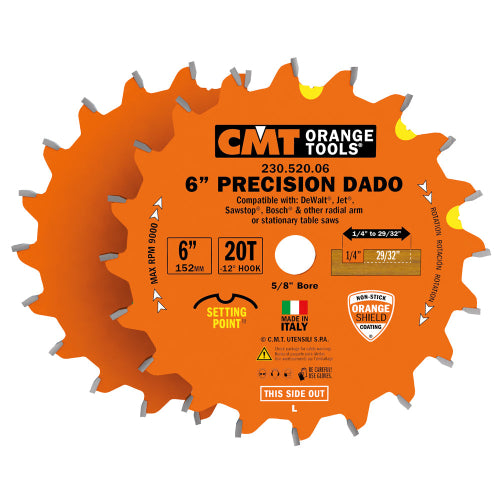

CMT Orange Tools, 230.520.06 Precision Dado 6" includes
- Left Outside Blade 6” (qty: 1)
- Right Outside Blade 6” (qty: 1)
- Chippers 1/8” (qty: 3)
- Spacers 1/16” (qty: 3)
- Shims 0.004” (qty: 5)
- Shim 0.008” (qty: 1)
- Mag. Shim 0.012” (qty: 1)
- Mag. Shim 0.020” (qty: 1)
- New Setting Points for chippers alignment.
- For flat bottom grooves & virtually splinter-free cuts in solid wood, laminates & melamine, veneer plywood.
- Includes shims (plastic & magnetic) and plastic ‘‘lock spacers’’ set for micro-thin adjustability.
- Orange Shield Coating protect from heat, gumming and corrosion.
