CMT Heavy Duty Solid Surface Blade - 10" x 5/8" Bore, 72-Tooth MTCG is a professional-grade circular saw blade engineered for demanding cutting applications in solid surface panels, thick plastics, laminates, and panel materials. The Modified Triple Chip Grind (MTCG) tooth geometry delivers swirl-free and burn-free results on dense, chip-prone materials - making it the go-to blade for fabricators and finish carpenters who require clean, precise cuts without rework. Built with a 0 deg. cutting angle and 72 carbide teeth, this CMT blade performs at up to 7,600 RPM on radial arm saws, table saws, and special saws.

Key Features

• Modified Triple Chip Grind (MTCG) Tooth Geometry - a specialized tooth profile designed specifically for solid surface, laminate, and thick plastic materials, producing swirl-free and burn-free cuts that eliminate secondary finishing work.
• 72 Carbide Teeth - the high tooth count creates an exceptionally fine finish on each pass, reducing tearout and chipping on dense or brittle workpiece materials including plexiglass and vinyl.
• 0 deg. Cutting Angle - a neutral hook angle prevents the blade from grabbing or self-feeding through hard, dense solid surface panels, keeping cuts controlled and consistent.
• 0.126" Kerf Thickness with 0.098" Plate - the kerf-to-plate ratio provides lateral stability during heavy-duty cuts while minimizing material waste and heat buildup along the cut line.
• 7,600 Maximum RPM Rating - rated for the high-speed demands of radial arm saws and special production saws, allowing efficient throughput on solid surface fabrication work.
• HW (Hardmetal/Carbide) Tooth Material - carbide-tipped teeth resist wear on abrasive materials like solid surface and plexiglass, extending usable blade life between sharpenings.
• Orange Chrome Finish - the distinctive protective coating on the blade body helps resist build-up from adhesives, resins, and material residue, keeping the plate running clean during extended use.
• 10" Diameter with 5/8" Bore (15.88mm) - a standard 10-inch diameter and 5/8" arbor fit the most common table saw and radial arm saw configurations used in solid surface and millwork shops.

Why This Product

• Solid surface panels are notoriously difficult to cut cleanly - the MTCG tooth geometry is purpose-built for this material, producing swirl-free and burn-free results that meet the quality expectations of countertop fabricators and installers.
• At 72 teeth and a 0 deg. cutting angle, this blade handles laminate, thick plastic, plexiglass, vinyl, and panel materials with the same clean-cut performance - reducing the need to swap blades across different substrate types.
• With a 7,600 RPM rating, the blade is matched to the power and speed demands of radial arm saws, table saws, and special production saws - the machines most commonly used in shop environments where solid surface work is performed.
• The CMT orange chrome finish and carbide (HW) tooth material work together to protect against both material build-up and tooth wear, supporting longer service intervals on high-volume cutting operations.

Specifications

• Manufacturer Part Number: 223.672.10
• Brand: CMT Orange Tools
• Diameter: 10"
• Number of Teeth: 72
• Bore Diameter: 15.88mm (5/8")

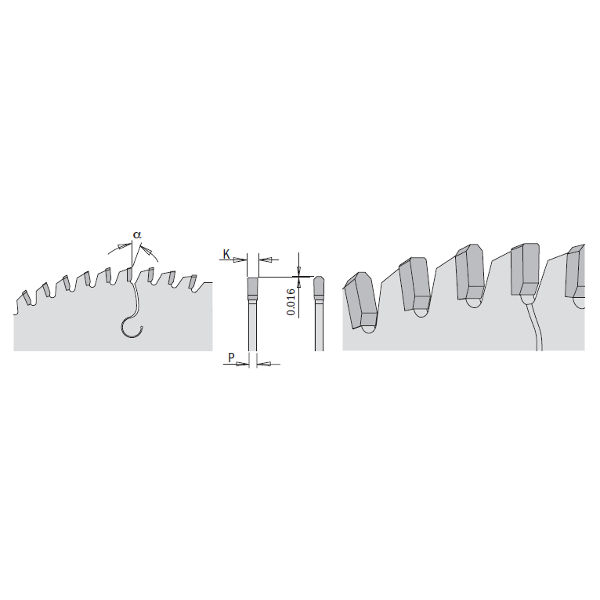

• Tooth Grind Type: MTCG (Modified Triple Chip Grind)
• Kerf Thickness: 0.126"
• Plate Thickness: 0.098"
• Cutting Angle: 0 deg.
• Maximum RPM: 7,600
• Tooth Material: HW (Hardmetal Carbide)
• Sharpening Type: MTCG

Approved Applications

• Heavy-duty cutting of solid surface panels with perfect, swirl-free and burn-free finishing
• Laminate cutting
• Solid wood and panel material cutting
• Thick plastic and plexiglass cutting
• Vinyl cutting
• Compatible machines: radial arm saws, table saws, and special saws
• Note: not recommended for use on miter saws

Frequently Asked Questions

Can this blade be used on a miter saw?

No. According to CMT, this blade is not recommended for use on miter saws. It is designed for use on radial arm saws, table saws, and special saws only.

What makes the MTCG grind better for solid surface cutting than a standard ATB grind?

The Modified Triple Chip Grind (MTCG) geometry is specifically suited to hard, brittle, and dense materials like solid surface, thick plastic, and plexiglass. It produces swirl-free and burn-free cuts that standard tooth profiles can struggle to achieve on these materials, reducing the risk of chipping or cracking.

What is the maximum RPM for this blade, and why does it matter?

This CMT blade is rated for a maximum of 7,600 RPM. Always verify that your saw's RPM does not exceed this rating before use. Running a blade beyond its rated speed is unsafe and can result in blade failure.

Is this blade suitable for cutting vinyl and plexiglass in addition to solid surface?

Yes. In addition to solid surface panels, this blade is listed as suitable for laminate, solid wood, panel material, plastic, solid surface, thick plastic, plexiglass, and vinyl - making it a versatile option for shops that work across multiple substrate types.
