The CMT 225.060.08 Non-Ferrous Metal and Melamine Saw Blade is a heavy-duty 8-1/2 in. x 5/8 in. circular saw blade engineered for precision cutting in aluminum, brass, copper, PVC, and other non-ferrous metals. Featuring a 60-tooth Triple Chip Grind (TCG) geometry and a -7 deg. negative hook angle, this blade is purpose-built to prevent material grabbing and deliver clean, burr-free results in both thick-walled and thin-walled extrusions. Whether you are cross-cutting aluminum profiles on a miter saw or ripping brass stock on a table saw, this CMT blade offers the tooth configuration and cutting geometry that non-ferrous metalworking demands.

Key Features

• 60-Tooth Triple Chip Grind (TCG) Geometry - the alternating flat and chamfered tooth pattern shears cleanly through non-ferrous metals and PVC without chipping, producing smooth, professional-quality cut edges that require minimal finishing.
• -7 deg. Negative Hook Angle - pulls away from the workpiece rather than aggressively biting into it, reducing the risk of kickback and material grabbing when cutting aluminum, copper, or brass profiles.
• 8-1/2 in. Diameter with 60 Teeth - a high tooth count on a compact-diameter blade means more teeth in contact per inch of cut, resulting in finer, cleaner cuts through both thick-walled and thin-walled extrusions.
• HW (Hard Metal / Tungsten Carbide) Tooth Material - carbide-tipped teeth maintain a sharp cutting edge through extended use in abrasive non-ferrous metals, extending blade service life compared to standard steel teeth.
• 0.122 in. Kerf with 0.100 in. Plate - the kerf-to-plate ratio provides adequate side clearance to prevent binding in the cut while minimizing material waste during each pass.
• 9,000 Maximum RPM Rating - rated for high-speed operation on radial arm saws, miter saws, table saws, and special saws, giving you flexibility across multiple machine types in a professional shop environment.
• 5/8 in. Bore (15.88 mm) - standard arbor size fits directly onto most miter saws, table saws, and radial arm saws without requiring adapters, simplifying blade changes and setup time.

Why This Product

• Designed specifically for heavy-duty cutting of thick-walled aluminum, copper, brass, and PVC extrusions - the TCG tooth geometry and negative hook angle work together to handle demanding non-ferrous applications where standard woodcutting blades would grab, chatter, or produce ragged edges.
• Rated to 9,000 RPM and compatible with radial arm saws, miter saws, table saws, and special saws - this single blade transitions easily between machine types, making it a practical choice for shops that need one reliable non-ferrous blade across multiple setups.
• The 60-tooth count in an 8-1/2 in. diameter delivers a high teeth-per-inch ratio that is well suited for both thick-walled and thin-walled extrusions, giving fabricators a versatile cutting solution without switching blades between material thicknesses.
• Carbide (HW) tipped teeth resist wear in abrasive non-ferrous metals - translating to fewer blade changes, lower long-term tooling costs, and consistent cut quality across production runs in aluminum, brass, copper, and PVC cutting applications.

Specifications

• Manufacturer Part Number: 225.060.08
• Brand: CMT Orange Tools
• Diameter: 8-1/2 in.
• Bore Diameter: 5/8 in. (15.88 mm)
• Number of Teeth: 60
• Tooth Grind Type: TCG (Triple Chip Grind)
• Hook Angle: -7 deg.
• Kerf Thickness: 0.122 in.
• Plate Thickness: 0.100 in.
• Maximum RPM: 9,000
• Tooth Material: HW (Hard Metal / Tungsten Carbide)

Approved Applications

• Heavy-duty cutting of thick-walled non-ferrous metal extrusions
• Cutting thin-walled non-ferrous metal extrusions
• Aluminum cutting on miter saws, radial arm saws, table saws, and special saws
• Brass and copper cutting
• PVC cutting
• Non-ferrous metal fabrication and production crosscutting

Frequently Asked Questions

What materials can this saw blade cut?

This blade is designed to cut aluminum, brass, copper, PVC, and non-ferrous metals. It performs excellently on thick-walled extrusions and is also suitable for thin-walled extrusions. It is not intended for use on ferrous metals such as steel or iron.

Which machines is this blade compatible with?

This 8-1/2 in. blade with a 5/8 in. bore is compatible with radial arm saws, miter saws, table saws, and special saws. Always confirm your saw accepts an 8-1/2 in. blade diameter and a 5/8 in. arbor before installation.

Why does this blade use a negative hook angle instead of a positive one?

The -7 deg. negative hook angle causes the tooth to pull away from the workpiece during the cut rather than aggressively feeding into it. This is critical for non-ferrous metals because a positive hook angle can cause the blade to grab the material, creating dangerous kickback or rough, torn edges. The negative geometry produces a controlled, stable cut in aluminum, copper, brass, and PVC.

What does TCG (Triple Chip Grind) tooth geometry mean, and why does it matter for non-ferrous cutting?

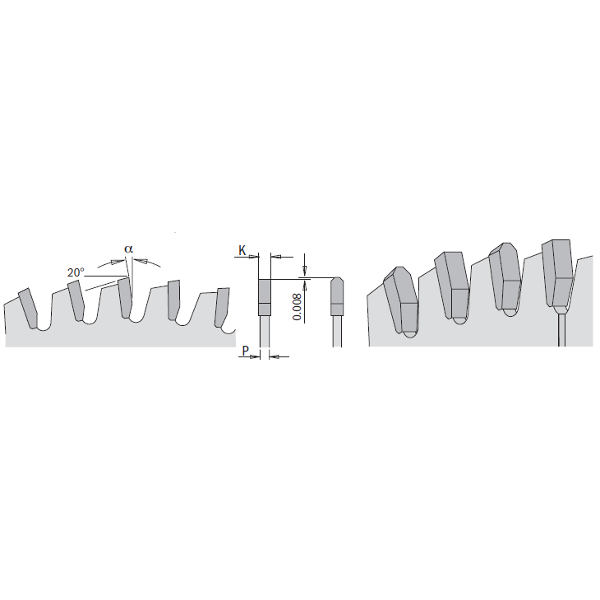

TCG stands for Triple Chip Grind, a tooth pattern that alternates between a flat-top tooth and a chamfered (angled) tooth. This configuration allows the chamfered tooth to score the material first and the flat tooth to clear the chip cleanly, producing smooth, burr-free edges in hard or brittle non-ferrous materials like aluminum and brass. It also helps prevent tooth chipping when cutting harder non-ferrous alloys.
