The Simpson Strong-Tie CC4.62-4.62 Triple 2X Beam, Triple 2X Column Cap is an engineered steel connector built to deliver powerful, reliable column-to-beam connections in wood construction. Featuring a robust seat design that extends bearing surface area beyond each side of the column, this column cap is purpose-built to distribute beam loads evenly while providing critical structural support at the connection point. Finished in Simpson Strong-Tie's signature gray paint and manufactured in the United States, the CC4.62-4.62 is ideal for demanding structural applications where load transfer integrity is non-negotiable.

Key Features

• Certified Welds - Engineered for confidence in strength and consistent load performance
• Increased Uplift Load Capacity - Enhanced ratings to meet earthquake and wind loading demands
• NDS-Compliant Bolt Spacing - Bolt placement meets National Design Specification code requirements for optimal performance
• Diamond Holes - Facilitate temporary fastening during installation for improved ease of use
• Extended Bearing Seat - The column cap seat provides additional bearing surface area that extends beyond each side of the column to help distribute beam loads effectively
• Gray Paint Finish - Simpson Strong-Tie gray paint provides a durable, consistent surface finish

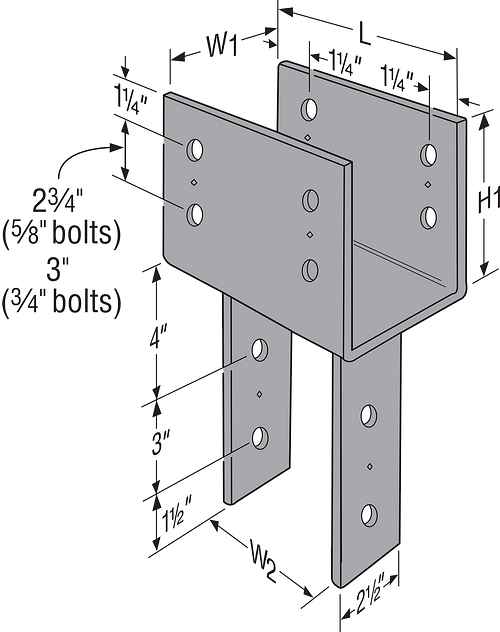

Specifications

• Model Number: CC4.62-4.62
• Finish: Simpson Strong-Tie Gray Paint
• Beam Width: 4 1/2 in.
• Post Size: (3) 2x4
• Dimension W1: 4 5/8 in.
• Dimension W2: 4 5/8 in.
• Length (L): 11 in.
• Height (H1): 6 1/2 in.
• Bolt Size: 5/8 in.
• Country of Origin: United States

Approved Applications

• Wood-frame construction requiring strong, code-compliant column-to-beam connections
• Structural applications subject to uplift forces from seismic (earthquake) loading
• Structural applications subject to uplift forces from wind loading
• Connections utilizing triple 2x beam and triple 2x column configurations
• Projects requiring NDS-compliant bolt spacing at connection points

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg.


Frequently Asked Questions

What beam and post sizes is the CC4.62-4.62 designed to work with?

The CC4.62-4.62 is designed for use with a triple 2X beam and a triple 2X column. It accommodates a beam width of 4 1/2 in. and features W1 and W2 dimensions of 4 5/8 in. each, with a post size of (3) 2x4.

How does the extended bearing seat on this column cap benefit my structure?

The column cap seat provides additional bearing surface area that extends beyond each side of the column, which helps distribute beam loads more effectively across the connection point. This design promotes even load transfer and greater structural integrity at the column-to-beam joint.

Is the CC4.62-4.62 suitable for use in high-wind or seismic zones?

Yes. The CC4.62-4.62 features increased uplift load capacity with enhanced ratings specifically intended to meet earthquake and wind loading demands, making it well suited for demanding structural applications in high-wind or seismic areas.

Does the CC4.62-4.62 meet building code requirements for bolt spacing?

Yes. The bolt placement on the CC4.62-4.62 complies with National Design Specification (NDS) code requirements for optimal performance, helping ensure the connection meets standard structural engineering guidelines.
