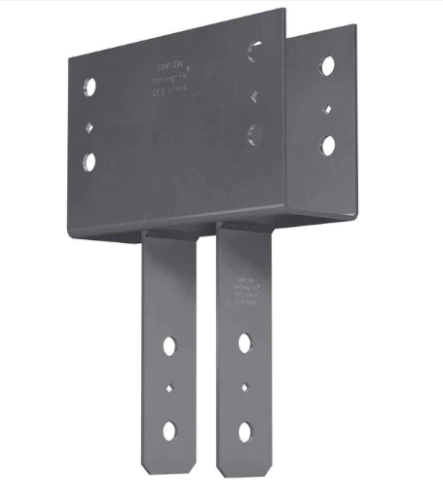

The Simpson Strong-Tie CC4.62-3.62 Triple 2X Beam, 4X Post Column Cap is an engineered steel connector designed to deliver reliable column-to-beam connections in wood-frame construction. Finished in Simpson Strong-Tie gray paint and manufactured in the United States, this column cap features a bearing seat that extends beyond each side of the column, distributing beam loads effectively and reinforcing the structural integrity of the connection. With certified welds, optimized bolt spacing, and enhanced uplift load capacity, the CC4.62-3.62 is a trusted solution for demanding residential and commercial wood construction applications.

Key Features

• Certified welds for confidence in strength and load performance
• Increased uplift loads to meet earthquake and wind loading requirements
• Bolt spacing meets NDS code requirements for optimal structural performance
• Diamond holes allow for convenient temporary fastening during installation
• Extended bearing seat provides additional surface area beyond each side of the column
• Helps distribute beam load evenly to support the structural connection
• Finished in Simpson Strong-Tie gray paint for durability
• Manufactured in the United States

Specifications

• Model Number: CC4.62-3.62
• Finish: Simpson Strong-Tie gray paint
• Beam Width: 4 1/2 in.
• Post Size: 4x4

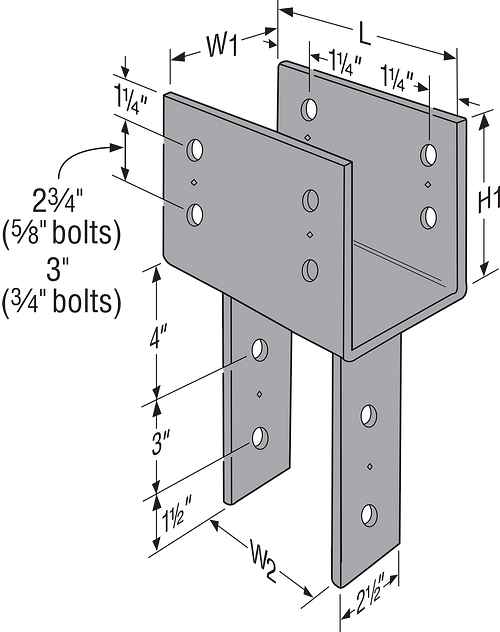

• Dimension W1: 4 5/8 in.
• Dimension W2: 3 5/8 in.
• Dimension L: 11 in.
• Dimension H1: 6 1/2 in.
• Bolt Size: 5/8 in.
• Material Gauge: 7 gauge (CC4.62 series)
• Country of Origin: United States

Approved Applications

• Column-to-beam connections in wood-frame residential construction
• Commercial wood-frame structural applications
• Deck and pergola post-to-beam connections
• Applications requiring enhanced uplift resistance in high-wind or seismic zones
• Connections requiring NDS code-compliant bolt spacing
• Triple 2X beam assemblies supported by a 4X post column

What's Included

• 1x Simpson Strong-Tie CC4.62-3.62 Column Cap

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg.
• For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Material
CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge

Frequently Asked Questions

What beam and post sizes is the CC4.62-3.62 designed to work with?

The CC4.62-3.62 is designed to connect a triple 2X beam (with a combined width of 4 1/2 in., dimension W1) to a 4x post with a width of 3 5/8 in. (dimension W2). The column cap has an overall length of 11 in. and a height of 6 1/2 in., making it compatible with standard 4x4 post sizes.

What bolt size is required for installation?

Installation requires 5/8 in. bolts. The bolt spacing on the CC4.62-3.62 is designed to meet NDS code requirements for optimal structural performance.

What features help this column cap perform in high-load conditions such as earthquakes or high winds?

The CC4.62-3.62 features increased uplift load capacity to meet earthquake and wind loading requirements, certified welds for confidence in strength and load performance, and an extended bearing seat that distributes beam load evenly beyond each side of the column to reinforce the structural connection.

What material and finish does the CC4.62-3.62 use?

The CC4.62-3.62 is constructed from 7 gauge steel and finished in Simpson Strong-Tie gray paint for durability. It also includes diamond holes that allow for convenient temporary fastening during installation.
