Diablo 10-Inch 30-Tooth Plywood Ripping Saw Blade delivers superior rip cuts through plywood, OSB, hardwoods, softwoods, and pressure-treated wood with an exclusive Tracking Point tooth design engineered to keep cuts straight and extend blade life well beyond conventional ripping blades. Designed by Diablo for use in both portable and stationary table saws, this 10 in. ripping blade combines TiCo Hi-Density carbide tips, a Super Thin Kerf design, and a Perma-SHIELD non-stick coating to reduce heat, minimize resistance, and produce accurate, clean rip cuts in demanding framing, roofing, remodeling, and concrete forming applications.

Key Features

• High-performance TiCo Hi-Density carbide tips - provide extreme durability and maximum cutting life so the blade stays sharp longer under heavy ripping workloads
• Tracking Point tooth design acts as a "rudder" to provide straight cuts and control carbide wear on the tooth for up to five times longer cutting life versus other blades - meaning fewer blade changes and more consistent results over time
• Tracking Point doubles the carbide surface area for greater impact resistance and double the durability in plywood ripping applications - reducing chipping and carbide loss when cutting dense sheet goods
• Tracking Point delivers extreme cutting efficiency in corded and cordless table and portable table saws - making this blade compatible with a wide range of job site setups
• Advanced anti-vibration design features laser cut stabilizer vents to trap noise and vibration, providing the ideal combination of stability and rigidity for precise, clean cuts - reducing operator fatigue and improving cut quality
• Laser-cut Super Thin Kerf Design (.094 in.) allows the blade to glide through wood materials offering less resistance and heat build-up for superior ease of cut, accuracy and long cutting life - especially valuable when running cordless saws where power conservation matters
• Perma-SHIELD non-stick aluminum alloy coating protects the blade against heat, gumming and corrosion - keeping the blade surface clean and extending service life even in resinous or pressure-treated lumber
• Tri-Metal Shock Resistant Brazing - a three metal brazing system provides a high performance shock absorber behind every tooth to withstand extreme impact for maximum durability, protecting tip integrity during aggressive ripping
• Computer-controlled Precision Tensioning keeps the blade flat for superior quality finish - reducing wobble and deflection for repeatable, accurate cuts across the full range of supported materials
• Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation on corded and cordless saws - contributing to longer bearing and blade life

Why This Product

• The only 10 in. ripping blade to include Tracking Point tooth design - giving framers, roofers, remodelers, and concrete formers a purpose-built advantage when sheathing walls, roofs, and subfloor applications with plywood and OSB
• Handles rip cuts ranging from 3/4 in. to 2-3/4 in. material thickness in plywood, OSB, hardwoods, softwoods, and pressure-treated wood - covering the full range of lumber and sheet goods encountered on most residential and light commercial job sites
• The combination of Super Thin Kerf and Perma-SHIELD coating means less drag, less heat buildup, and a blade that glides more smoothly - translating to cleaner cuts and reduced motor strain in both corded and cordless saws
• TiCo carbide tips coupled with Tri-Metal Shock Resistant Brazing and Computer-controlled Precision Tensioning work together to deliver a blade engineered for maximum durability and flat, stable performance over an extended cutting life

Specifications

• Brand: Diablo
• Diameter: 10 in.
• Teeth: 30 ATB
• Arbor: 5/8 in.
• Kerf: .094 in.
• Hook Angle: 15 deg.
• Plate: .071 in.
• Maximum RPM: 6000

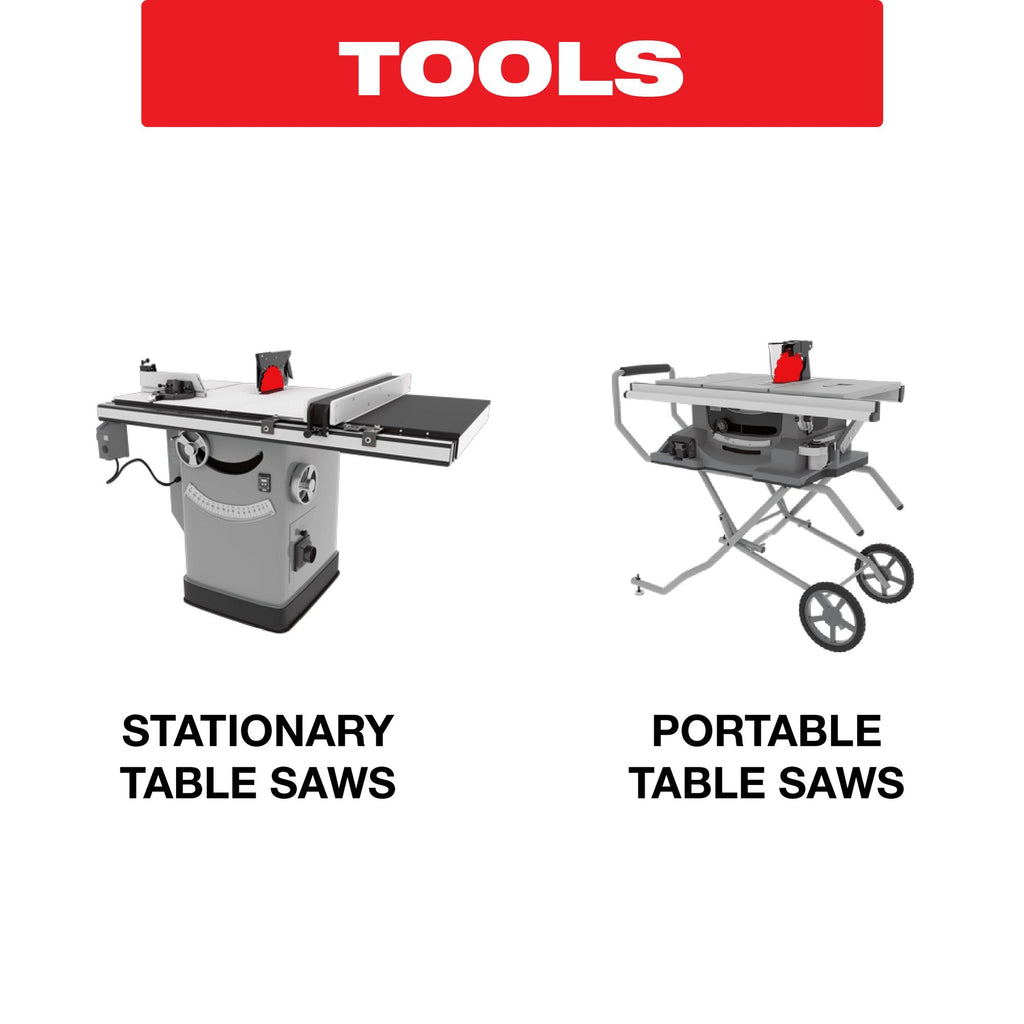

• Compatible Tools: Portable Table Saw; Stationary Table Saw
• Compatible Materials: Hardwoods; Softwoods; Pressure Treated; Plywood; OSB; Rip Wood
• Usage: Superior quality rip cuts (3/4 in. - 2-3/4 in.) in plywood, OSB, hardwoods, softwoods and pressure-treated wood
• Country of Origin: Italy

Available Pack Options

• D1030X: 1 Ea
• D1030X -10P: 10 Pk

Approved Applications

• Ripping plywood and OSB for wall and roof sheathing
• Ripping hardwoods and softwoods in portable and stationary table saw setups
• Cutting pressure-treated lumber for outdoor framing and decking applications
• Concrete forming work requiring precise, clean rips in plywood and sheet goods
• Remodeling and renovation projects involving dimensional lumber and engineered wood panels

Frequently Asked Questions

What makes the Tracking Point tooth design different from standard ripping blade teeth?

The Tracking Point tooth design acts as a "rudder" to guide the blade through cuts in a straight line while controlling carbide wear across the tooth face. It doubles the carbide surface area compared to conventional tooth designs, resulting in greater impact resistance and up to five times longer cutting life versus other blades in plywood ripping applications.

Is this blade compatible with cordless table saws?

Yes. The Super Thin Kerf design reduces resistance and heat buildup, and the Tracking Point design delivers extreme cutting efficiency specifically in both corded and cordless table saws and portable table saws, making it a strong choice for job sites where cordless tools are the primary setup.

What material thicknesses can this blade handle?

This blade is rated for superior quality rip cuts in material ranging from 3/4 in. to 2-3/4 in. thick, covering plywood, OSB, hardwoods, softwoods, and pressure-treated wood.

How does the Perma-SHIELD coating benefit the blade during use?

The Perma-SHIELD non-stick aluminum alloy coating protects the blade surface against heat, gumming, and corrosion. This is especially useful when cutting resinous woods or pressure-treated lumber, where pitch and chemical residue can build up quickly on uncoated blades and reduce cutting performance over time.
