Product Description

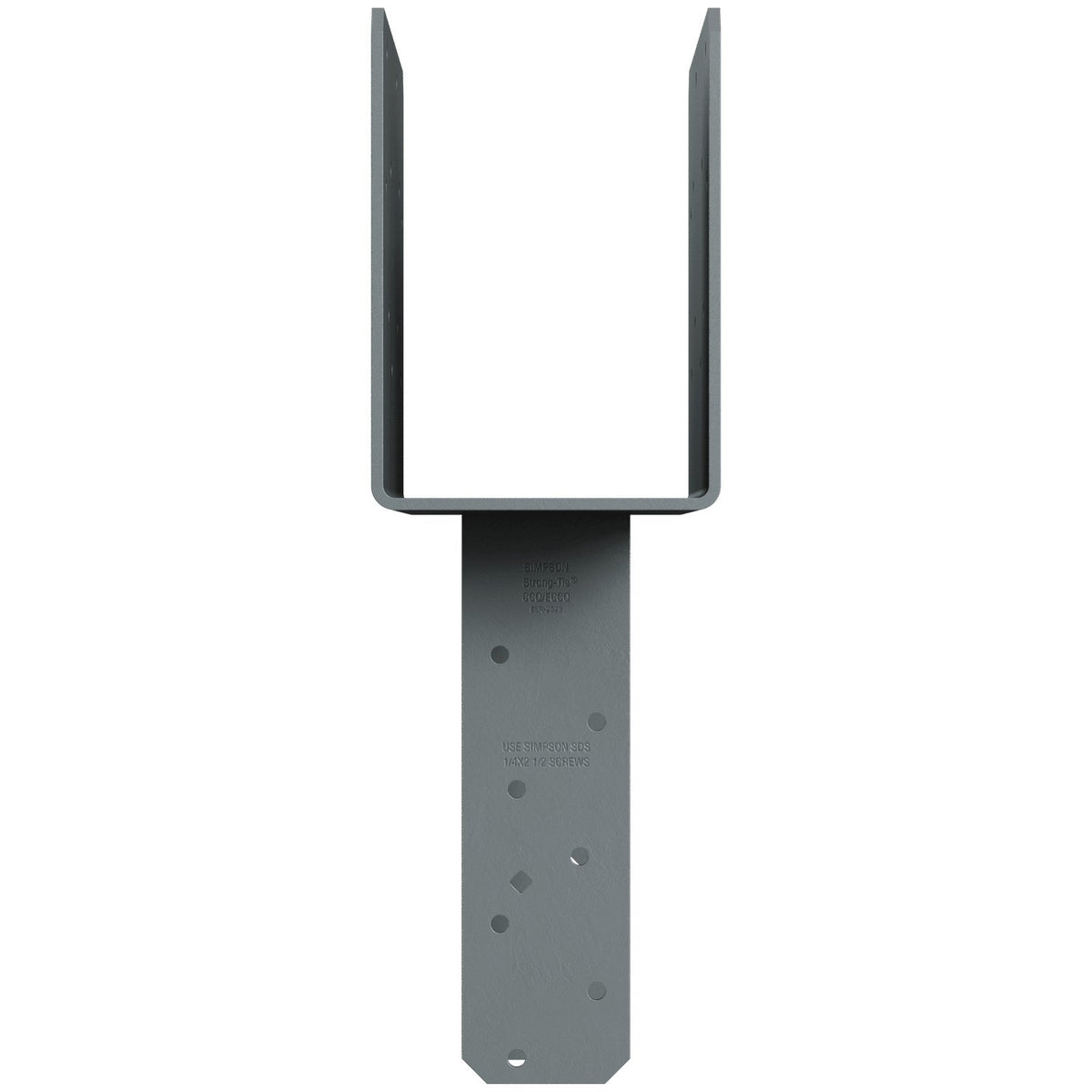

The Simpson CCQ4.62-3.62SDS CCQ Column Cap for Triple-2x Beam, 4x Post with Strong-Drive SDS Screws by Simpson Strong-Tie is engineered to deliver strong, reliable column-beam connections in wood construction. Designed for a triple 2x beam and 4x post configuration, this column cap features an extended bearing seat that distributes load beyond each side of the column, and uses Strong-Drive SDS Heavy-Duty Connector screws for fast installation with attachment to a greater net section area of the column than standard bolt attachment normally entails.
Key Features
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening

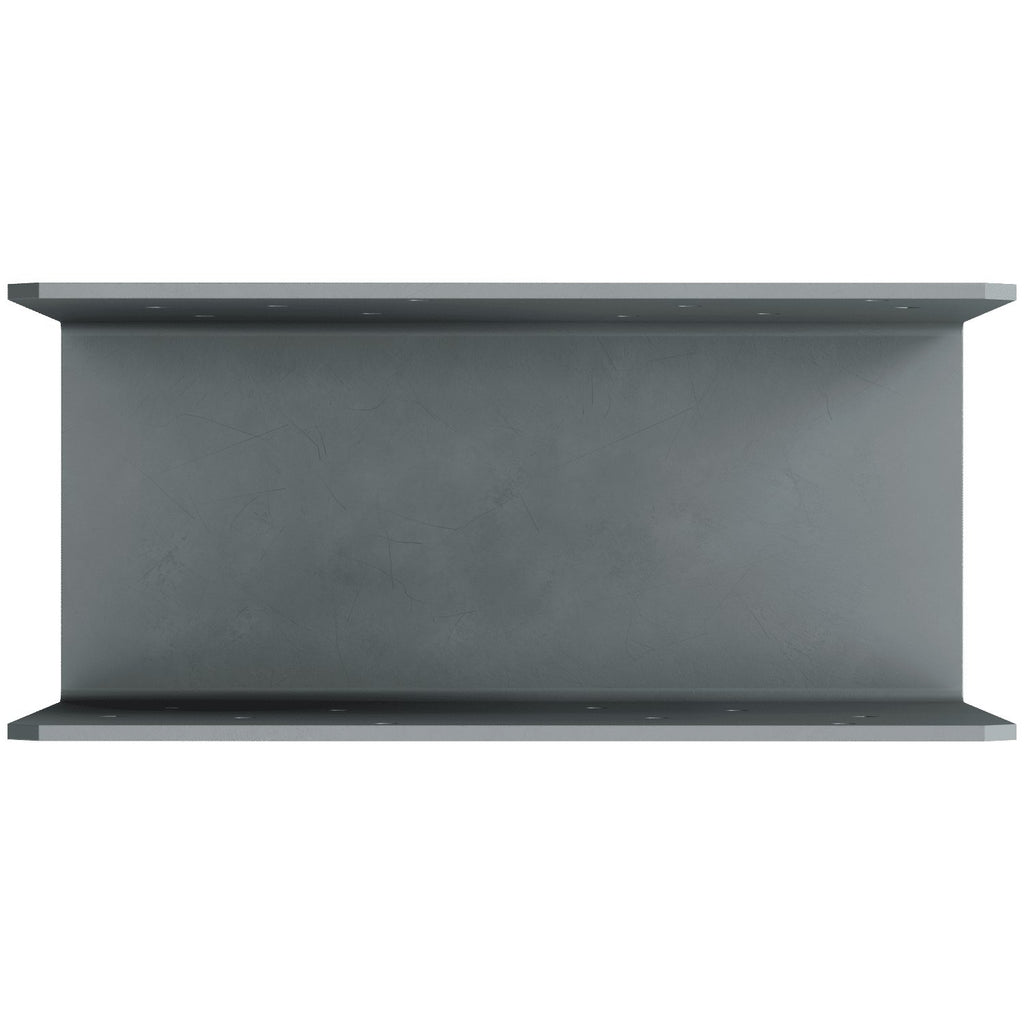

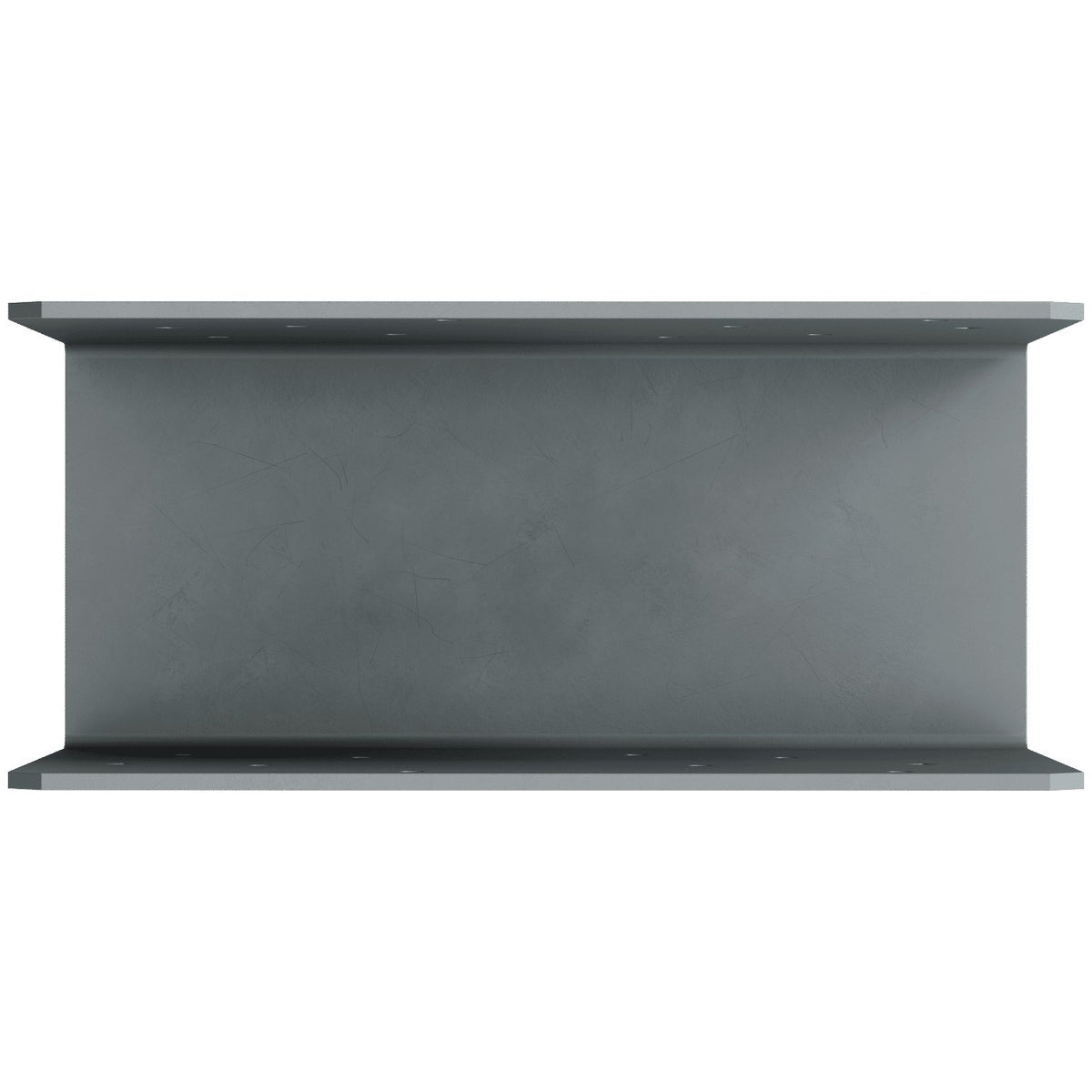

- Extended bearing seat distributes load from the beam and supports the connection beyond each side of the column
- Beam width: 4-1/2 in.
- Nominal post size: 4x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
- Made in the United States
Specifications
- MPN: CCQ4.62-3.62SDS
- Member Size: Triple 2x beam, 4x post
- Beam Width: 4-1/2 in.
- Width 1: 4-5/8 in.
- Width 2: 3-5/8 in.
- Length 1: 11 in.
- Height 1: 7 in.
- Nominal Post Size: 4x
- Gauge: 7-gauge steel
- Finish: Simpson Strong-Tie Gray Paint
- Coating: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
What's Included
- Includes (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212)
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners are required to install the CCQ4.62-3.62SDS, and are they included?
- Install with (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212), which are included with the column cap. Note that lag screws will not achieve the same load as the specified SDS screws.
- Why does the CCQ use SDS screws instead of standard through bolts?
- The Strong-Drive SDS Heavy-Duty Connector screws provide a lower profile than standard through bolts and allow attachment to a greater net section area of the column than a bolt attachment normally entails, contributing to faster installation and strong load performance.
- Is this column cap suitable for high-wind or seismic applications?
- Yes. Uplift loads have been increased for earthquake or wind loading, making the CCQ4.62-3.62SDS appropriate for projects where enhanced resistance to these forces is required.
- What is the purpose of the diamond holes on the CCQ column cap?
- The diamond holes are designed for temporary fastening during installation, allowing the column cap to be held in position while permanent SDS screws are driven in place.
Related Products
- CCOQ - Column Cap Only (no straps), available for field-welding to pipe or other columns; dimensions are the same as the CCQ
- ECCOQ - End Column Cap Legs Omitted Quick-Install, available for field-welding; dimensions are the same as the ECCQ
Note: Product dimensions and/or screw holes may differ from picture.
