Product Description

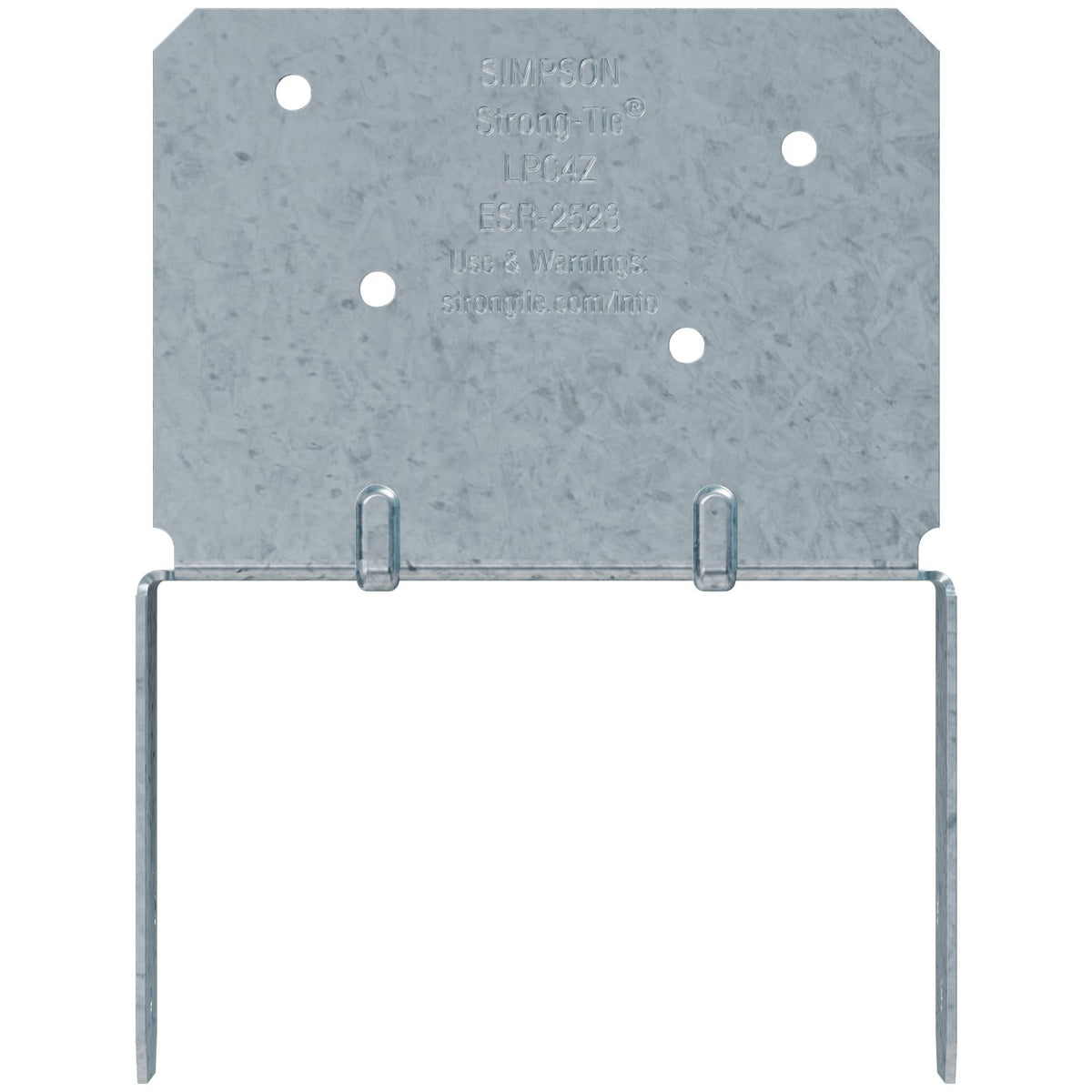

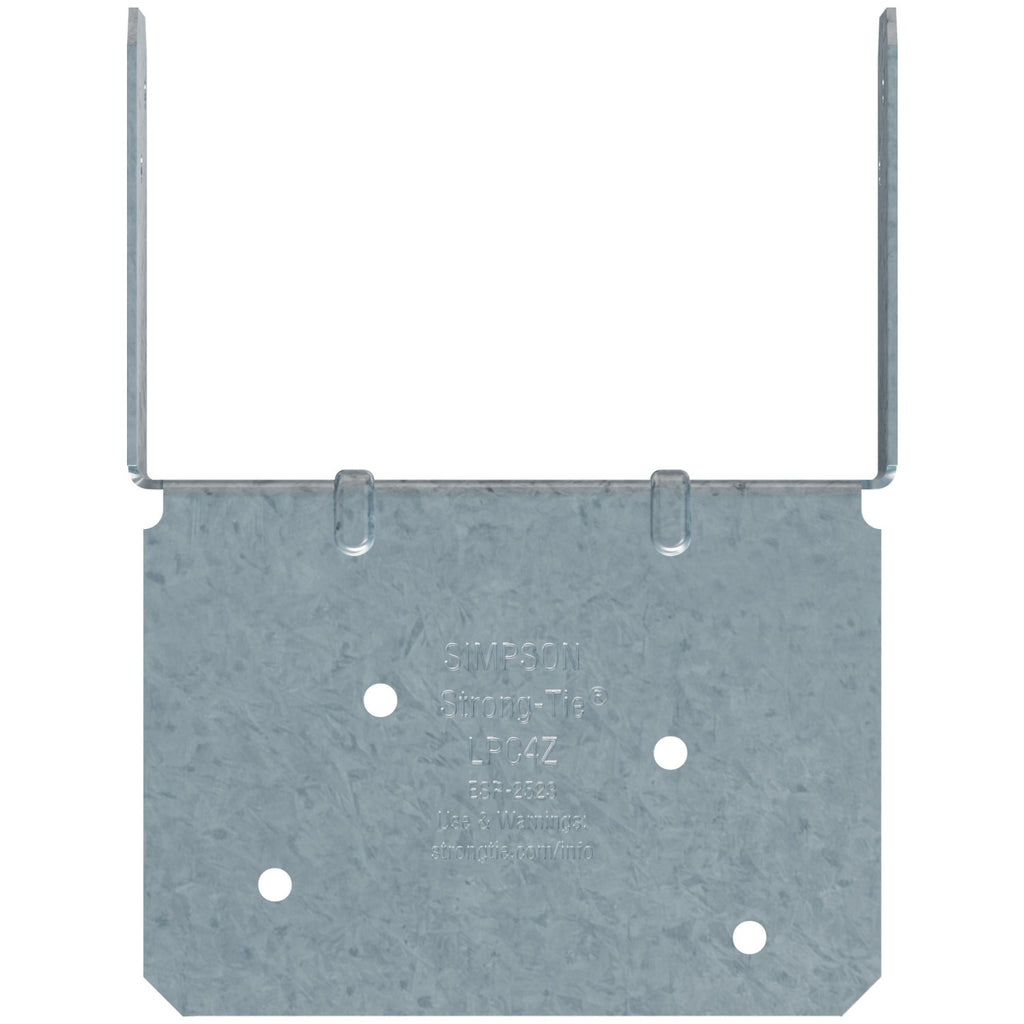

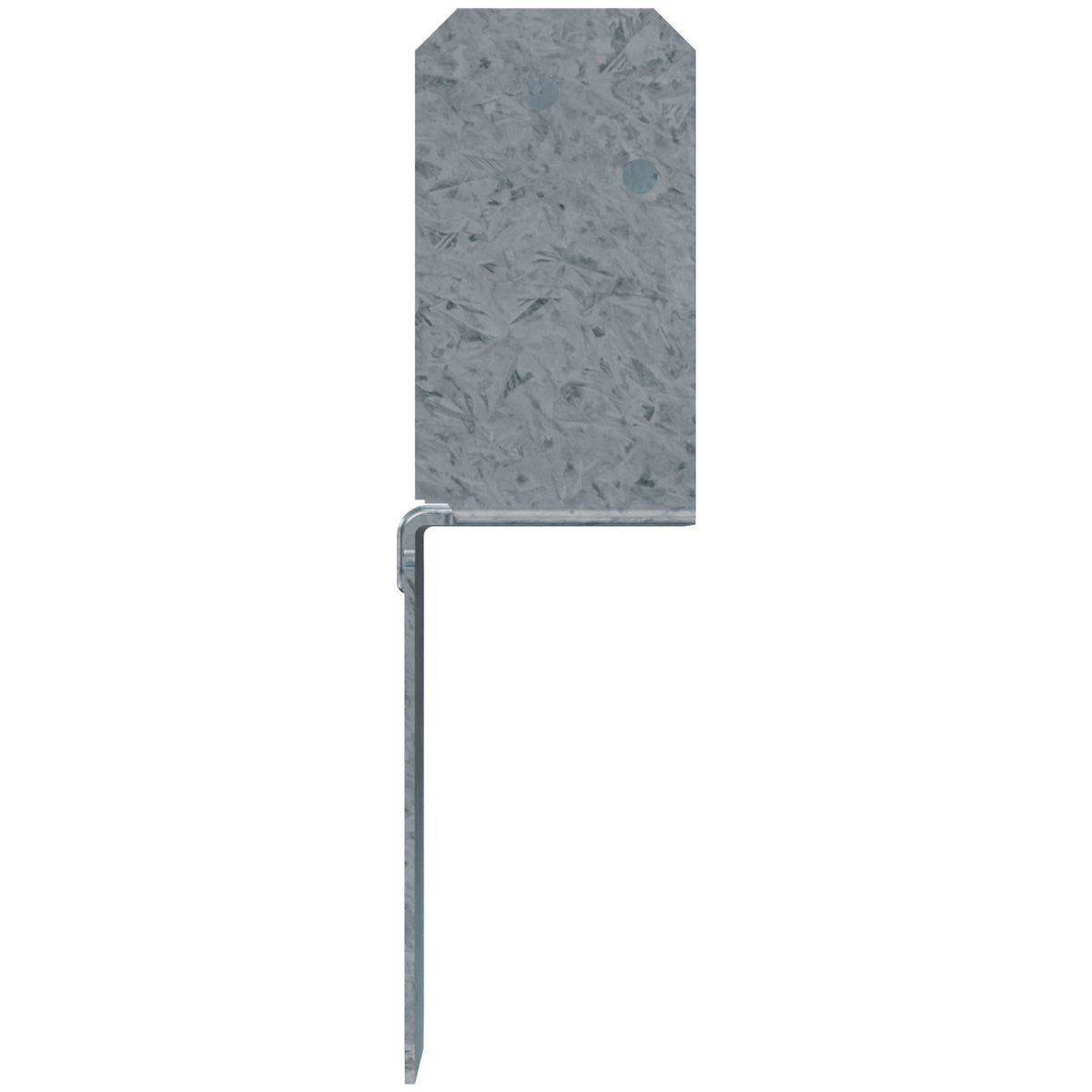

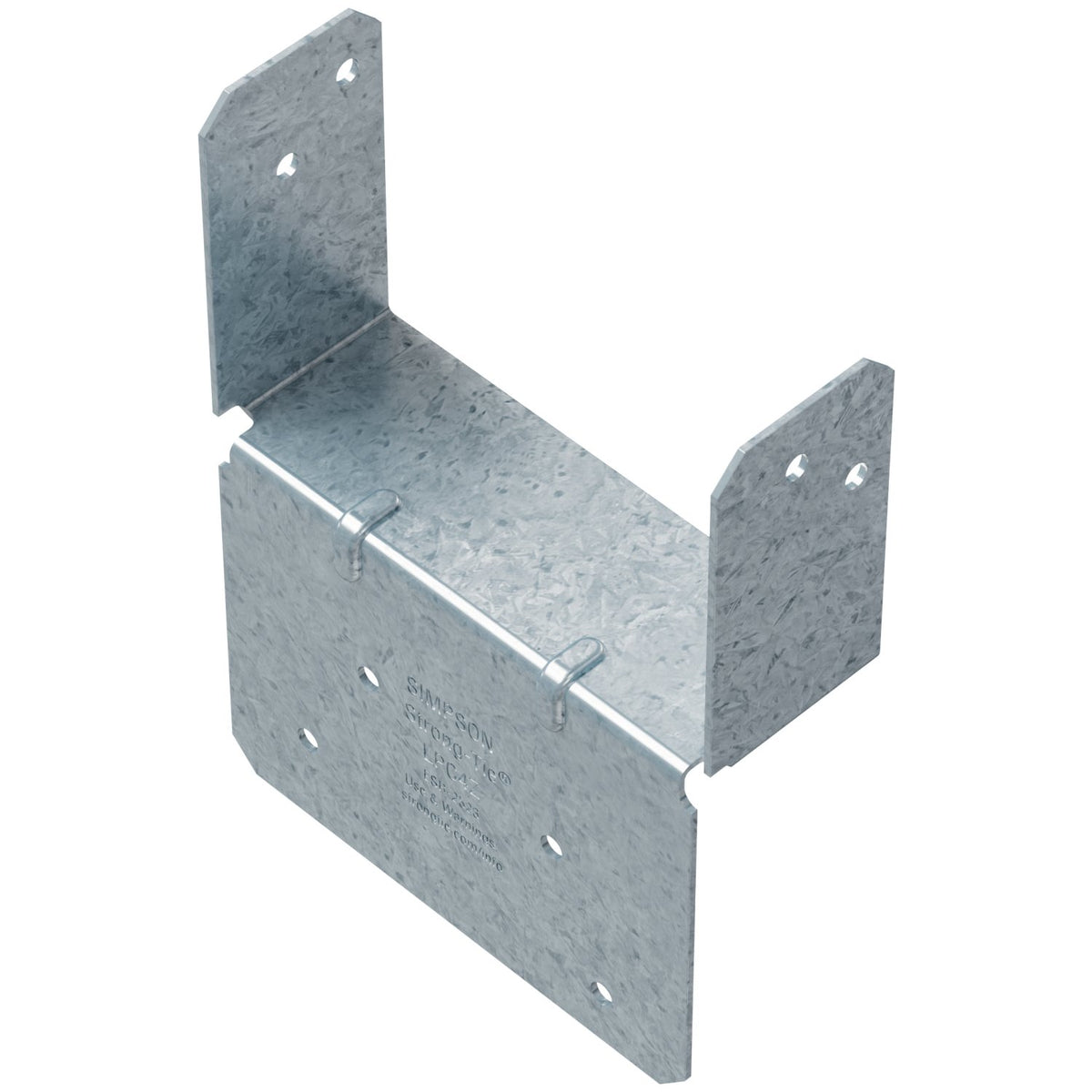

The Simpson Strong-Tie LPC4Z ZMAX Adjustable Post Cap is an 18-gauge steel connector engineered to create a strong, reliable connection between a 4x or 6x beam and a post. Built with Simpson Strong-Tie's ZMAX galvanized coating for enhanced corrosion resistance, this versatile post cap is equally suited for new construction and retrofit applications where dependable structural support is required. Its adjustable, universal design streamlines installation and delivers a connection that surpasses the strength of angled nailing or screw fastening.
Key Features
- Adjustable design allows greater connection versatility
- Always install in pairs; universal design eliminates need for rights and lefts
- Stronger than angled nailing or screw fastening; eliminates nailing into end grain
- Can be installed after beams have been put in place
- For use with nominal 4x or 6x lumber
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: LPC4Z
- Gauge: 18
- Coating/Finish: ZMAX
- Member Size: 4x or 6x
- Install With: 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws (sold separately)
- Width: 3-9/16 in.
- Length: 3-1/2 in.
- Country of Origin: United States
Approved Applications
- New construction post-to-beam connections using 4x or 6x lumber
- Retrofit installations on existing post-and-beam structures
- Exterior applications where exposure to moisture or treated wood requires enhanced corrosion resistance
- Structural support upgrades where angled nailing or end-grain fastening is not sufficient
Frequently Asked Questions
- What lumber sizes is the LPC4Z compatible with?
- The LPC4Z is designed for use with nominal 4x or 6x lumber, providing a versatile connection between a 4x or 6x beam and a post.
- Can this post cap be installed on an existing structure, or is it only for new construction?
- The LPC4Z is suitable for both new construction and retrofit applications. Its adjustable design allows it to be installed after beams have already been put in place, making it an ideal solution for upgrading or repairing existing connections.
- Why must the LPC4Z always be installed in pairs?
- Installing the LPC4Z in pairs ensures a balanced, structurally sound connection on both sides of the post and beam. The universal design eliminates the need for separate right-hand and left-hand versions, so any two units of the same model can be used together.
- What fasteners should be used with the LPC4Z?
- The LPC4Z should be installed with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws for a proper and code-compliant connection.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
