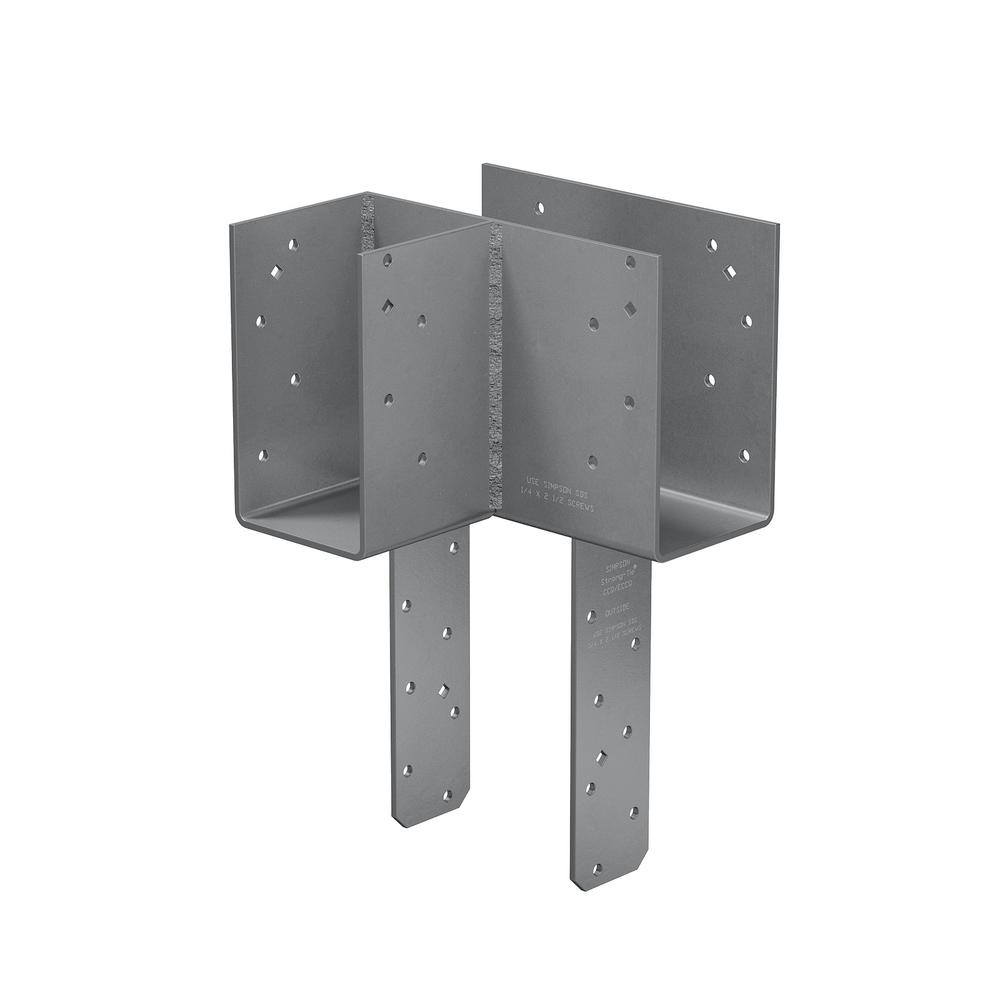

The Simpson Strong-Tie ECCLLQ444SDS L-Shape End Column Cap is engineered to deliver strong, reliable column-to-beam connections in end-of-beam applications where two beams intersect in an "L" formation on top of a supporting post or column. Built for nominal 4x main beam, 4x post, and 4x side beam members, this left-skew column cap helps distribute load from intersecting beams and provides critical structural support at the connection point - generally eliminating the need for additional brackets or braces. Strong-Drive SDS Heavy-Duty Connector screws are included, enabling faster installation and a lower profile compared to standard through bolts.

Key Features

• SDS screws configured for high uplift design values - fastener placement is optimized to resist uplift forces, giving builders confidence in the connection's structural performance under load.
• Certified welds throughout the cap - weld quality is independently verified, so you can trust the connector's strength and load capacity without guesswork.
• Diamond holes for temporary fastening - allow the cap to be held securely in position during alignment before final fastening, making installation easier and more accurate.

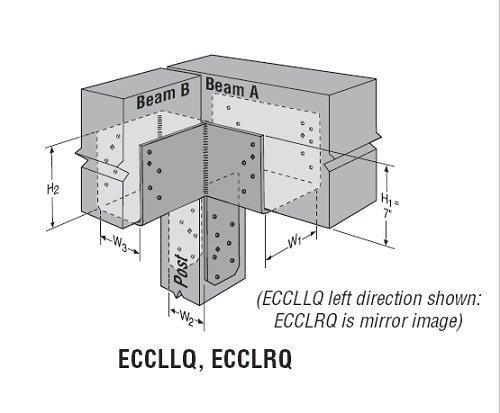

• Left-side beam orientation - specifically designed for L-shaped end column connections where the side beam is oriented to the left; the ECCLRQ model is available for right-side beam orientation.
• 7-gauge steel construction - heavy-gauge material provides the rigidity and strength required for demanding structural framing applications such as decks and pergolas.
• Simpson Strong-Tie gray paint finish - provides a consistent, professional appearance and baseline protection suited for structural connector applications.
• Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws - everything needed for installation arrives with the cap, reducing trips to the hardware store and ensuring the correct fasteners are used for rated load values.

Why This Product

• A purpose-built solution for L-shaped beam intersections - rather than adapting a generic connector, this cap is specifically designed for end-of-beam applications where a main beam and side beam meet at an "L" formation over a post, making it the right tool for the job from the start.
• Faster installation without sacrificing load performance - Strong-Drive SDS screws replace the need for through bolts, cutting installation time and delivering a lower-profile connection while maintaining high uplift design values.
• Confidence in every weld and fastener - certified welds and a screw configuration optimized for uplift resistance mean this connector is built and verified to perform, not just assembled and shipped.
• Fits common 4x lumber across all three members - compatibility with 4x nominal sizing for the main beam, side beam, and post means this cap integrates cleanly into standard deck, pergola, and structural framing projects without custom modifications.

Specifications

• Model Number: ECCLLQ444SDS
• Connection Type: L-Shape End Column Cap
• Beam Orientation: Skewed Left
• Nominal Member Sizes: 4x main beam, 4x post, 4x side beam
• Material: Steel
• Gauge: 7-gauge
• Finish / Coating: Simpson Strong-Tie Gray Paint
• Fastener Type: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (Model: SDS25212)
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections where two beams meet in an "L" formation on top of a post or column.
• Structural connections requiring load distribution from beams to a supporting post or column.
• Applications requiring a left-side beam orientation at an L-shaped end column intersection.
• Projects using 4x nominal lumber for both main beam, side beam, and post members.
• Deck, pergola, and structural framing projects where strong column-beam connections are critical.

What's Included

• 1x Simpson Strong-Tie ECCLLQ444SDS L-Shape End Column Cap (Left)
• 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (Model: SDS25212)

Installation Notes

• Install included 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws in all round holes. Lag screws will not achieve the same load values.
• No additional welding is allowed after installation.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What member sizes is the ECCLLQ444SDS compatible with?

This column cap is designed for nominal member sizes of a 4x main beam, 4x post, and 4x side beam, making it suitable for end-of-beam applications where two beams intersect in an "L" formation on top of a column.

What fasteners are required for installation, and are they included?

The ECCLLQ444SDS installs with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212), which are included with the product. These screws provide faster installation and a lower profile than standard through bolts.

What is the difference between the ECCLLQ444SDS and the ECCLRQ model?

The ECCLLQ444SDS features a side beam oriented to the left. If your project requires a right-side beam orientation, you should order the ECCLRQ model instead.

What material and finish is this column cap made from?

The ECCLLQ444SDS is constructed from 7-gauge steel and features a Simpson Strong-Tie gray paint finish. It also includes certified welds for confidence in strength and load-bearing performance.
