The Simpson CCQ7.1-6SDS2.5 CCQ Column Cap from Simpson Strong-Tie delivers high-capacity column-to-beam connections in wood-frame construction, engineered specifically for a 7 in. beam and a nominal 6x post. The extended bearing seat reaches beyond each side of the column, distributing load from the beam across a greater surface area to provide critical support at the connection point. Included 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws replace traditional through bolts, engaging a greater net section area of the column for a stronger, lower-profile attachment. Designed to generally eliminate the need for additional brackets or braces, this column cap is a reliable, streamlined solution for structural connections in a wide range of wood construction projects.

Key Features

• Strong-Drive SDS screws engage greater net section area - attaches to more of the column than a standard bolt connection, improving overall connection strength and integrity
• Lower-profile fastener connection - SDS screws sit closer to the surface than through bolts, reducing interference and keeping the assembly clean where clearance is limited

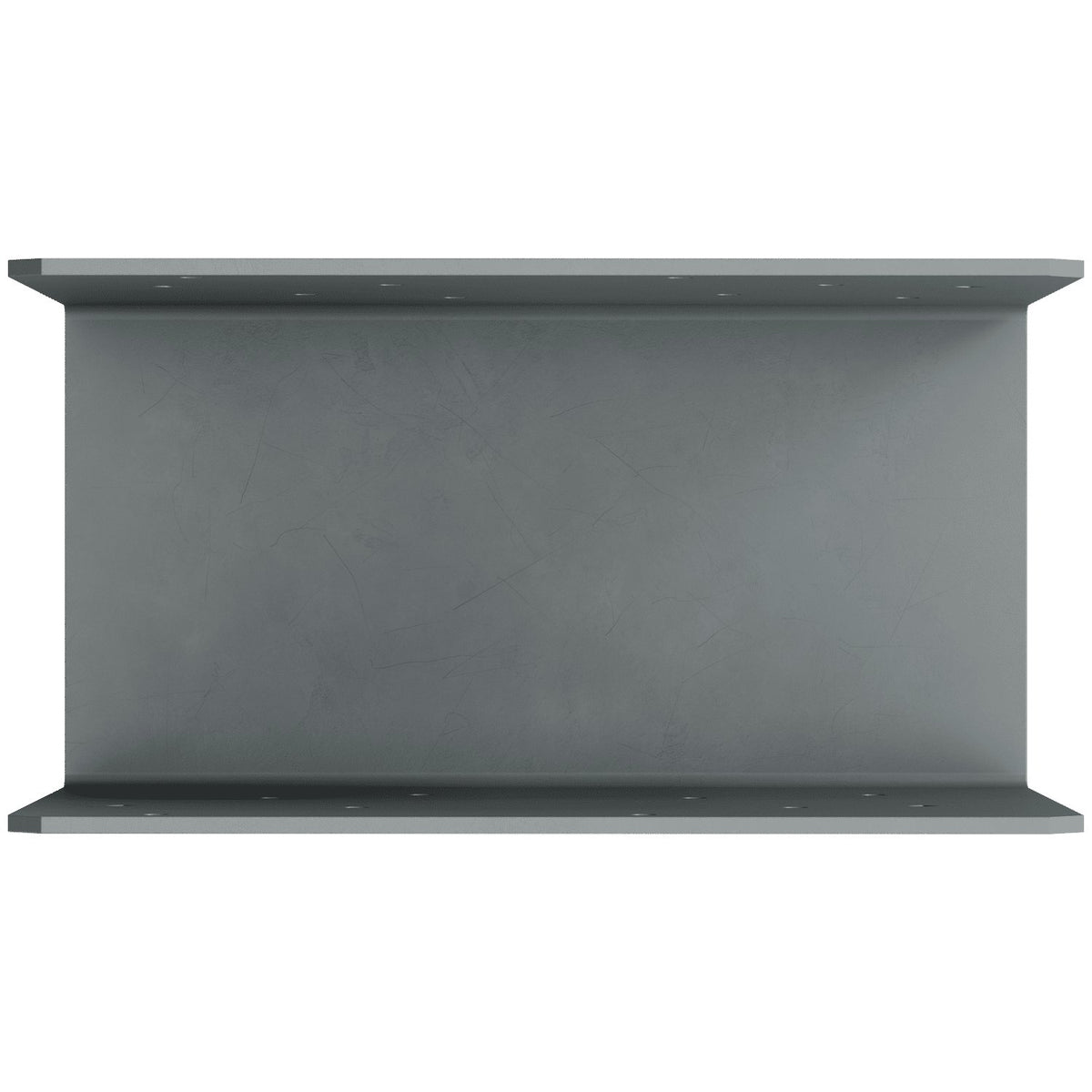

• Extended bearing seat beyond each side of the column - distributes beam load over a larger surface area, improving load transfer and structural support at the connection point
• Certified welds - provide verified strength and loading confidence, so builders and engineers can rely on the connection to perform as rated
• Increased uplift load capacity for seismic and wind events - engineered to handle the elevated forces that occur during earthquakes or high-wind conditions, supporting code-compliant structural design
• Diamond holes for temporary fastening - allow installers to tack the cap in place during positioning, making alignment easier and speeding up the installation process
• 3-gauge steel construction - delivers the heavy-duty rigidity required for demanding structural column-to-beam applications
• Simpson Strong-Tie gray paint finish - provides a consistent, professional appearance while offering a baseline level of surface protection

Why This Product

• One connector, no extra hardware needed - the CCQ column cap is designed to generally eliminate the need for additional brackets or braces, simplifying structural assemblies and reducing installation complexity on wood construction projects
• Faster installation with included SDS screws - the 30 included 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws allow for quick fastening without drilling through the full column, saving time compared to traditional bolt-based column cap installations
• Built for high-demand structural environments - with certified welds, 3-gauge steel, and uplift loads rated for earthquake and wind loading, this column cap is suited for projects where connection performance under lateral and uplift forces is a primary concern
• Designed for a precise, confident fit - sized specifically for a 7 in. beam and nominal 6x post, this cap provides a purpose-built connection that takes the guesswork out of matching hardware to timber dimensions

Specifications

• Manufacturer Part Number (MPN): CCQ7.1-6SDS2.5
• Brand: Simpson Strong-Tie
• Product Series: CCQ Column Cap
• Beam Width: 7 in.
• Nominal Post Size: 6x
• Member Size: 7 in. beam, 6x post

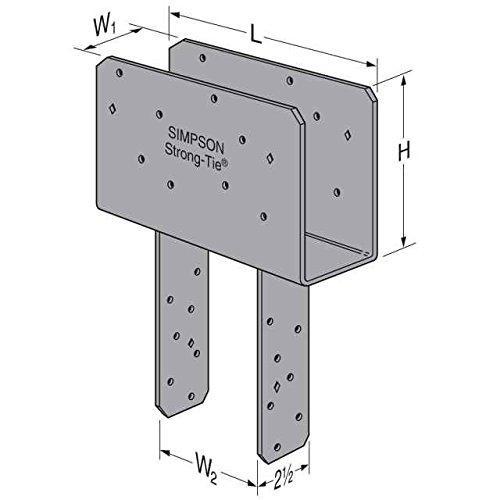

• Width 1: 7-1/8 in.
• Width 2: 5-1/2 in.
• Length 1: 11 in.
• Height 1: 7 in.
• Material Gauge: 3-gauge steel
• Finish / Coating: Simpson Strong-Tie Gray Paint
• Fastener Type: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws
• Fastener Quantity: 30 screws included
• Country of Origin: United States

Approved Applications

• Column-to-beam connections in wood-frame construction
• Structural connections requiring increased uplift resistance for earthquake loading
• Structural connections requiring increased uplift resistance for wind loading
• Applications where a lower-profile fastener connection is required or preferred over through bolts
• Projects where eliminating additional brackets or braces is desired
