Product Description

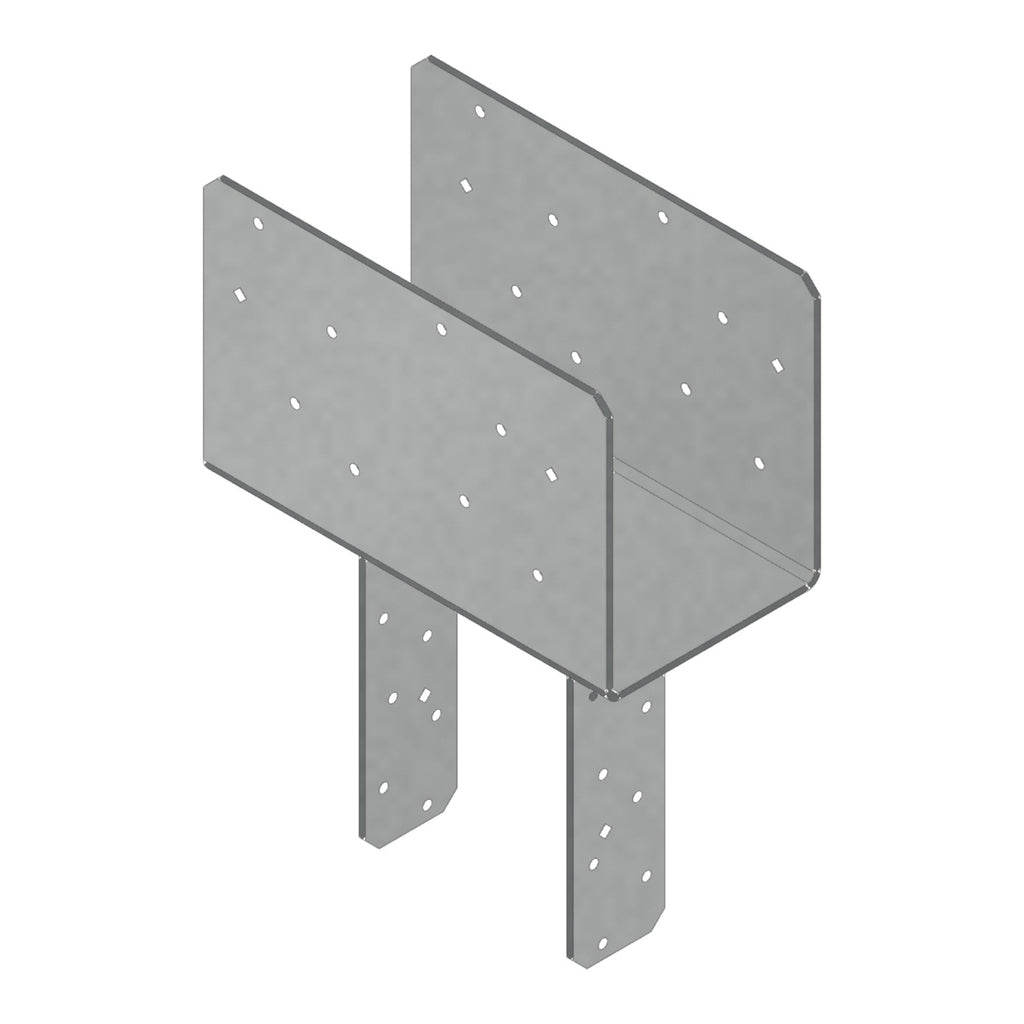

Simpson CCQ66SDS2.5 CCQ Column Cap for 6x Beam, 6x Post with Strong-Drive SDS Screws by Simpson Strong-Tie is engineered to deliver high-capacity column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column, helping distribute the load from the beam and provide support for the connection. This model uses Strong-Drive SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails - all while maintaining a lower profile than standard through bolts.
Key Features
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading

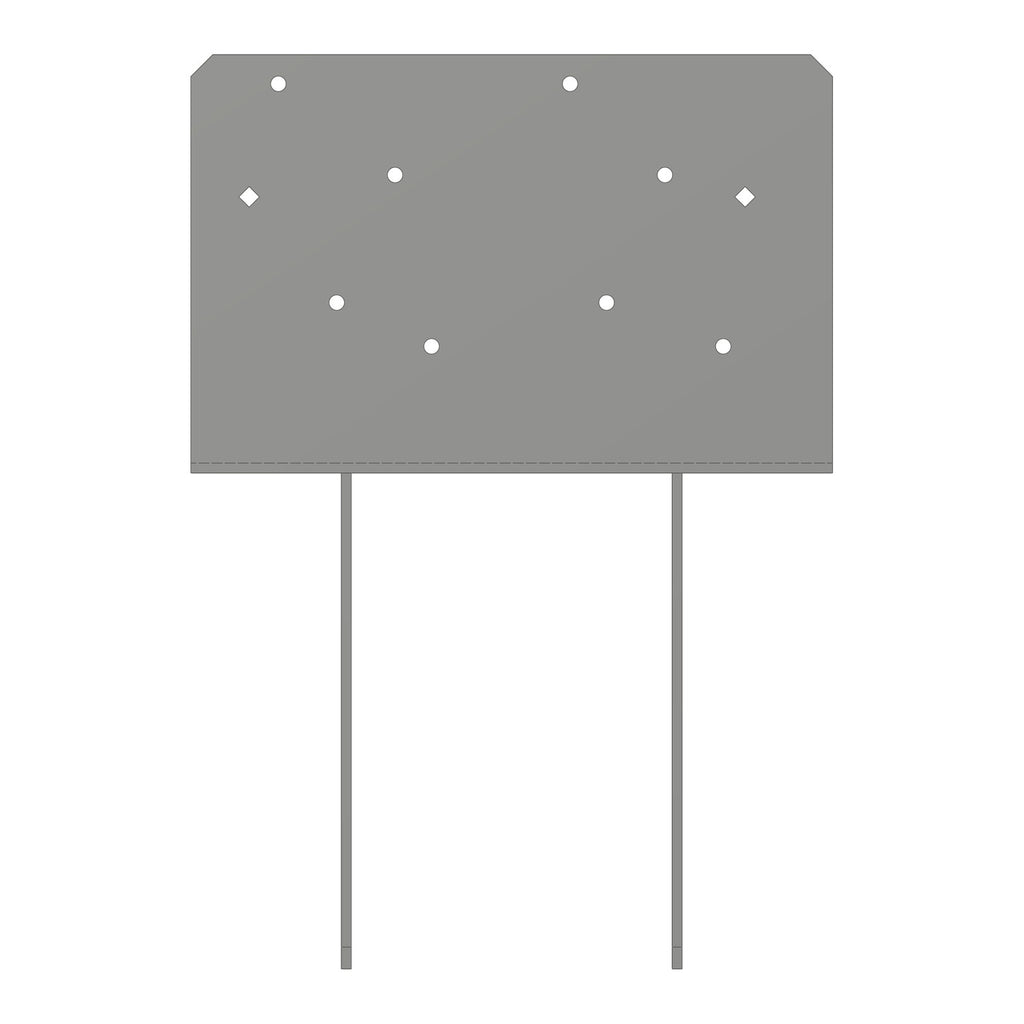

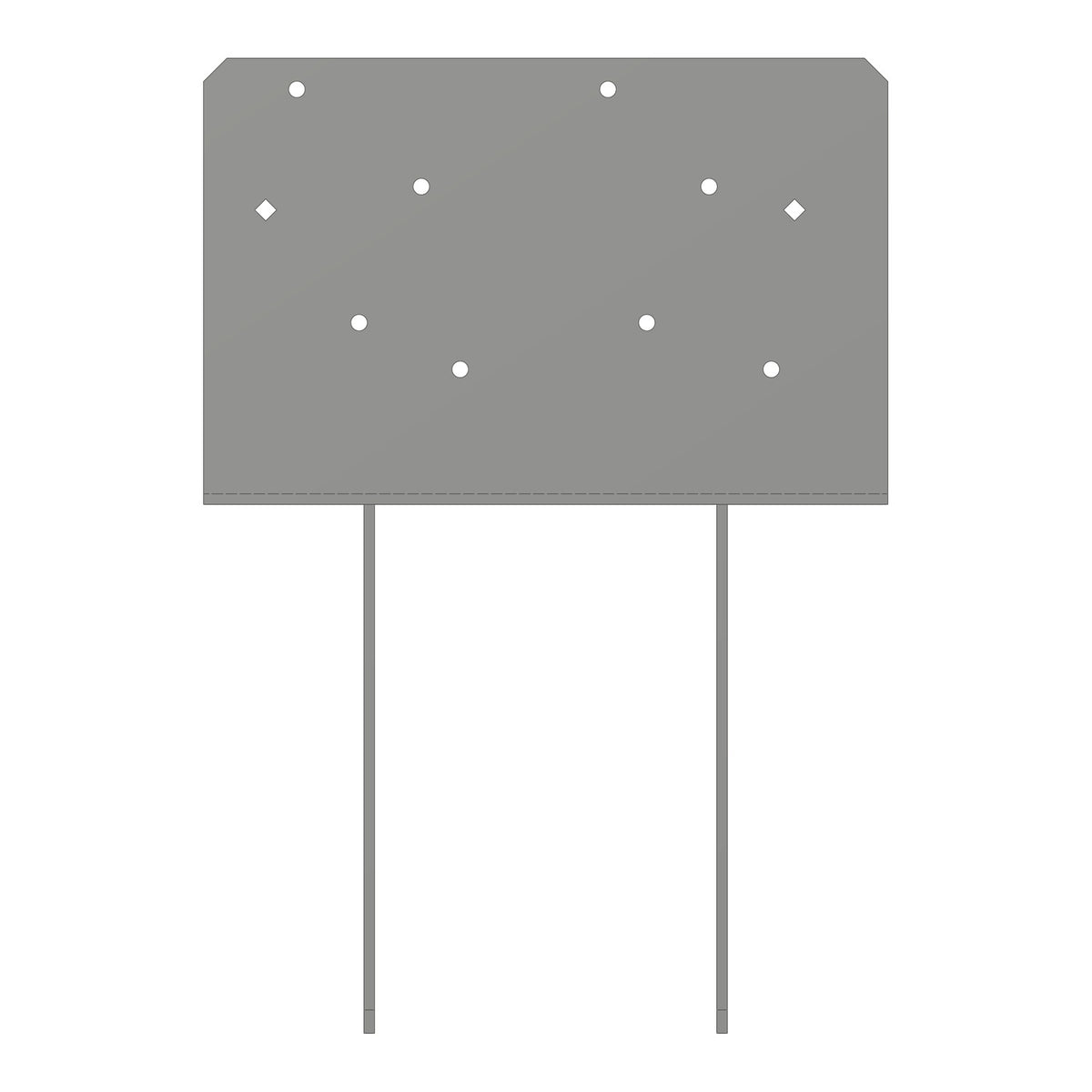

- Diamond holes for temporary fastening
- Nominal beam width: 6x
- Nominal post size: 6x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- MPN: CCQ66SDS2.5
- Brand: Simpson Strong-Tie
- Member Size: 6x beam; 6x post
- Beam Width: 5-1/4 in. or 5-1/2 in.
- Width 1: 5-1/2 in.
- Width 2: 5-1/2 in.
- Length 1: 11 in.
- Height 1: 7 in.
- Gauge: 7
- Finish: Simpson Strong-Tie Gray Paint
- Coating: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
What's Included
Each pack contains (1) CCQ66SDS2.5 Column Cap, 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners are used to install the CCQ66SDS2.5?
- Install with (30) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212 included). Note that lag screws will not achieve the same load.
- Why use SDS screws instead of standard through bolts?
- The SDS screws provide a lower profile than standard through bolts and attach to a greater net section area of the column than a bolt attachment normally entails, resulting in a stronger and cleaner connection.
- Is the CCQ66SDS2.5 suitable for use in high-wind or seismic regions?
- Yes. Uplift loads have been increased for earthquake or wind loading, making this column cap well-suited for projects in areas subject to high-wind or seismic design requirements.
- Can the CCQ column cap be ordered without legs for field-welding to pipe or other columns?
- Yes. The CCOQ and ECCOQ column cap only (no straps) versions may be ordered for field-welding to pipe or other columns. Dimensions are the same as the CCQ and ECCQ.
