Product Description

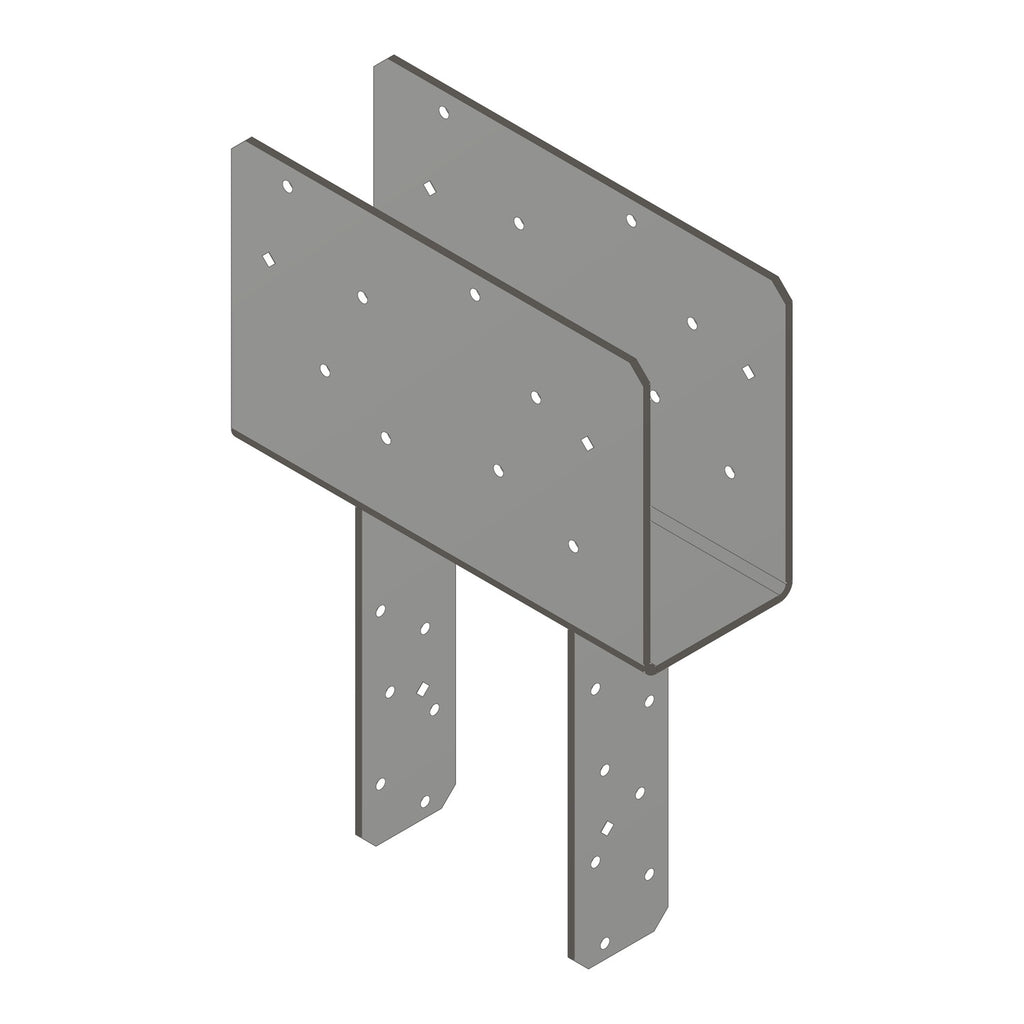

Simpson CCQ46SDS2.5 CCQ Column Cap for 4x Beam, 6x Post with Strong-Drive SDS Screws by Simpson Strong-Tie is engineered to provide a high-capacity column-beam connection in wood construction. The CCQ design features an extended bearing seat that reaches beyond each side of the column, helping distribute load from the beam and providing additional support at the connection point. Strong-Drive SDS Heavy-Duty Connector screws are used in place of traditional through bolts, delivering faster installation and attachment to a greater net section area of the column. The result is a strong, low-profile connection suited for demanding structural applications including those subject to earthquake or wind loading.
Key Features
- The SDS screws provide a lower profile than standard through bolts
- Certified welds for confidence in strength and loading
- Uplift loads have been increased for earthquake or wind loading
- Diamond holes for temporary fastening
- Nominal beam width: 4x
- Nominal post size: 6x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- MPN: CCQ46SDS2.5
- Brand: Simpson Strong-Tie
- Member Size: 4x beam, 6x post
- Nominal Beam Width: 4x
- Beam Width: 3-1/2 in.
- Width 1: 3-5/8 in.
- Width 2: 5-1/2 in.
- Length 1: 11 in.
- Height 1: 7 in.
- Nominal Post Size: 6x
- Gauge: 7
- Finish: Simpson Strong-Tie Gray Paint
- Coating: Simpson Strong-Tie Gray Paint
- Country of Origin: ZZ
What's Included
Each pack contains (1) CCQ46SDS2.5 Column Cap, 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What lumber dimensions does this column cap fit?
- The CCQ46SDS2.5 is designed for a nominal 4x beam width and a nominal 6x post size, making it suitable for those specific column-beam combinations in wood construction.
- Why are SDS screws used instead of standard through bolts?
- Strong-Drive SDS Heavy-Duty Connector screws provide a lower profile than standard through bolts and attach to a greater net section area of the column, resulting in faster installation and a strong, streamlined connection.
- Is this column cap rated for use in high-wind or seismic zones?
- Yes. Uplift loads have been increased for earthquake or wind loading, and the CCQ features certified welds for added confidence in strength and loading under these demanding conditions.
- Can the CCQ46SDS2.5 be used with field-welding to pipe or other non-wood columns?
- The CCQ column cap with legs is designed for wood construction. For field-welding to pipe or other columns, the CCOQ or ECCOQ (column cap only, no straps) versions may be ordered separately, as those share the same dimensions as the CCQ and ECCQ.
Related Products
- CCOQ - Column Cap Only, Quick-Install; suitable for field-welding to pipe or other columns
- ECCOQ - End Column Cap with Legs Omitted, Quick-Install; suitable for field-welding to pipe or other columns
Note: Product dimensions and/or screw holes may differ from picture.
