Product Description

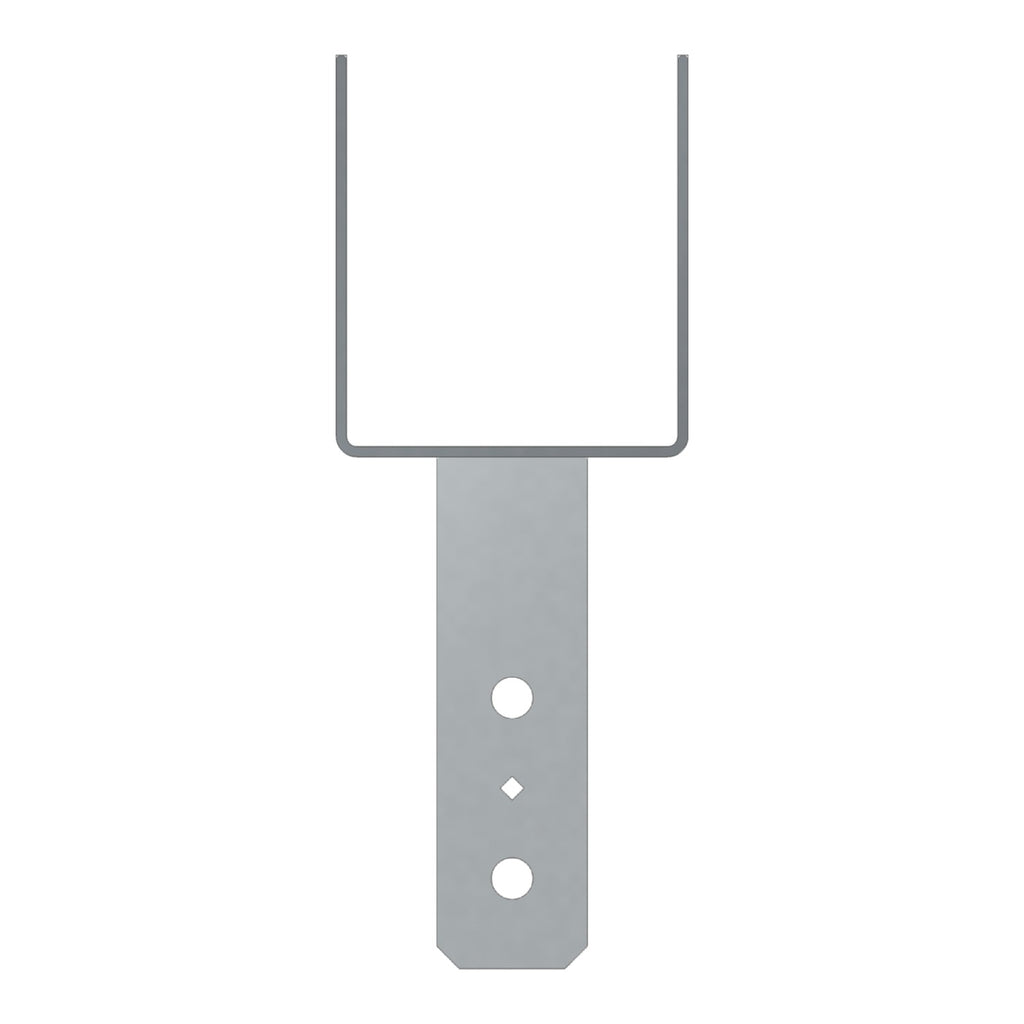

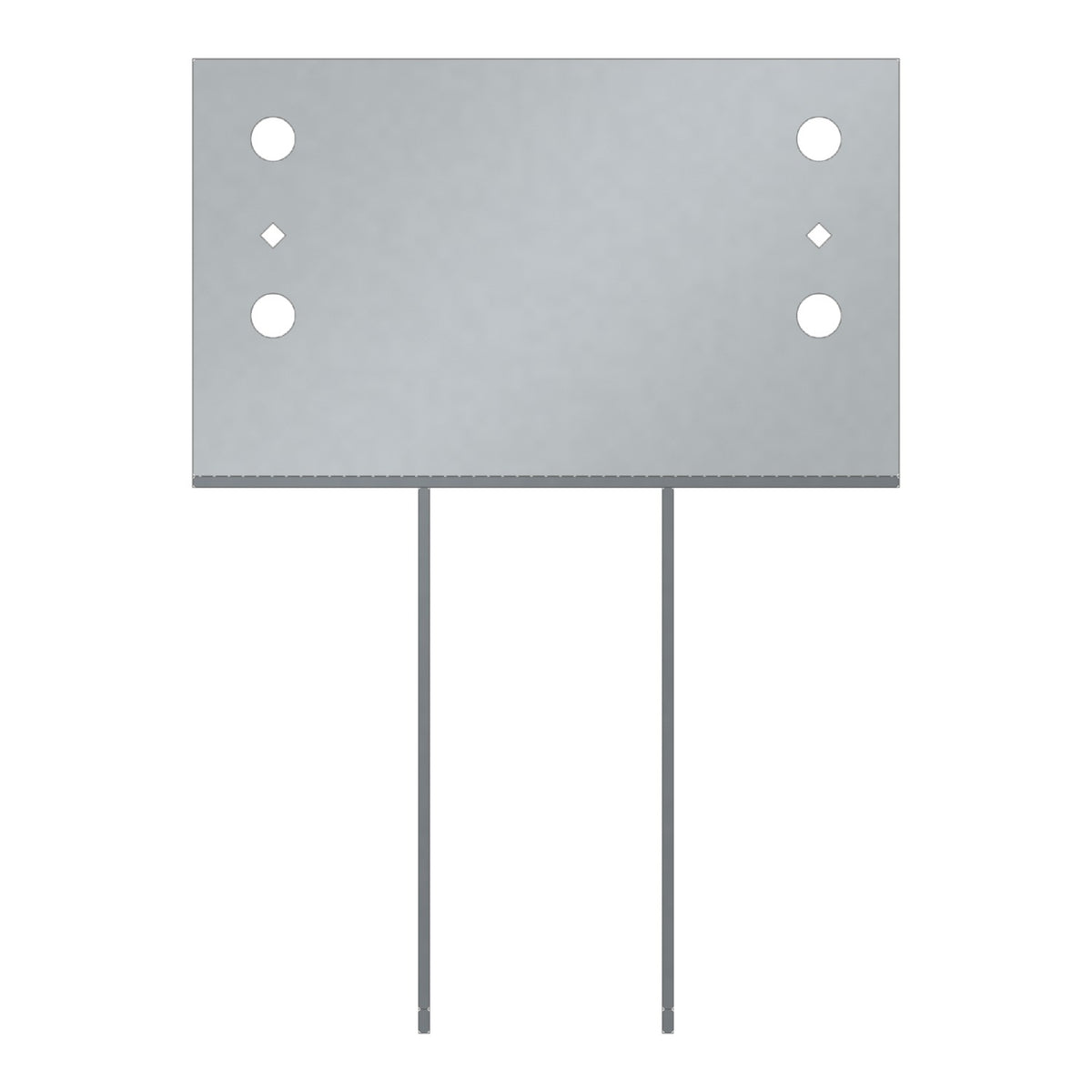

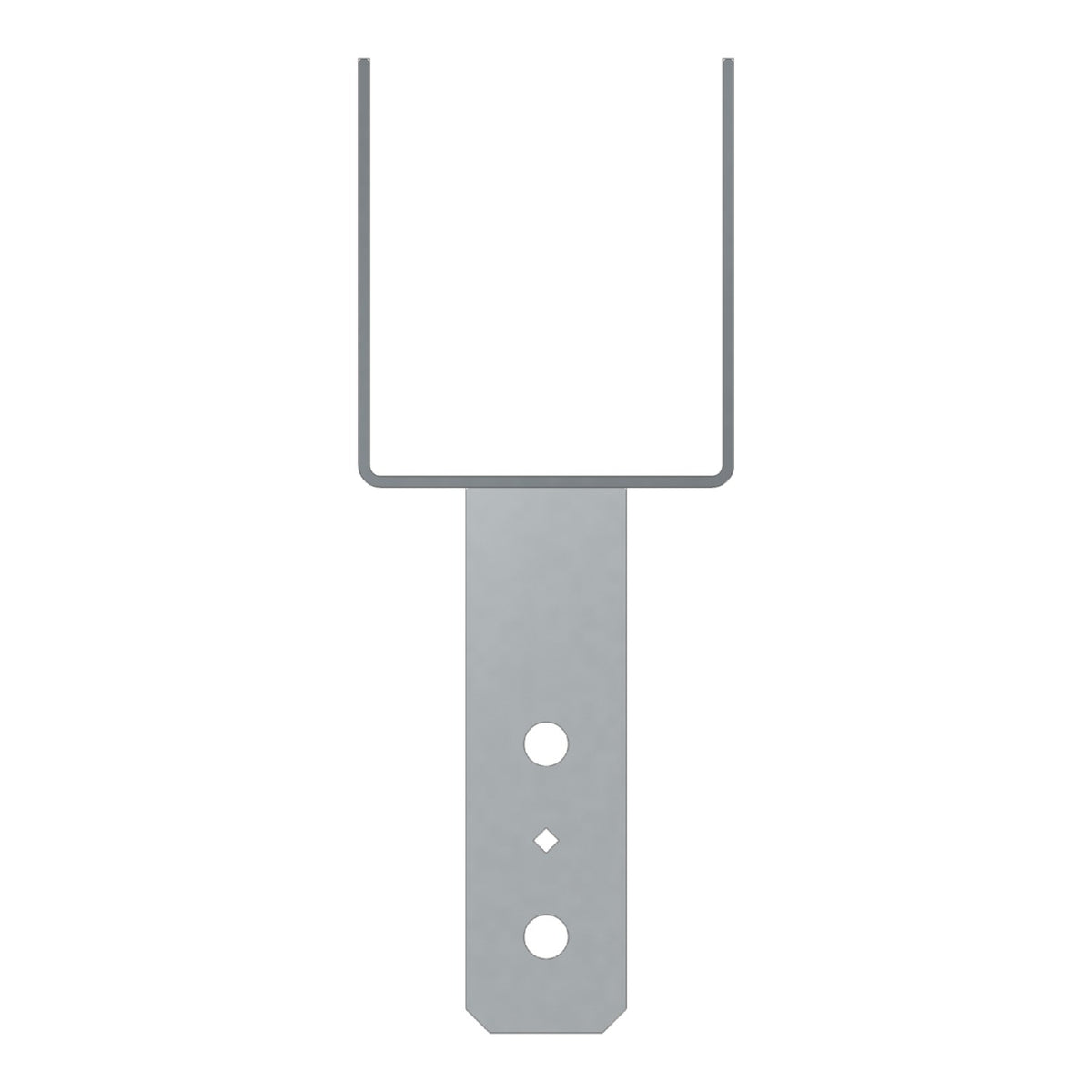

The Simpson CC64 CC Column Cap for 6x Beam, 4x Post by Simpson Strong-Tie is engineered to provide strong, reliable column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column, helping to distribute the load from the beam and deliver dependable support for the connection. Built from 7-gauge steel with certified welds, this column cap is designed to perform in demanding structural applications, including those subject to earthquake or wind loading forces.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 6x
- Nominal post size: 4x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- Model Number: CC64
- Member Size: 6x Beam, 4x Post
- Beam Width: 5-1/4 in. or 5-1/2 in.
- Width 1: 5-1/2 in.
- Width 2: 3-5/8 in.
- Length 1: 11 in.
- Height 1: 6-1/2 in.
- Gauge: 7-gauge steel
- Finish: Simpson Strong-Tie Gray Paint
- Coating: Simpson Strong-Tie Gray Paint
- Install With: (6) 5/8-in. diameter bolts (sold separately)
- Post Size: 4x6
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg.
- For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Material
CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge
(C)
Downloads and Resources
- Straps may be rotated 90 (See Spec Sheet) and for CC5 1/4-6.
Frequently Asked Questions
- What lumber sizes is the CC64 designed to connect?
- The CC64 is designed to connect a nominal 6x beam to a nominal 4x post, providing a strong and secure column-beam connection in wood construction.
- How many bolts are required to install the CC64?
- The CC64 is installed with six (6) 5/8-inch diameter bolts. The bolt spacing is designed to meet NDS code requirements for optimal performance.
- Is the CC64 suitable for use in high-wind or seismic zones?
- Yes. The CC64 features increased uplift load values, making it appropriate for applications subject to earthquake or wind loading conditions.
- What steel gauge and finish does the CC64 use?
- The CC64 is manufactured from 7-gauge steel and finished with Simpson Strong-Tie gray paint, providing durability and corrosion resistance for structural applications.
Note: Product dimensions and/or screw/bolt holes may differ from picture.
