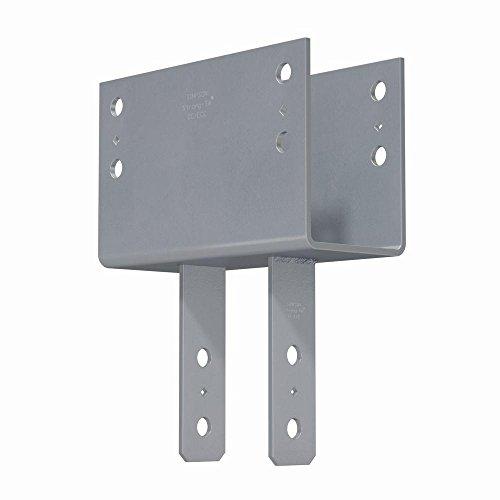

The Simpson CC5 1/4-5 1/4 Column Cap from Simpson is a bolted structural connector engineered for reliable column-to-beam connections in wood construction. Designed to accommodate a 5 1/8 in. beam and a 5 1/8 in. post, this column cap features a seat that extends bearing surface area beyond each side of the column, helping to distribute load from the beam efficiently and provide critical support at the connection point. Finished in Simpson Strong-Tie gray paint, it is built to meet demanding structural requirements in residential and commercial wood framing applications.

Key Features

• Extended seat bearing surface - the seat reaches beyond each side of the column to distribute beam load more evenly, reducing point stress at the connection and improving overall structural integrity
• Enhanced uplift load capacity - uplift values are increased to accommodate earthquake and wind loading, making this cap suitable for high-wind and seismic zone applications where conventional connectors may fall short
• Certified welds - engineered with certified welds to provide confidence in strength and consistent load-carrying performance across every unit
• NDS code-compliant bolt spacing - designed to meet National Design Specification bolt spacing requirements, helping builders maintain code compliance without field modifications
• Simpson Strong-Tie gray paint finish - provides a protective coating suited to typical wood construction environments, preserving connector integrity at the column-to-beam junction
• Configurable strap orientation - straps may be rotated 90 deg. and custom or rough-cut lumber sizes can be accommodated, giving installers flexibility across a range of framing scenarios

Why This Product

• Built for demanding structural conditions - with uplift loads specifically increased for earthquake and wind loading, this column cap is a dependable choice for wood framing projects in regions subject to lateral and uplift forces
• Precision fit for 5 1/8 in. beam and post applications - designed specifically for 5 1/8 in. beam and 5 1/8 in. post dimensions, this cap delivers a purpose-matched connection rather than a generic fit, reducing the risk of improper installation
• Trusted Simpson engineering - manufactured by Simpson, a recognized name in precision structural connectors, this cap reflects the quality standards builders rely on for load-critical wood construction connections
• Flexible configuration options - with strap rotation capability and support for custom lumber dimensions, this connector adapts to real-world framing conditions without requiring special fabrication

Specifications

• Model Number: CC5 1/4-5 1/4
• Manufacturer Part Number (MPN): CC5 1/4-5 1/4
• Brand: Simpson Strong-Tie
• Finish: Simpson Strong-Tie gray paint
• Material / Gauge: CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge
• Country of Origin: United States

Approved Applications

• Column-to-beam connections in wood construction projects
• Structures requiring enhanced uplift resistance for earthquake or wind loading
• Applications requiring NDS code-compliant bolt spacing for structural integrity
• Wood construction connections where extended bearing surface support is required at column-to-beam junctions

Options

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg.

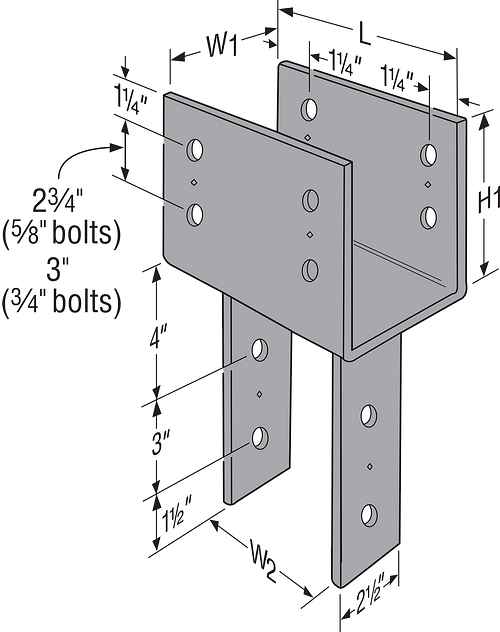

• For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What is the purpose of the extended seat on the CC5 1/4-5 1/4 column cap?

The seat of the column cap is designed to provide an additional surface area of bearing that extends beyond each side of the column. This helps distribute the load from the beam more effectively and provides greater support for the connection.

Is this column cap suitable for use in high-wind or seismic zones?

Yes. The CC5 1/4-5 1/4 features uplift loads that have been increased specifically to accommodate earthquake or wind loading, making it appropriate for use in demanding environmental conditions.

What finish does the CC5 1/4-5 1/4 come with?

This column cap is finished in Simpson Strong-Tie gray paint, providing a consistent, durable surface treatment.

Does the CC5 1/4-5 1/4 meet code requirements for bolt spacing?

Yes. Bolt spacing on the CC5 1/4-5 1/4 is engineered to meet NDS (National Design Specification) code requirements, ensuring optimal structural performance and code compliance.

Disclaimer: Product dimensions and/or screw/bolt holes may differ from picture.
