Product Description

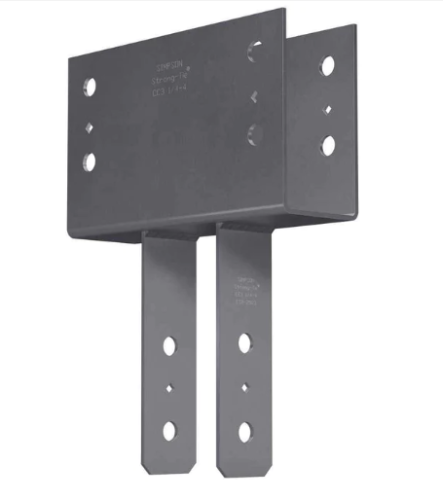

Simpson CC46HDG CC Hot-Dip Galvanized Column Cap for 4x Beam, 6x Post by Simpson Strong-Tie is engineered to provide strong, reliable column-to-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column, helping to distribute the load from the beam and deliver solid support for the connection. Constructed from 7-gauge steel with a hot-dip galvanized finish, this column cap is built for demanding exterior and treated-wood applications where corrosion resistance is essential.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Nominal beam width: 4x
- Nominal post size: 6x
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: CC46HDG
- Brand: Simpson Strong-Tie
- Member Size: 4x Beam, 6x Post
- Nominal Beam Width: 4x
- Beam Width: 3-1/2 in.
- Width 1: 3-5/8 in.
- Width 2: 5-1/2 in.
- Length 1: 11 in.
- Height 1: 6-1/2 in.
- Nominal Post Size: 6x
- Gauge: 7-gauge steel
- Coating / Finish: Hot-Dip Galvanized
- Installation Hardware: (6) 5/8-in. diameter HDG bolts
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated where W1 != W2.
- For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Material
CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge
Frequently Asked Questions
- What beam and post sizes is the CC46HDG designed to fit?
- The CC46HDG is designed for use with a nominal 4x beam width and a nominal 6x post size, making it suitable for standard dimensional lumber in those sizes used in wood construction.
- Why is the hot-dip galvanized finish important for this column cap?
- Hot-dip galvanization (HDG) provides extra corrosion resistance, making the CC46HDG well-suited for exterior applications and installations involving treated wood, where standard finishes may degrade over time due to moisture or chemical exposure.
- How does the CC46HDG help with load distribution?
- The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. This design helps distribute the load from the beam evenly and provides solid support for the column-to-beam connection.
- What hardware is required to install the CC46HDG?
- The CC46HDG is installed with (6) 5/8-in. diameter HDG bolts. The bolt spacing is designed to meet NDS code requirements to ensure optimal performance and structural integrity.
Note: Product dimensions and/or screw/bolt holes may differ from picture.
