Product Description

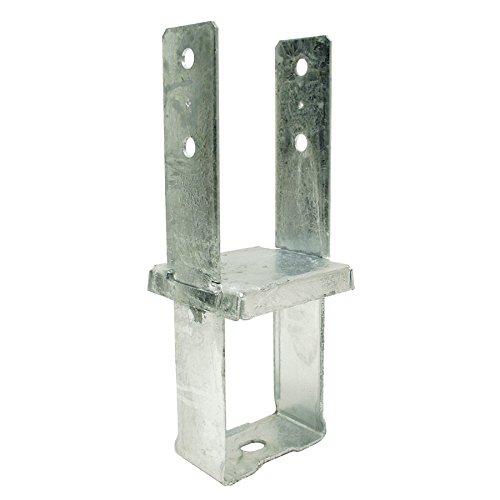

Simpson Strong-Tie CBS66HDG 6x6 Column Base, Hot-Dip Galvanized is engineered by Simpson Strong-Tie to serve as the critical interface between structural columns and their concrete foundations. Designed for 6x6 post applications, this column base transmits the structure's stresses from the column directly to the concrete footing surface. The hot-dip galvanized finish and 1" standoff make it especially well-suited for basements, exterior installations, and any environment where the post may be exposed to weather or water splash.
Key Features
- Installs with bolts and provides tested load capacity
- 1" standoff elevates the column base off the concrete surface, protecting structural posts in areas potentially exposed to water or water splash
- Bolt-hole locations that meet code requirements for wood posts
- Hot-dip galvanized finish provides enhanced corrosion resistance for demanding environments
- Designed to link the column to the concrete footing surface and transmit the structure's stresses to the foundation
- Meets code requirements for structural posts installed in basements or exposed to weather or water splash

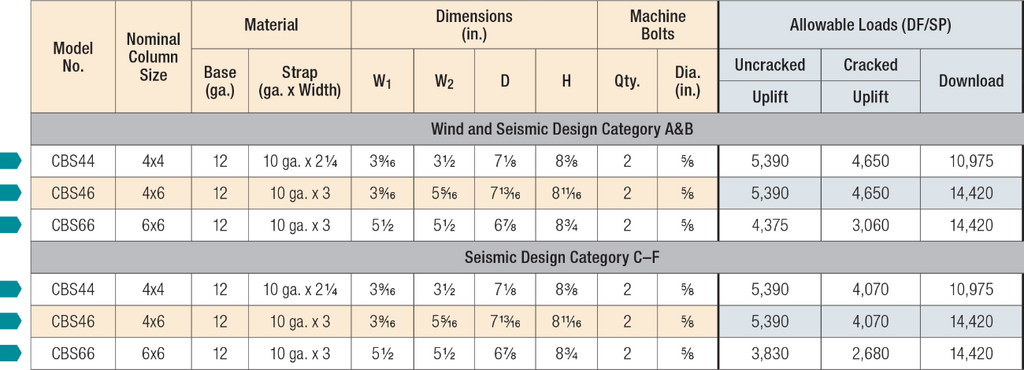

Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: CBS66HDG
- Column Size: 6x6
- Finish: Hot-Dip Galvanized
- Standoff Height: 1"
- Fasteners Required: (2) 5/8" Bolts
Frequently Asked Questions
- What is the purpose of the 1" standoff on the CBS66HDG?
- The 1" standoff elevates the base of the structural post above the concrete footing surface. This meets code requirements for structural posts installed in basements or in locations exposed to weather or water splash, helping to protect the post from moisture contact.
- What size post is the CBS66HDG designed for?
- The CBS66HDG is specifically designed for use with 6x6 dimensional lumber columns.
- What fasteners are required to install the CBS66HDG?
- Installation requires two 5/8" bolts to secure the column base to the concrete footing.
- Why is the hot-dip galvanized finish significant for this column base?
- The hot-dip galvanized finish provides a robust layer of corrosion resistance, making the CBS66HDG suitable for use in exterior applications, basements, and other environments where the connector may be exposed to weather, moisture, or water splash.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
