Product Description

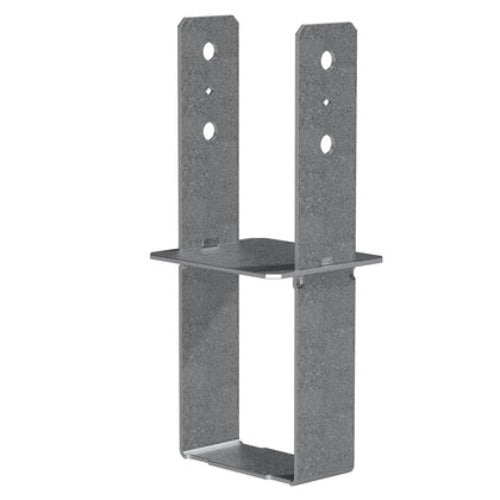

The Simpson Strong-Tie CB5-6 Column Base is engineered to securely connect posts to concrete foundations, accommodating a wide range of lumber, glulam, and engineered wood product sizes. Designed specifically for a Glulam 5-1/8 in. x 6 in. nominal column, this column base is either cast-in-place or wet set into concrete so the bottom of the base plate sits flush with the concrete surface, providing full post bearing for maximum load transfer. Built from heavy-duty 7-gauge steel with a Simpson Strong-Tie gray paint finish, the CB5-6 delivers high structural values and rugged, long-lasting performance in demanding structural applications.
Key Features
- Increased uplift resistance for wind or seismic loading
- Bolt hole locations meet code-required spacing for optimal capacity
- Nominal column size: Glulam 5-1/8 in. x 6 in.
- Made from 7-gauge steel for heavy-duty structural performance
- Simpson Strong-Tie gray paint finish for durability
- Cast-in-place or wet-set installation for base plate flush with concrete
- Provides full post bearing at the concrete interface
Specifications
- Manufacturer Part Number (MPN): CB5-6
- Brand: Simpson Strong-Tie
- Nominal Column Size: Glulam 5-1/8 in. x 6 in.
- Material Gauge: 7-Gauge Steel
- Finish / Coating: Simpson Strong-Tie Gray Paint
- Installation Hardware: (2) 5/8 in. diameter machine bolts (sold separately)
- Width 1: 6 in.
- Width 2: 5-1/4 in.
- Country of Origin: United States
Approved Applications
- Connecting glulam columns to concrete foundations
- Connecting lumber and engineered wood product posts to concrete foundations
- Structural applications requiring high uplift resistance against wind loading
- Structural applications requiring high uplift resistance against seismic loading
- Cast-in-place concrete column base installations
- Wet-set concrete column base installations
- Columns requiring high structural values and rugged performance
What's Included
- 1 x Simpson Strong-Tie CB5-6 Column Base
- Install with: (2) 5/8 in. diameter machine bolts (hardware not included - verify fastener requirements for your application)
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What column size is the CB5-6 designed to fit?
- The CB5-6 is designed for a nominal Glulam 5-1/8 in. x 6 in. column. It is compatible with lumber, glulam, and engineered wood product posts of this size.
- How is the CB5-6 installed into concrete?
- The CB5-6 is installed by either casting it in place or wet setting it into the concrete so that the bottom of the base plate sits flush with the concrete surface. This flush installation provides full post bearing at the concrete interface for maximum load transfer.
- What hardware is required to install the CB5-6?
- Installation requires two 5/8 in. diameter machine bolts. The bolt hole locations are designed to meet code-required spacing for optimal load capacity.
- What material and finish is the CB5-6 made from?
- The CB5-6 is constructed from 7-gauge steel and features a Simpson Strong-Tie gray paint finish, providing heavy-duty structural performance and durability in demanding applications.
