Product Description

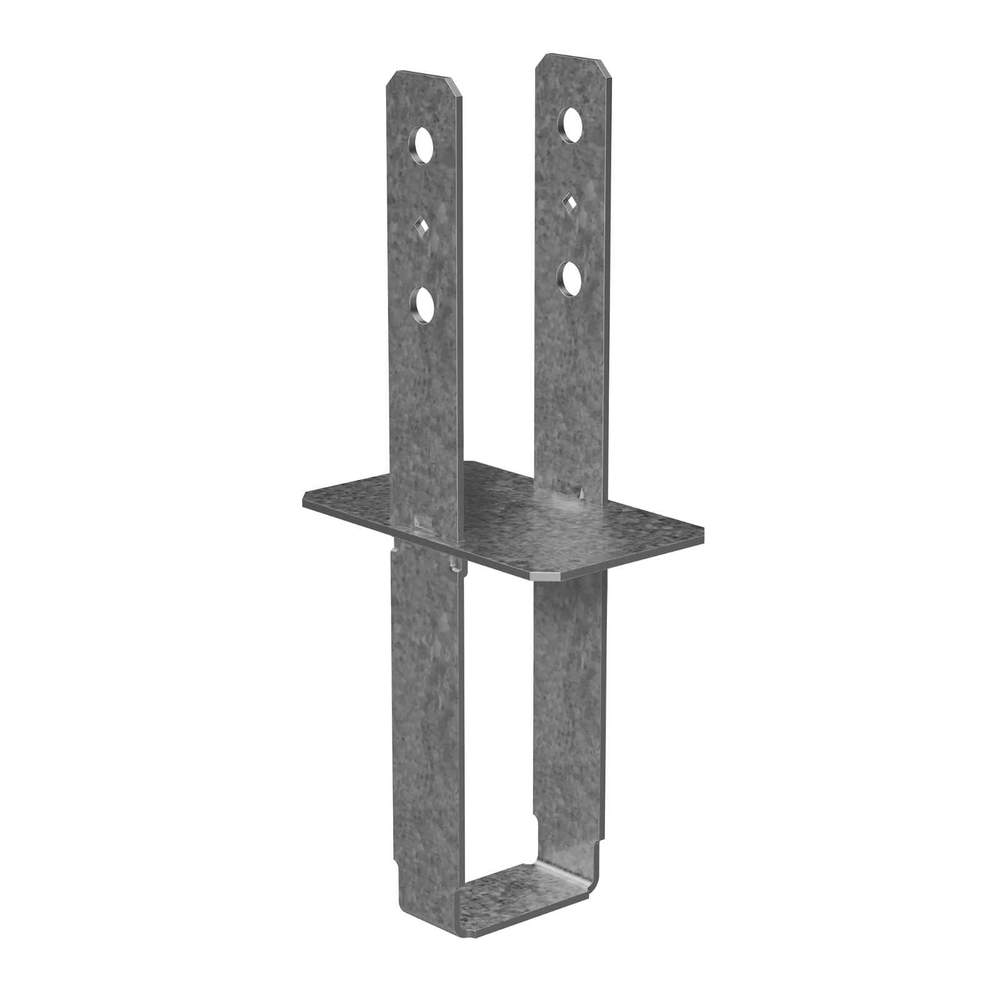

Simpson CB46HDG CB Hot-Dip Galvanized Column Base for 4x6 by Simpson Strong-Tie is engineered to connect posts to concrete foundations across a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete, where the bottom of the base plate sits flush with the concrete surface for full post bearing. Constructed from heavy-duty 7-gauge steel with a hot-dip galvanized finish, the CB46HDG is ideal for columns that require high structural values and rugged, long-lasting performance in demanding exterior and treated-wood environments.
Key Features
- Increased uplift resistance for wind or seismic loading
- Bolt hole locations meet code-required spacing for optimal capacity
- Nominal column size: 4x6
- Made from 7-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Manufacturer Part Number (MPN): CB46HDG
- Brand: Simpson Strong-Tie
- Nominal Column Size: 4x6
- Width 1: 3-9/16 in.
- Width 2: 5-1/2 in.
- Gauge: 7
- Coating / Finish: Hot-Dip Galvanized
- Install With: (2) 5/8-in. diameter HDG machine bolts (sold separately)
- Country of Origin: United States
Approved Applications
- Connecting posts to concrete foundations in residential and commercial construction
- Cast-in-place concrete installations where the base plate sits flush with the concrete surface
- Wet-set concrete installations for full post bearing support
- Exterior applications and projects using pressure-treated lumber requiring enhanced corrosion resistance
- Structural columns subject to wind or seismic uplift forces
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What installation methods are compatible with the CB46HDG?
- The CB46HDG is designed to be either cast-in-place or wet set into concrete. In both methods, the bottom of the base plate sits flush with the concrete surface to provide full post bearing.
- What type of steel and finish does the CB46HDG use, and why does it matter?
- The CB46HDG is fabricated from 7-gauge steel and features a hot-dip galvanized (HDG) finish. This coating provides extra corrosion resistance, making it well suited for exterior environments and applications involving pressure-treated wood where corrosion is a concern.
- What fasteners are required to install the CB46HDG?
- Installation requires (2) 5/8-in. diameter HDG machine bolts. The bolt hole locations are positioned to meet code-required spacing for optimal load capacity.
- Is the CB46HDG suitable for high-load structural applications?
- Yes. The CB46HDG is engineered for columns that require high structural values and rugged performance, including increased uplift resistance for wind or seismic loading, making it appropriate for demanding structural applications.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
