Product Description
Simpson BCS2-3/6Z BCS ZMAX Galvanized Post Cap for Triple 2x Beam, 6x Post by Simpson Strong-Tie is an 18-gauge steel post cap engineered to create a positive, load-bearing connection between a triple 2x beam and a 6x post. Featuring double-shear nailing between the beam and post for added strength, this cap is significantly stronger than angled nailing or screw fastening - making it an ideal solution for wood decks, patio covers, and other top-supported exterior structures. Its ZMAX galvanized coating delivers superior corrosion resistance for use with treated lumber and outdoor applications.
Key Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Double-shear nailing between beam and post gives added strength
- Nominal size: Triple 2x beam, 6x post
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Not recommended for non top-supported installations (such as fences or unbraced carports)

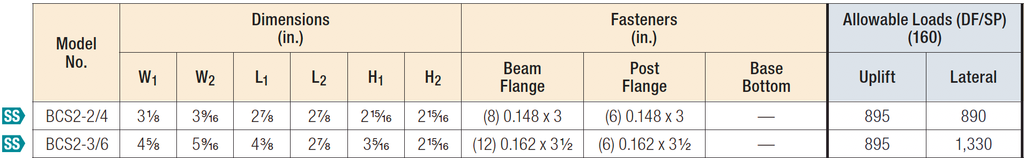

Specifications
- Model Number: BCS2-3/6Z
- Member Size: Triple 2x beam, 6x post
- Width 1: 4-5/8 in.
- Width 2: 5-9/16 in.
- Length 1: 4-3/8 in.
- Length 2: 2-7/8 in.
- Height 1: 3-5/16 in.
- Height 2: 2-15/16 in.
- Gauge: 18
- Coating / Finish: ZMAX
- Install With: 16d common nails (sold separately)
- Country of Origin: United States
Approved Applications
- Wood deck post-to-beam connections
- Patio cover post-to-beam connections
- Top-supported structural framing connections using a triple 2x beam on a 6x post
- Exterior and treated-wood applications where corrosion resistance is required
Downloads and Resources
Frequently Asked Questions
- What beam and post sizes is the BCS2-3/6Z designed for?
- The BCS2-3/6Z is designed for a triple 2x (three 2x members) beam connecting to a 6x post, providing a secure and code-compliant structural connection.
- Why is double-shear nailing important in this post cap?
- Double-shear nailing between the beam and post distributes load more effectively across the connection, resulting in greater overall strength compared to angled nailing or screw fastening alone.
- What fasteners should be used to install the BCS2-3/6Z?
- The BCS2-3/6Z should be installed with 16d common nails. Always use all specified fasteners to ensure the connection performs as engineered.
- Is the BCS2-3/6Z suitable for fences or unbraced carports?
- No. This post cap is not recommended for non top-supported installations such as fences or unbraced carports, as post bases and caps of this type do not provide adequate resistance to prevent members from rotating about the base in those applications.
Note: Product dimensions and/or nail or screw holes may differ from picture.
