Product Description

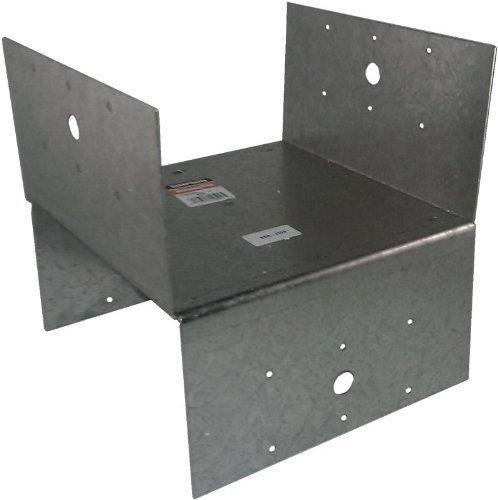

The Simpson 8x Post Cap from Simpson is a dual-purpose post cap and base engineered to create a positive, mechanical connection between a nominal 8x post and a wood deck or beam. Built from 18-gauge steel with a G90 zinc galvanized finish, this connector delivers greater holding strength than angled nailing or screw fastening alone - making it a reliable choice for decks, patio covers, and other top-supported structural applications where a secure post-to-wood connection is essential.
Key Features
- Positive mechanical connection for post-to-deck applications - creates a stronger, more reliable joint than angled nailing or screw fastening, giving you confidence in the structural integrity of your build
- Reduces the chance of post splitting and eliminates nailing into end grain - protects your lumber investment and results in a cleaner, more professional installation
- 18-gauge steel construction - provides the structural rigidity needed for light cap or base applications on nominal 8x posts without adding unnecessary bulk
- G90 zinc galvanized coating - delivers extra corrosion resistance for outdoor environments like decks and patio covers where exposure to moisture is a regular concern
- Dual-purpose cap and base design - serves both post cap and post base functions, reducing the number of different connectors you need to keep on hand for a project
- Not recommended for non top-supported installations - knowing this upfront (fences, unbraced carports, and similar applications are excluded) helps you select the right connector the first time and avoid costly rework
Why This Product
- Stronger than traditional fastening methods - the BC8 outperforms angled nailing and screw fastening by creating a positive mechanical connection, which translates directly into a more structurally sound post-to-beam or post-to-deck assembly
- Built for outdoor durability - the G90 zinc galvanized finish provides extra corrosion resistance, making this post cap well suited for exposed deck and patio cover construction where moisture resistance is a long-term priority
- Protects lumber integrity during installation - by eliminating the need to nail into end grain and reducing the risk of post splitting, the BC8 helps preserve the structural quality of your posts from day one
- Versatile dual-purpose design - functioning as both a post cap and a post base for light applications, this single connector covers more ground on the job site, simplifying procurement and installation planning

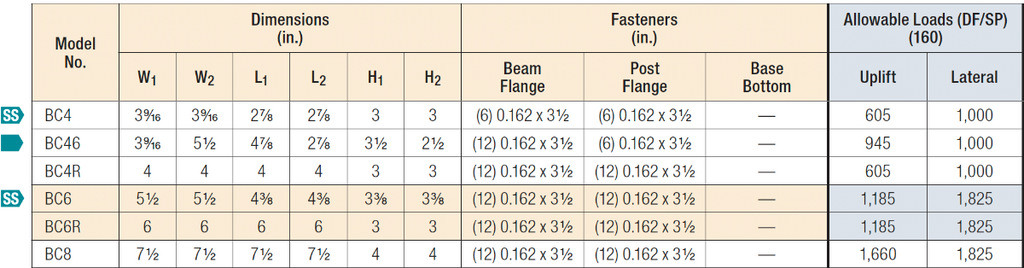

Specifications
- MPN: BC8
- Member Size: 8x
- Width 1: 7-1/2 in.
- Width 2: 7-1/2 in.
- Length 1: 7-1/2 in.
- Length 2: 7-1/2 in.
- Height 1: 4 in.
- Height 2: 4 in.
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails or 16d x 2 1/2" joist hanger nails (sold separately)
- Country of Origin: United States
Approved Applications
- Connecting posts or columns to wood decks
- Patio cover post-to-beam connections
- Light-duty cap or base applications requiring uplift and lateral resistance
- Installations where top-supported structural connections are required
Downloads and Resources
Frequently Asked Questions
- What post size is the BC8 designed for?
- The BC8 is designed for a nominal 8x post size, making it the appropriate post cap selection for structural members in that dimension category.
- What fasteners should be used to install the BC8?
- The BC8 should be installed with 16d common nails or 16d x 2 1/2" joist hanger nails for proper load performance and a secure connection.
- Is the BC8 suitable for outdoor use in corrosive environments?
- Yes. The BC8 features a G90 zinc galvanized coating that provides extra corrosion resistance, making it well suited for outdoor applications such as decks and patio covers where exposure to moisture is a concern.
- Can the BC8 be used for fences or unbraced carports?
- No. The BC8 is not recommended for non top-supported installations such as fences or unbraced carports. It is intended for applications where the post or column is top-supported.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
