Product Description

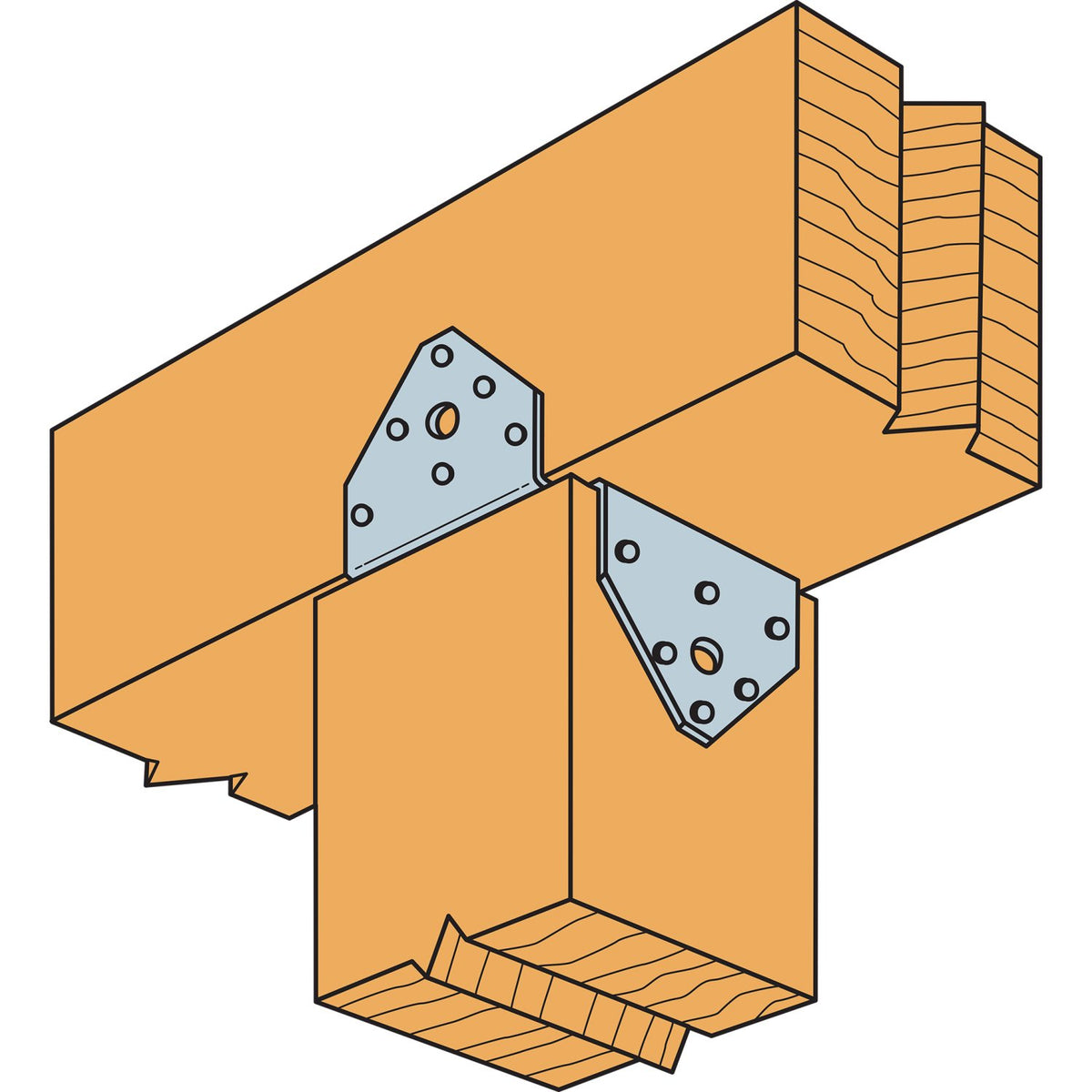

The Simpson BC6 BC Galvanized Post Cap for 6x by Simpson is a dual-purpose post cap and base engineered to create a positive, secure connection between a 6x post and a wood deck. Built from 18-gauge steel with a G90 zinc galvanized coating for superior corrosion resistance, the BC6 delivers a stronger, more reliable connection than angled nailing or screw fastening alone - making it an ideal choice for decks, patio covers, and other top-supported post applications.
Key Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post Size: 6x
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: BC6
- Member Size: 6x
- Width 1: 5-1/2 in.
- Width 2: 5-1/2 in.
- Length 1: 4-3/8 in.
- Length 2: 4-3/8 in.
- Height 1: 3-3/8 in.
- Height 2: 3-3/8 in.
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails (sold separately)
- Country of Origin: United States
Approved Applications
- Decks and wood deck post connections
- Patio covers and top-supported post assemblies
- Light cap or base applications where a dual-purpose post cap/base is required
Downloads and Resources
Frequently Asked Questions
- What size post is the BC6 designed to fit?
- The BC6 is designed for a nominal 6x post size, making it suitable for standard 6x lumber used in decks, patio covers, and similar top-supported structures.
- Why is the BC6 a better fastening solution than angled nailing or screw fastening?
- The BC6 provides a positive mechanical connection that is stronger than angled nailing or screw fastening. It also reduces the chance of the post splitting and eliminates the need to nail into end grain, which is a weaker and less reliable fastening method.
- Is the BC6 suitable for use in outdoor or exposed environments?
- Yes. The BC6 features a G90 zinc galvanized coating that provides extra corrosion resistance, making it well-suited for outdoor applications such as decks and patio covers where exposure to moisture is a concern.
- Can the BC6 be used for fences or unbraced carports?
- No. The BC6 is not recommended for non top-supported installations such as fences or unbraced carports. It is intended for top-supported applications only, such as decks and patio covers.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
