Product Features
Product Description
The Simpson Strong-Tie ABW44Z ABW ZMAX Galvanized Adjustable Standoff Post Base for 4x4 is a heavy-duty post base engineered by Simpson Strong-Tie to securely attach a 4x4 post or column to existing hardened concrete. Designed for decks, patio covers, and other top-supported structures, it combines a protective 1-inch standoff, slotted adjustability, and a G185 ZMAX galvanized finish to deliver maximum uplift performance with outstanding corrosion resistance in demanding exterior environments.
Key Features

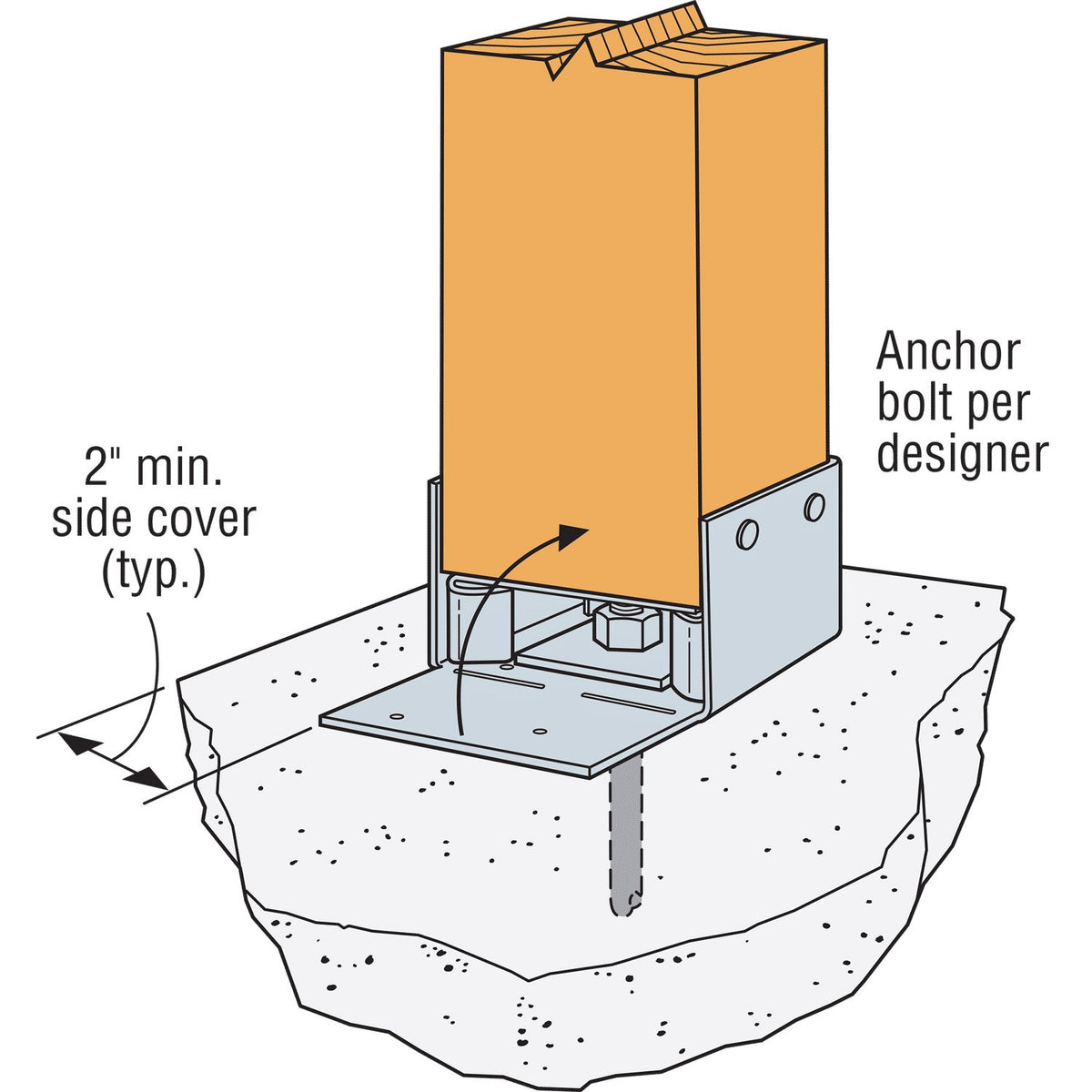

- Attaches a post to existing concrete for decks, patio covers and other top-supported structures
- Features 1-in. standoff to help prevent rot at post end
- Slotted for adjustability
- Designed for versatility, cost-effectiveness and maximum uplift performance
- Nominal post size: 4x4
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Made in the United States
Specifications
- Model Number: ABW44Z
- Nominal Post Size: 4x4
- Gauge: 16

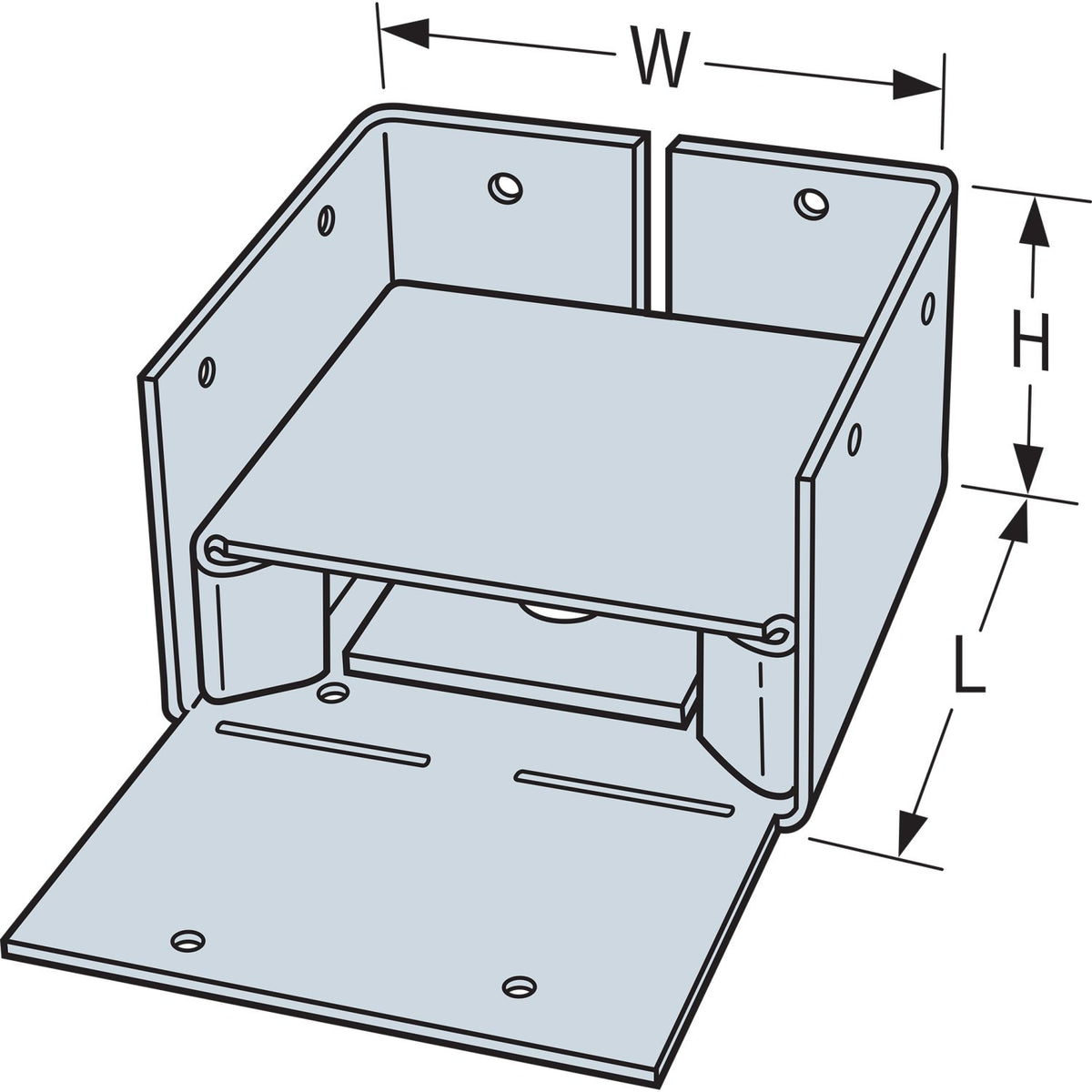

- Width (W): 3 9/16 in.
- Height (H): 2 1/4 in.
- Length (L): 3 9/16 in.
- Coating / Finish: ZMAX
- Install With: 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws (sold separately)
- Country of Origin: United States
Approved Applications
- Deck construction - securing 4x4 posts to existing concrete footings
- Patio covers and pergolas - attaching support columns to concrete slabs
- Other top-supported structures requiring a post-to-concrete connection
- Exterior and treated-wood applications where enhanced corrosion resistance is required
Frequently Asked Questions
- What type of concrete can the ABW44Z be installed into?
- The ABW44Z is designed for installation into existing hardened concrete, making it suitable for attaching posts to already-cured concrete footings and slabs on decks, patio covers, and similar top-supported structures.
- Why does the ABW44Z feature a 1-inch standoff?
- The 1-in. standoff lifts the base of the post above the concrete surface, which helps prevent direct contact with moisture that can accumulate on concrete. This design feature helps avoid post-end rot, extending the service life of the post in exterior applications.
- What fasteners are required to install the ABW44Z?
- The ABW44Z is approved for installation with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws. Because the base features a ZMAX (G185) galvanized finish, hot-dip galvanized fasteners meeting the specifications of ASTM A153 are required to maintain compatibility with the coating.
- What is ZMAX galvanization and why does it matter for this post base?
- ZMAX is a G185 hot-dip galvanized coating applied to the 16-gauge steel base that provides a significantly thicker zinc layer than standard galvanization. This extra corrosion resistance makes the ABW44Z especially well-suited for exterior environments and applications involving treated lumber, where contact with preservative chemicals could accelerate corrosion on lesser-coated hardware.
Note: Product dimensions and/or nail or screw holes may differ from picture. Please see item description for specifications.
