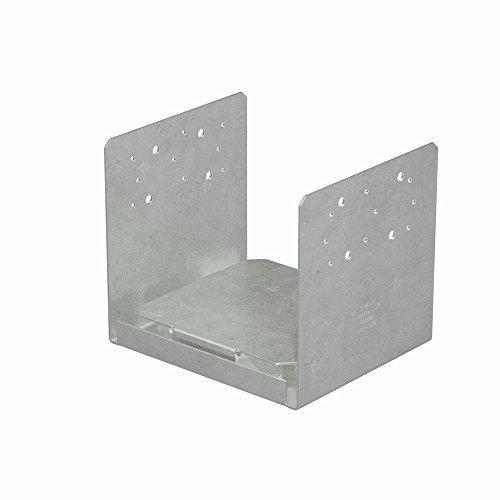

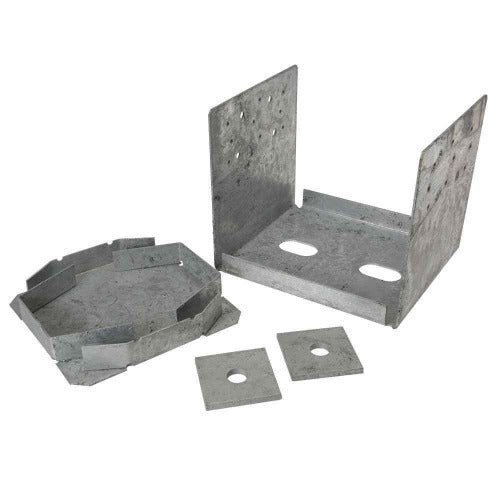

The Simpson ABU88RHDG Adjustable Standoff Post Base is engineered by Simpson to securely attach rough 8x8 wooden posts to existing concrete in high-capacity structural applications. Its built-in 1-inch standoff keeps post ends elevated above the concrete surface to help prevent moisture-related rot, while a slotted anchor hole allows for on-site adjustability during installation. Finished with hot-dip galvanization for superior corrosion resistance, this post base is purpose-built for exterior settings, treated-lumber applications, and structures that must meet elevated uplift demands from seismic or high-wind loading.

Key Features

• Slotted anchor hole in the base - provides flexibility around the anchor bolt so you can fine-tune post positioning without having to reset your anchor, saving time and reducing installation errors on the job site
• Built-in 1-inch standoff design - keeps the post end lifted away from direct contact with concrete, helping prevent rot and meeting code requirements for structural posts in basements or areas exposed to weather or water splash
• Engineered for increased uplift loads - delivers high-capacity resistance to earthquake and wind forces, making it a reliable choice for seismic zones and high-wind regions where structural performance is critical
• Hot-dip galvanized finish - provides a thicker, more durable layer of corrosion protection than standard coatings, making this post base well suited for exterior installations and use with treated lumber where moisture and chemical exposure are a concern
• Attaches with nails, Strong-Drive SD Connector screws, or bolts - gives installers the flexibility to use the fastening method that best fits the application, without being locked into a single hardware type
• Accepts 0.162 in. x 3-1/2 in. nails - compatible with a specific, clearly defined fastener so you can source the correct hardware with confidence before work begins

Why This Product

• Adjustability built in from the start - the slotted base hole means minor anchor bolt misalignments do not require you to start over, making this post base a practical and cost-effective solution for connecting large structural posts to existing concrete foundations
• Long-term durability in demanding environments - hot-dip galvanization is specifically recommended for exterior and treated-wood applications where standard finishes can fail prematurely, helping protect your structural investment against corrosion over the life of the installation
• Code-compliant standoff for moisture-prone locations - the 1-inch standoff meets code requirements for structural posts in basements and weather-exposed areas, removing guesswork and helping inspections go smoothly on projects where compliance is non-negotiable
• High-capacity uplift performance for safety-critical construction - designed to handle the increased uplift loads that come with seismic and wind loading, this post base supports the structural integrity needed in regions where building codes require enhanced connection strength

Specifications

• MPN: ABU88RHDG
• Brand: Simpson Strong-Tie
• Nominal Post Size: Rough 8x8
• Width: 7 in.
• Length: 8 in.
• Height: 6-3/4 in.
• Coating: Hot-Dip Galvanized
• Finish: Hot-Dip Galvanized
• Gauge: Base 14; Strap 10
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
• Country of Origin: United States

Approved Applications

• Attaching wooden posts to existing concrete foundations in high-capacity structural applications
• Structural posts installed in basements where code compliance for standoff height is required
• Exterior post installations exposed to weather or water splash
• Applications using treated lumber where enhanced corrosion resistance is necessary
• Seismic and high-wind construction where increased uplift load performance is critical

Frequently Asked Questions

What post size is the ABU88RHDG designed to fit?

The ABU88RHDG is designed for a nominal Rough 8x8 post size, making it suitable for large structural post applications requiring high-capacity connections to concrete.

Why does this post base feature a 1-inch standoff?

The built-in 1-inch standoff design helps prevent rot at the end of the post by keeping the wood elevated and away from direct contact with the concrete surface. This design also meets code requirements for structural posts installed in basements or in areas exposed to weather or water splash.

What makes the hot-dip galvanized finish important for this post base?

Hot-dip galvanization (HDG) provides a thicker, more durable layer of corrosion protection compared to standard coatings, making the ABU88RHDG well-suited for exterior installations and applications involving treated lumber, where standard finishes may degrade more quickly.

How does the slotted anchor hole improve installation?

The slot in the base enables flexibility around the anchor bolt position, allowing for easier and more precise post placement even when the anchor bolt is not perfectly positioned - reducing the need for repositioning the anchor during installation.

Note: Product dimensions may differ from picture. See item description for specifications.
