Product Description
The Simpson BC4 BC Galvanized Post Cap for 4x by Simpson is a dual-purpose post cap and base engineered to provide a positive, secure connection between a 4x post and a wood deck or structure. Built from 18-gauge steel with a G90 zinc galvanized coating for superior corrosion resistance, the BC4 delivers stronger, more reliable connections than angled nailing or screw fastening alone - making it an ideal choice for decks, patio covers, and other top-supported light-duty applications.
Key Features
- Provides a positive connection for a post to a wood deck
- Stronger than angled nailing or screw fastening
- Reduces the chance of the post splitting and eliminates nailing into end grain
- Not recommended for non top-supported installations (such as fences or unbraced carports)
- Nominal post size: 4x
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance

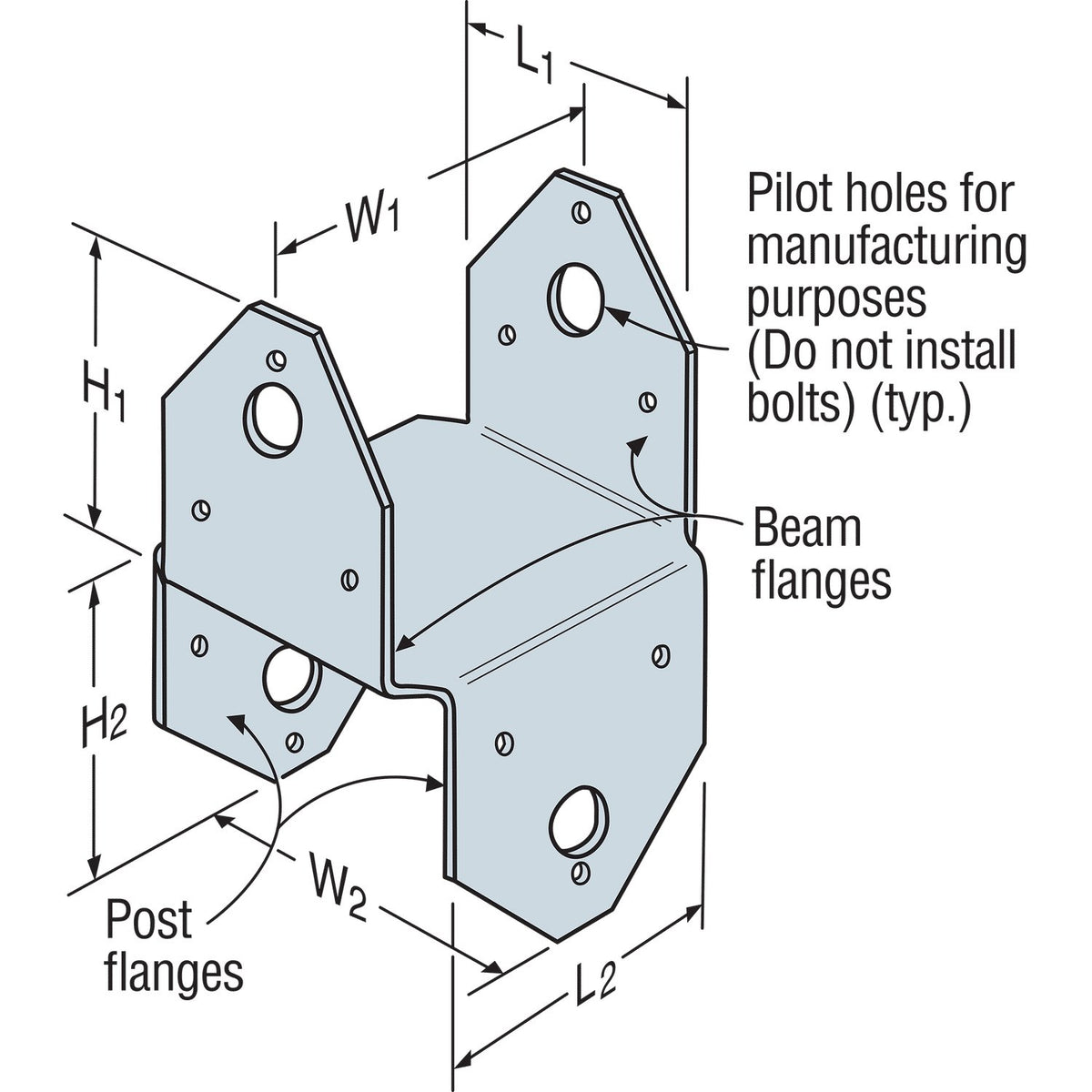

Specifications
- MPN: BC4
- Member Size: 4x
- Width 1: 3-9/16 in.
- Width 2: 3-9/16 in.
- Length 1: 2-7/8 in.
- Length 2: 2-7/8 in.
- Height 1: 3 in.
- Height 2: 3 in.
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails or #10 x 1-1/2 in. Strong-Drive SD screws (sold separately)
- Country of Origin: United States
Downloads and Resources
Frequently Asked Questions
- What is the BC4 post cap used for?
- The BC4 is a dual-purpose post cap and base designed for light-duty applications such as connecting a 4x post to a wood deck or patio cover. It provides a positive mechanical connection that is stronger than angled nailing or screw fastening.
- What fasteners should be used to install the BC4?
- The BC4 should be installed with 16d common nails or #10 x 1-1/2 in. Strong-Drive SD screws for a proper and secure installation.
- Is the BC4 suitable for use in outdoor or high-moisture environments?
- Yes. The BC4 features a G90 zinc galvanized coating, which provides extra corrosion resistance, making it well suited for outdoor applications such as decks and patio covers where exposure to moisture is a concern.
- Can the BC4 be used for fences or unbraced carports?
- No. The BC4 is not recommended for non top-supported installations such as fences or unbraced carports. It is intended for top-supported light-duty applications only.
