Product Description

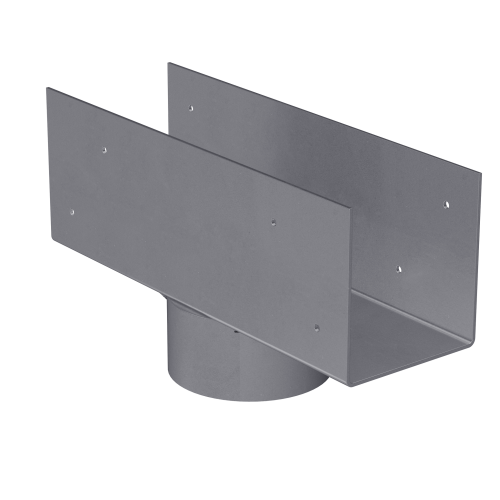

The Simpson LCC7-3.5 LCC 7-1/8 in. Column Cap for 3-1/2 in. Outside Diameter Lally Column is a heavy-duty structural connector engineered by Simpson Strong-Tie to deliver a higher-capacity column-to-beam connection in new construction or replacement applications. Designed specifically to be welded to the lally column and attach to the girder, this column cap features integrated side plates that capture the beam for a safer, more precise installation process than standard cap plates.
Key Features
- Provides adequate bearing length for larger girder reactions
- Cap fits over column for precise positioning and welding
- Designed specifically to work with 3-1/2 in. outer diameter lally columns
- Seat width: 7-1/8 in.
- Beam width: 7 in. LVL/PSL/LSL
- Made from 12-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- Model Number: LCC7-3.5
- Gauge: 12
- Seat Width: 7-1/8 in.
- Lally Column Outside Diameter: 3-1/2 in.
- Member Size: 7 in. LVL/PSL/LSL
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
- Country of Origin: United States
Frequently Asked Questions
- What size lally column is the LCC7-3.5 designed to fit?
- The LCC7-3.5 is designed specifically to work with lally columns that have a 3-1/2 in. outside diameter. The cap fits over the column for precise positioning prior to welding.
- What type of beam or girder is compatible with this column cap?
- This column cap is compatible with 7 in. LVL/PSL/LSL engineered lumber beams and girders. The 7-1/8 in. seat width provides adequate bearing length for larger girder reactions.
- How is the LCC7-3.5 installed?
- The column cap is designed to be welded to the lally column and then attached to the girder. It installs with 0.162 in. x 3-1/2 in. nails. The side plates capture the beam, enabling a safer installation process than standard cap plates.
- What material and finish is the LCC7-3.5 made from?
- The LCC7-3.5 is made from 12-gauge steel and features a Simpson Strong-Tie gray paint finish for corrosion resistance and durability in structural applications.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
