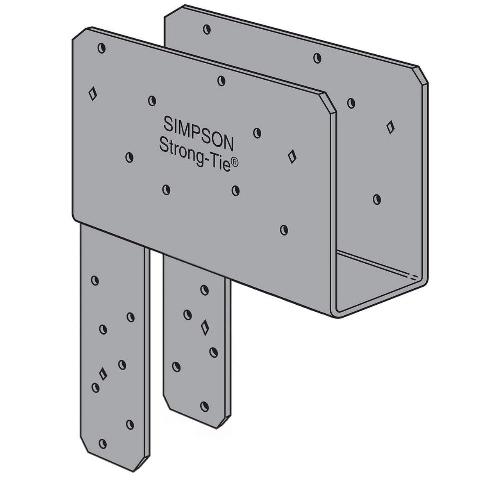

The Simpson ECCQ98SDS2.5ROT 8-3/4 in. Beam, 8x Post End Column Cap with Rotated Straps and SDS2.5 Screws is a Simpson Strong-Tie engineered connector built to create strong, reliable column-to-beam connections in end-of-beam wood construction applications. Its extended bearing seat reaches beyond the side of the column, increasing the surface area over which load is distributed and delivering a more secure structural connection at beam endpoints. Fabricated from 3 gauge steel and finished in Simpson Strong-Tie Gray paint, this column cap arrives ready to install with all required fasteners included.

Key Features

• End-of-beam configuration - purpose-built for end-of-beam applications so builders get a correctly engineered connection without adapting standard hardware to fit an unsupported use case.
• Extended bearing seat - the seat projects beyond the side of the column, spreading the beam load over a greater surface area and reducing concentrated stress at the connection point.
• Rotated strap orientation - the "ROT" designation means the straps are rotated 90 deg. from the standard position, accommodating specific framing configurations where a conventional orientation would not fit.
• Includes 28 Strong-Drive SDS Heavy-Duty Connector Screws - 14 dedicated to the beam and 14 to the post, so installation begins immediately without sourcing separate fasteners.
• SDS screw attachment vs. through bolts - the 1/4 in. x 2-1/2 in. Strong-Drive SDS screws attach to a greater net section area of the column than bolt attachment, yielding a stronger connection with a lower profile and faster installation.
• 3 gauge steel construction with Simpson Strong-Tie Gray paint finish - heavy-gauge material provides structural integrity while the factory-applied finish helps protect the connector in typical wood construction environments.
• Made in the United States - domestic production supports consistent quality standards for a structural connector where performance matters.

Why This Product

• Everything needed for installation is in the box - with 28 Strong-Drive SDS Heavy-Duty Connector Screws already included, there are no additional fastener purchases required, saving time and keeping the job moving.
• Engineered specifically for end-of-beam post-to-beam connections - unlike general-purpose connectors adapted to fit, this cap is designed from the ground up for the end-column use case, giving structural confidence in applications where beam terminus connections are critical.
• SDS screws provide a stronger column attachment than comparable bolt connections - by engaging a greater net section area of the column, the included screws deliver a high-strength connection while keeping hardware low-profile and installation straightforward.
• Rotated strap design adds installation flexibility - the 90 deg. rotated strap configuration means this connector fits framing layouts where a standard-orientation cap would conflict with surrounding structure, reducing the need for field modifications.

Specifications

• Model Number: ECCQ98SDS2.5ROT
• Beam Width: 8-3/4 in.
• Dimension W1: 8-7/8 in.
• Dimension W2: 7-1/2 in.
• Dimension L: 8-1/2 in.
• Dimension H: 7 in.
• Material: 3 gauge Steel
• Finish: Simpson Strong-Tie Gray paint
• Fasteners Included: 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws - Beam (14), Post (14)
• Country of Origin: United States

What's Included

• 1 - ECCQ98SDS2.5ROT End Column Cap (rotated straps)
• 14 - 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws for beam attachment
• 14 - 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws for post attachment

Options

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg.


Frequently Asked Questions

What type of fasteners are used with the ECCQ98SDS2.5ROT, and are they included?

This column cap is installed using 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are included with the product. A total of 28 screws are provided - 14 for the beam and 14 for the post.

Why are SDS screws preferred over standard through bolts for this connector?

The Strong-Drive SDS Heavy-Duty Connector screws provide a lower profile than standard through bolts and allow attachment to a greater net section area of the column, resulting in a stronger, cleaner connection.

What does the rotated strap configuration mean for this column cap?

The "ROT" designation indicates that the straps on this ECCQ column cap have been rotated 90 deg. from the standard orientation, accommodating specific framing conditions encountered in end-of-beam applications.

Has this column cap been engineered for high-load conditions such as seismic or wind events?

Yes. The ECCQ98SDS2.5ROT features certified welds and increased uplift load values specifically to address demands from earthquake or wind loading, providing greater confidence in high-load structural applications.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
