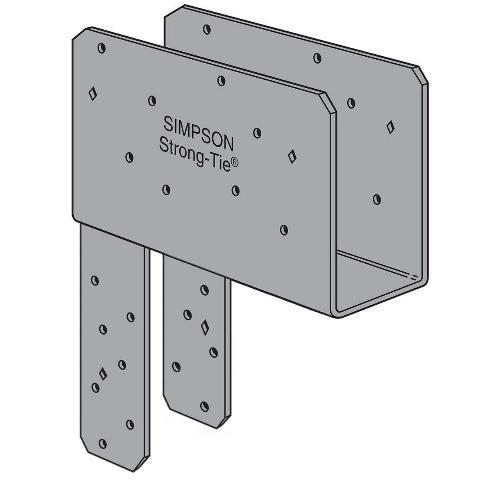

The Simpson 8x Beam, 6x Post End Column Cap with Rotated Straps and SDS2.5 Screws is a Simpson engineered connector built to create reliable column-to-beam connections at end-of-beam locations in wood construction. The rotated strap configuration adds versatility for framing layouts where standard strap orientation is not practical, while the extended bearing seat transfers load from the beam beyond the side of the column for solid, distributed support. All required Strong-Drive SDS Heavy-Duty Connector screws are included, so the hardware is ready to go straight from the box.

Key Features

• End-of-beam column cap design - purpose-built for end-of-beam applications in wood construction, giving builders a dedicated solution rather than a workaround with a standard cap
• Rotated strap configuration - straps can be oriented 90 deg. from the standard position, providing the flexibility to work within tight or non-standard framing layouts without requiring custom hardware
• Extended bearing seat - distributes load from the beam beyond the side of the column, reducing point stress and delivering more even load transfer across the connection
• Strong-Drive SDS Heavy-Duty Connector screws included - all 28 screws needed for full installation come in the box, attaching to a greater net section area of the column than standard bolt attachments typically allow and keeping the fastener profile low
• Heavy-gauge steel construction - the cap is formed from 3 gauge steel with a Simpson Strong-Tie Gray paint finish, providing structural integrity suited to demanding post-and-beam applications
• Made in the United States - domestic manufacturing supports consistent quality control for a structural connector where precision fit matters

Why This Product

• Everything needed for installation is included - with 14 beam screws and 14 post screws packed in the box, there is no separate trip to source compatible fasteners, keeping the job moving efficiently
• Rotated straps solve real framing challenges - the ability to rotate straps 90 deg. means this cap can accommodate framing conditions where a fixed-strap cap would require compromise or custom fabrication
• SDS screws outperform bolts at the connection point - Strong-Drive SDS Heavy-Duty Connector screws engage a greater net section area of the column compared to standard through bolts, and their lower profile keeps the finished connection clean and compact
• Engineered for a specific beam and post pairing - designed precisely for an 8x beam and 6x post combination, this cap delivers a dimensionally accurate fit that a general-purpose connector cannot match

Specifications

• Model Number: ECCQ86SDS2.5ROT
• Beam Width (W1): 7 1/2 in.
• Post Width (W2): 5 1/2 in.
• Length (L): 8 1/2 in.
• Height (H): 7 in.
• Material: 3 gauge steel
• Finish: Simpson Strong-Tie Gray paint
• Fasteners Included: 14 beam screws and 14 post screws (1/4" x 2 1/2" SDS)
• Screw Type: 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
• Country of Origin: United States

What's Included

• 1 ECCQ86SDS2.5ROT end column cap (rotated straps)
• 14 x 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws for beam attachment
• 14 x 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws for post attachment

Options

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg.


Frequently Asked Questions

What beam and post sizes is the ECCQ86SDS2.5ROT designed to fit?

This column cap is engineered for use with an 8x beam and a 6x post. The W1 dimension of 7 1/2 in. corresponds to the beam width, and the W2 dimension of 5 1/2 in. corresponds to the post width.

What fasteners are required to install this column cap, and are they included?

Installation requires 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws. All required screws are included with the cap - 14 screws for the beam and 14 screws for the post - so no separate hardware purchase is necessary.

Why are SDS screws used instead of standard through bolts?

The Strong-Drive SDS Heavy-Duty Connector screws provide a lower profile than standard through bolts and attach to a greater net section area of the column, resulting in a stronger and cleaner connection with faster installation.

What is the gauge and finish of the steel used in this column cap?

The ECCQ86SDS2.5ROT is constructed from 3 gauge steel and finished with Simpson Strong-Tie Gray paint, providing durability and corrosion resistance appropriate for structural wood construction applications.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
