Product Description

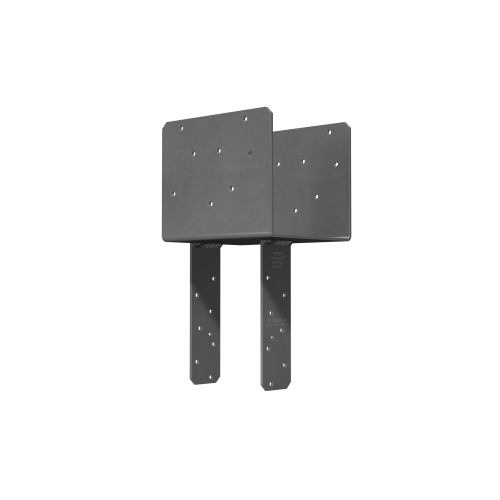

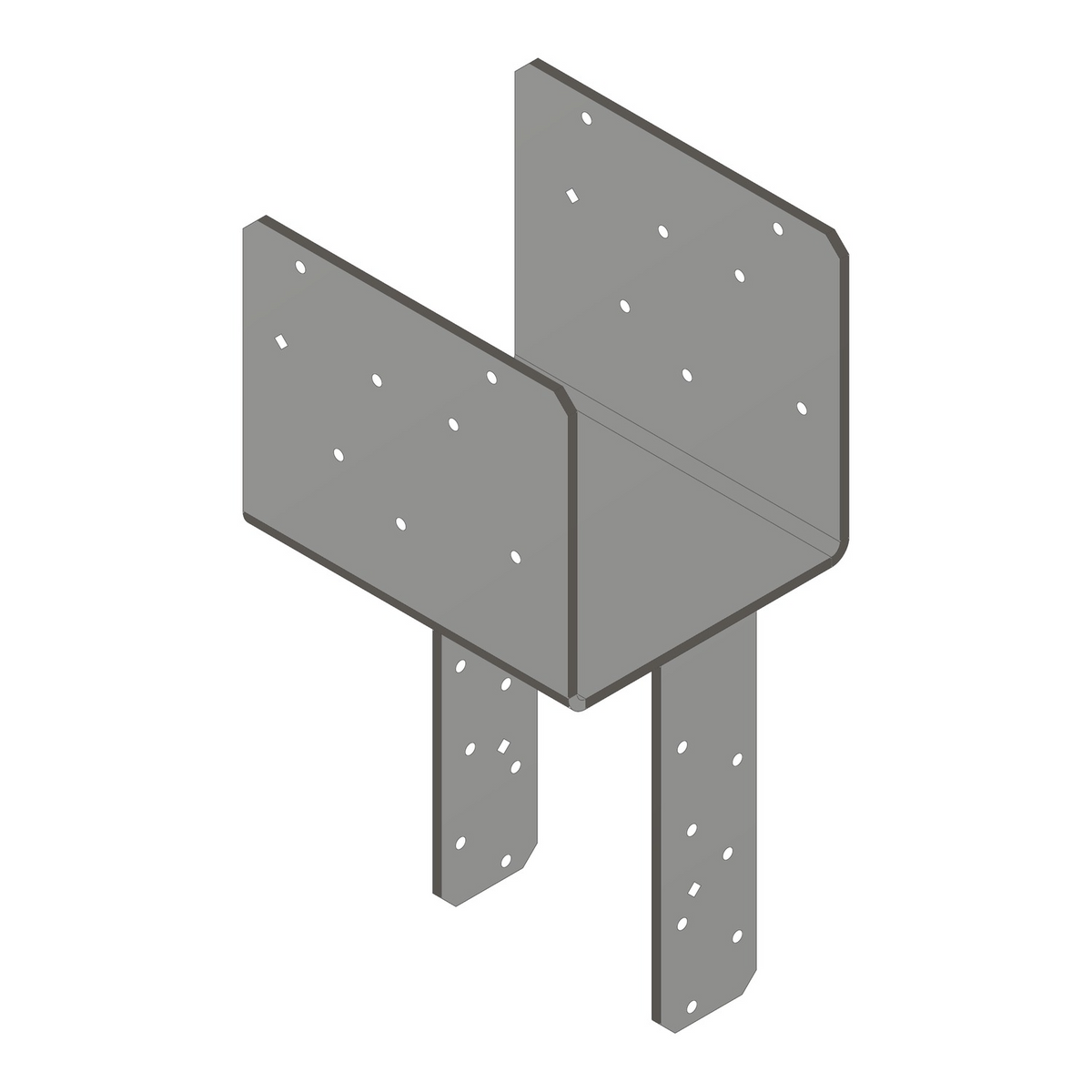

The Simpson ECCQ76SDS2.5 ECCQ End Column Cap delivers a high-capacity connection for column-beam combinations in end-of-beam wood construction, purpose-built for pairing a 6-3/4 in. wide beam with a 6x post. Engineered and tested by Simpson Strong-Tie to meet the highest quality standards, this structural connector is the trusted choice of engineers and contractors for both residential and commercial building projects where a strong, reliable column-to-beam interface is required. Included Strong-Drive SDS Heavy-Duty Connector screws mean the hardware you need is ready to go right out of the box.
Key Features
- Strong-Drive SDS screw installation - eliminates the need to source separate fasteners and speeds up the installation process, getting the job done faster without sacrificing connection strength.
- Greater net section area compared to bolts - SDS screws preserve more of the column's cross-section, maintaining the structural integrity of the post at the connection point.
- Lower-profile connection than standard through bolts - reduces protrusion at the joint for a cleaner finish and easier integration with surrounding materials.
- Heavy-duty 7-gauge steel construction - provides the rigidity and load-bearing capacity needed for demanding structural column-to-beam applications.
- Simpson Strong-Tie gray paint finish - offers a consistent, finished appearance suitable for exposed structural connections in both residential and commercial settings.
Why This Product
- Everything needed for installation is included - the 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws come packaged with the cap, so there are no extra trips to source compatible fasteners before work can begin.
- Built for high-capacity structural demands - engineered specifically for end-of-beam column-to-beam connections, this cap is designed to handle the loads and performance requirements that engineers and contractors depend on in real-world construction.
- Faster, stronger fastening method over traditional bolts - SDS screw installation is quicker to drive than through bolts and results in a larger net section area at the post, meaning less material is displaced at the connection and the column retains more of its original strength.
- Manufactured to verified quality standards - Simpson Strong-Tie connectors are engineered, tested, and produced to exacting specifications, making this cap a code-compliant choice for projects where performance and accountability matter.
Specifications
- Manufacturer Part Number (MPN): ECCQ76SDS2.5
- Product Type: ECCQ End Column Cap
- Beam Width: 6-3/4 in.
- Width 2: 5-1/2 in.
- Width 1: 6-7/8 in.
- Height: 7 in.
- Length: 8-1/2 in.
- Compatible Post Size: 6x Post
- Material: 7-Gauge Steel
- Coating / Finish: Simpson Strong-Tie Gray Paint
- Fastener Type: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws (included)
- Country of Origin: United States
Approved Applications
- End-of-beam column-to-beam connections in wood construction
- High-capacity structural connections requiring a strong column-beam interface
- Residential and commercial building projects requiring code-compliant structural connectors
- Projects where a lower-profile fastener connection is preferred over standard through bolts
What's Included
- 1x Simpson Strong-Tie ECCQ76SDS2.5 End Column Cap
- 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
Options
-
Contact us for Configurable Options and Special orders
- Straps may be rotated 90 deg.
Frequently Asked Questions
- What beam and post sizes is the ECCQ76SDS2.5 compatible with?
- The ECCQ76SDS2.5 is designed for use with a 6-3/4 in. wide beam and a 6x post, making it suitable for column-beam combinations in end-of-beam wood construction applications.
- What fasteners are required for installation, and are they included?
- This end column cap installs with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included in the package. No additional fasteners are needed.
- Why use SDS screws instead of standard through bolts for this connection?
- Strong-Drive SDS screws offer several advantages over standard through bolts: they provide faster installation, a greater net section area of the column, and a lower-profile finished connection compared to traditional bolt attachments.
- What material and finish is the ECCQ76SDS2.5 made from?
- The ECCQ76SDS2.5 is fabricated from heavy-duty 7-gauge steel and finished with Simpson Strong-Tie gray paint for durability and long-term structural reliability.
