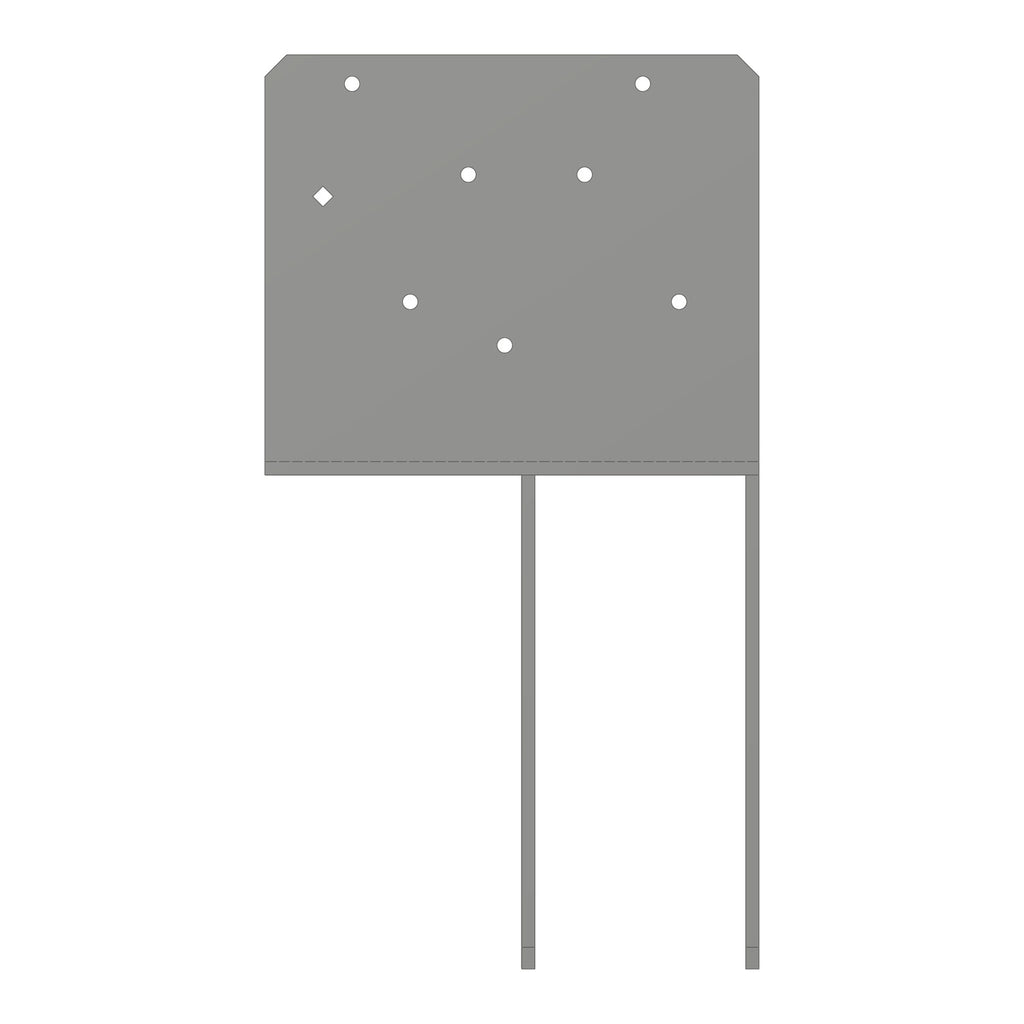

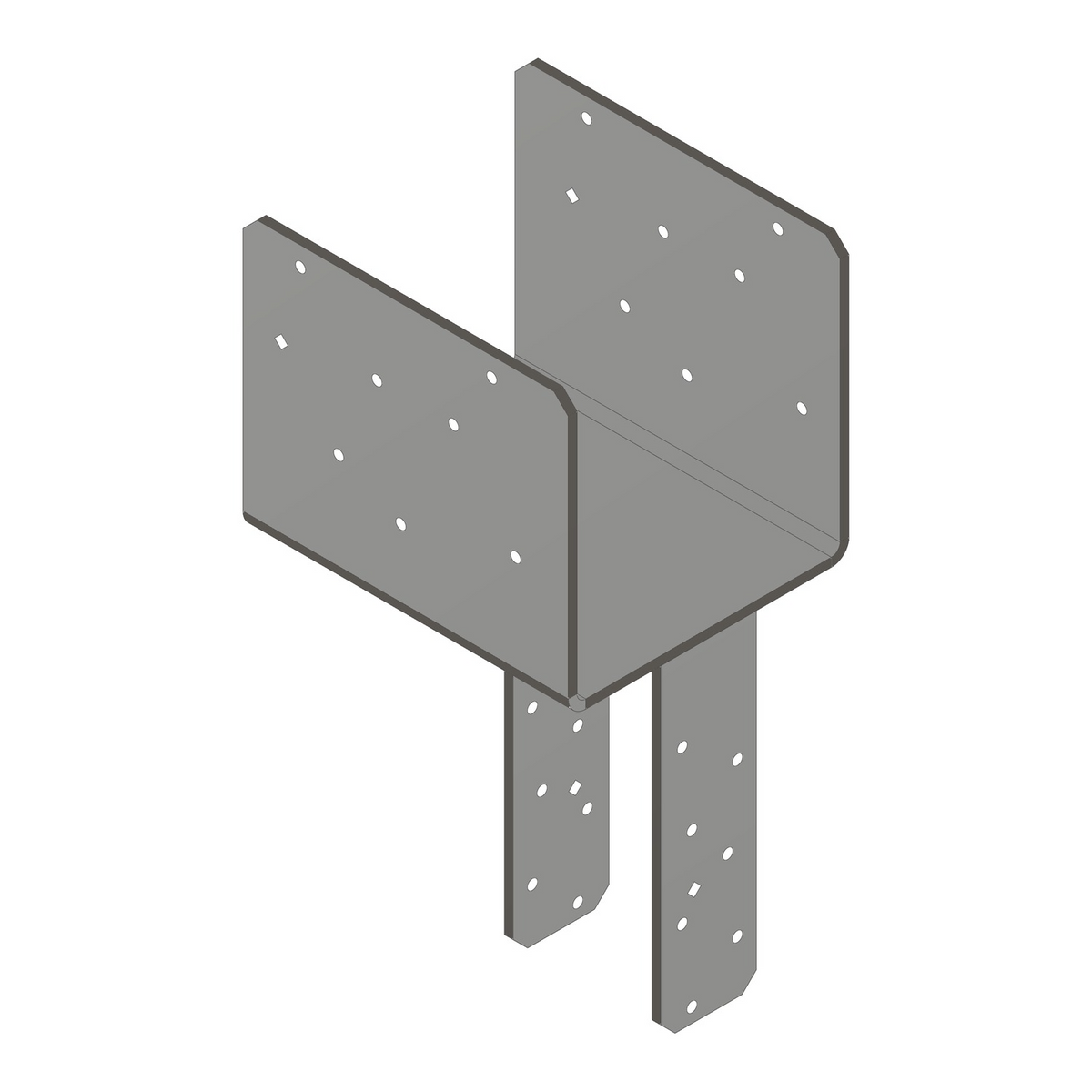

The Simpson ECCQ End Column Cap for 6-3/4 in. Beam and 4x Post with Strong-Drive SDS Screws is a Simpson Strong-Tie engineered connector built to deliver a high-capacity connection for column-beam combinations in wood construction applications. Formed from heavy-duty 7-gauge steel and finished in Simpson Strong-Tie gray paint, this end column cap gives engineers and contractors a reliable, code-friendly fastening solution designed and tested to perform at the highest quality standards.

Key Features

• Installs with included Strong-Drive SDS screws - eliminates the need to source separate fasteners and gets the connection done faster than traditional bolt-based methods
• SDS screws preserve greater net section area of the column compared to bolts - maintains more of the column's structural integrity at the connection point, supporting overall load capacity
• Low-profile SDS screw attachment - results in a cleaner, less obtrusive installation compared to standard through bolts, which is especially valuable in visible or finished applications
• Sized for a 6-3/4 in. beam paired with a 4x post - engineered for a precise fit with engineered lumber and heavy timber column-beam assemblies, reducing guesswork on the job
• Made from 7-gauge steel with Simpson Strong-Tie gray paint finish - provides durable construction and a consistent appearance across compatible Simpson Strong-Tie connector installations

Why This Product

• Engineered for high-capacity column-beam connections - this connector is purpose-built for end-of-beam applications where a strong, reliable column-to-beam tie is required, giving buyers confidence the connection is up to the structural demands of the project
• Faster installation with no extra hardware needed - the included 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws mean crews can go straight to installation without hunting down compatible fasteners separately
• Trusted Simpson Strong-Tie engineering and manufacturing - designed, tested, and made to the quality standards that engineers and contractors rely on for both residential projects and code-compliant commercial construction
• Straps may be rotated 90 deg. - this built-in flexibility accommodates varying field conditions and framing orientations, reducing the need for workarounds or custom fabrication on site

Specifications

• Model Number (MPN): ECCQ74SDS2.5
• Member Size (Beam Width): 6-3/4 in.
• Width 2: 3-5/8 in.
• Width 1: 6-7/8 in.
• Height: 7 in.
• Length: 8-1/2 in.
• Post Size: 4x
• Material Gauge: 7-gauge steel
• Finish/Coating: Simpson Strong-Tie Gray Paint
• Install With: 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
• Country of Origin: United States

What's Included

• 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws

Options

• Contact us for Configurable Options and Special orders

• Straps may be rotated 90 deg.


Frequently Asked Questions

What beam width is the ECCQ74SDS2.5 designed to fit?

The ECCQ74SDS2.5 is specifically designed for use with a 6-3/4 in. wide beam in combination with a 4x post, making it ideal for engineered lumber and heavy timber column-beam applications.

What fasteners are used with this end column cap, and are they included?

This connector installs with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, which are included with the product. These screws enable faster installation and provide a greater net section area of the column compared to standard bolts.

What are the advantages of SDS screws over standard through bolts?

Strong-Drive SDS screws provide a lower profile than standard through bolts, which results in a cleaner installation. They also allow attachment to a greater net section area of the column, improving the overall strength and integrity of the connection.

What material and finish is the ECCQ74SDS2.5 made from?

The ECCQ74SDS2.5 is manufactured from 7-gauge steel and features a Simpson Strong-Tie gray paint finish, providing durability suited for structural wood construction applications.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
