The Simpson End Column Cap for 7 in. Beam Legs Omitted ECCO7 1/8 is a heavy-duty structural connector from Simpson engineered for end-of-beam column-to-beam connections on top of steel members. Its legless design allows for field-welded attachment directly to steel columns and beams, making it a practical choice for structural steel applications where a clean, high-strength connection is required at the end of a 7 in. beam. The seat extends the bearing surface beyond one side of the column to effectively distribute load and reinforce connection integrity, while the heavy-gauge steel construction delivers long-term reliability in demanding conditions - including applications subject to elevated uplift forces from earthquake or wind events.

Key Features

• End-of-beam, legless column cap design - eliminates pre-attached legs so the connector can be field-welded directly to steel columns, pipe columns, or other column configurations, giving installers precise control over placement and fit.
• Extended seat bearing surface - the seat projects beyond one side of the column to spread load more broadly across the connection, reducing stress concentrations and reinforcing structural performance at the beam end.
• 3-gauge steel construction - heavy material thickness provides the load capacity and rigidity needed for structural steel applications without adding unnecessary bulk to the connection assembly.
• Simpson Strong-Tie Gray paint finish - factory-applied coating helps protect the connector during storage and installation in typical structural environments.
• Approved for seismic and high-wind applications - rated for connections subject to increased uplift loads from earthquake or wind forces, making it suitable for projects with demanding code requirements.
• Compatible with pipe and alternative column profiles - can be ordered and field-welded to pipe or other non-standard column shapes, expanding its usefulness beyond conventional square or rectangular steel columns.
• Made in the United States - domestic production supports consistent quality standards and traceability for projects where origin matters.

Why This Product

• Purpose-built for end-of-beam steel connections - unlike general-purpose column caps, this connector is specifically designed for end-of-beam positioning on top of steel members, so it fits the application without requiring field modification or workarounds.
• Field-weld flexibility for complex steel projects - the legless configuration means the designer controls the weld, enabling custom attachment to steel columns, pipe, or other profiles that standard leg-based connectors cannot accommodate.
• Engineered load distribution where it matters most - the extended seat bearing surface addresses one of the most common weak points in end-of-beam connections by spreading the transferred load, which is especially valuable in seismic zones and high-wind regions.
• From a trusted structural connector brand - Simpson has a long-standing reputation in engineered structural hardware, giving builders, engineers, and inspectors a familiar, widely recognized product at the connection point.

Specifications

• Model Number: ECCO7 1/8
• Manufacturer Part Number (MPN): ECCO7 1/8
• Beam Width: 7 in.

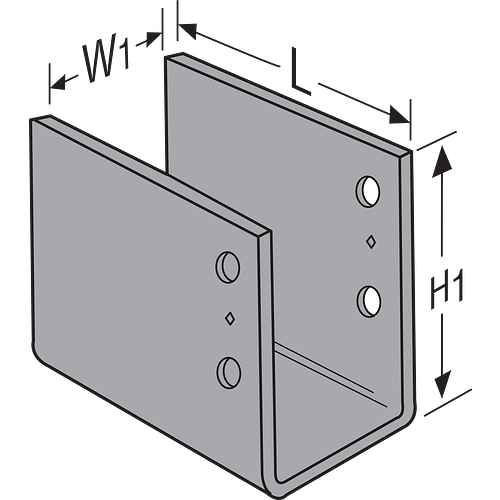

• Dimension W1: 7 1/8 in.
• Dimension L: 10 1/2 in.
• Dimension H1: 8 in.
• Material: 3-Gauge Steel
• Finish: Simpson Strong-Tie Gray Paint
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections on top of steel members
• Field-welded structural connections to steel columns and beams
• Connections requiring enhanced load distribution through extended bearing surface
• Structural applications subject to increased uplift loads from earthquake or wind forces
• Field-welded connections to pipe or other column configurations

Installation Notes

• Use all specified fasteners as directed
• Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2018 NDS, section 12.1.3.2)
• Bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
• Contact engineered wood manufacturers for connections involving engineered wood products
• Welding by designer for field-welded applications

Options

• Contact us for Configurable Options and Special orders
• For special, custom, or rough-cut lumber sizes, provide dimensions.
• ECCO may be ordered for field welding to pipe or other columns. Weld by designer.

Frequently Asked Questions

What beam size is the ECCO7 1/8 designed to fit?

The ECCO7 1/8 is designed specifically for a 7-inch beam, making it important to confirm your beam dimensions match before purchasing.

How is the ECCO7 1/8 attached to a steel column or beam?

The ECCO7 1/8 features a legless design that enables field-welded attachment directly to steel columns and beams, making it well-suited for structural steel applications requiring precise, high-strength connections.

What material and finish is used on the ECCO7 1/8?

The ECCO7 1/8 is constructed from heavy-duty 3-gauge steel and finished in Simpson Strong-Tie Gray paint for corrosion resistance and durability in demanding construction environments.

Is the ECCO7 1/8 suitable for applications with earthquake or wind loading requirements?

Yes, the ECCO7 1/8 features uplift loads that have been increased to accommodate earthquake or wind loading requirements, and its bolt spacing meets NDS code requirements for optimal structural performance.
