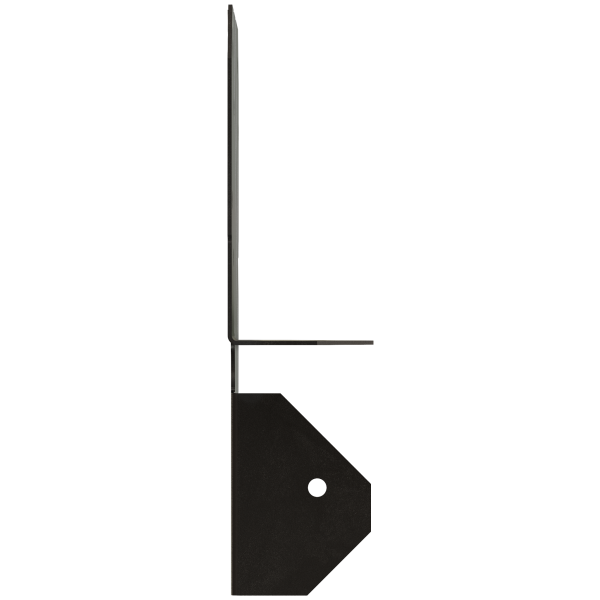

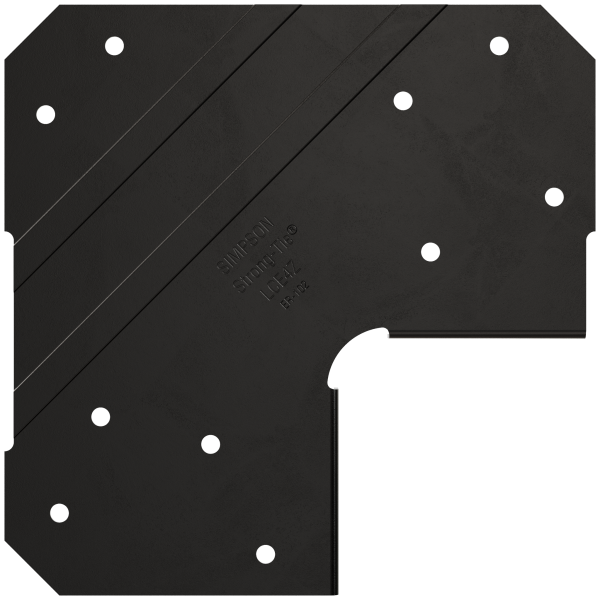

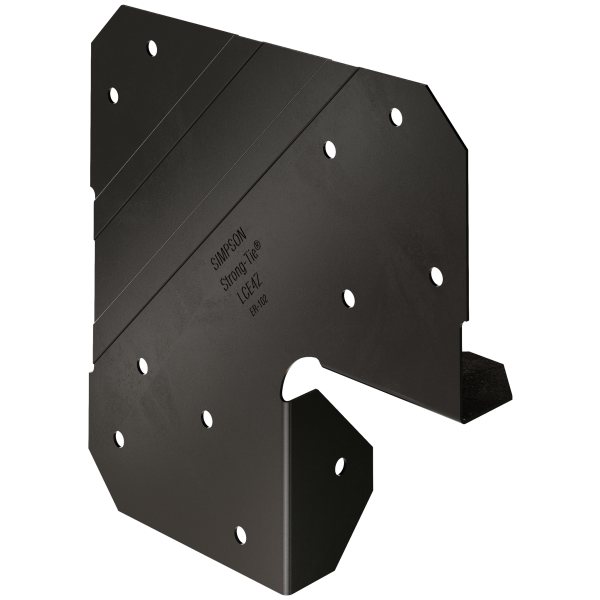

The Simpson Outdoor Accents LCEPC ZMAX Black Powder-Coated End Post Cap is a structural connector engineered to secure beam ends to the top of a wood post, transferring load into the post and ultimately into the foundation. Its versatile, two-piece design accommodates nominal 4x or 6x lumber, making it a practical choice for a wide range of beam-to-post configurations in both new and retrofit construction. A ZMAX galvanized steel construction paired with a black powder-coat finish delivers superior corrosion resistance alongside a clean, decorative look suited to exposed outdoor structures.

Key Features

• Always install in pairs; universal design eliminates need for rights and lefts - one SKU covers both sides of the connection, reducing the chance of ordering mismatched hardware
• Suitable for new or retrofit construction - works on fresh builds and existing structures alike, so it fits a broad range of project types
• Tested and approved for mitered end conditions - gives builders confidence when working with angled cuts without guessing at structural adequacy
• Eliminates nailing into end grain - avoids a weaker fastening method, resulting in a more reliable beam-to-post connection
• Accommodates nominal 4x or 6x lumber - a single connector adapts to two common post and beam sizes, adding flexibility on the job
• Made from 20-gauge steel - provides a sturdy, consistently formed connector that holds its shape through installation and long-term use
• ZMAX galvanized with a black powder-coat finish - combines superior corrosion resistance with a refined appearance that complements decorative outdoor framing

Why This Product

• One connector, two lumber sizes - the two-piece design handles both nominal 4x and 6x members, cutting down on the number of different parts needed for a project with varied post and beam dimensions
• Load-rated performance when installed in pairs - the connector is engineered and tested to carry real structural loads, giving builders and inspectors a verifiable, code-friendly solution for end beam-to-post connections
• Approved for mitered ends - tested acceptance for mitered end conditions sets this cap apart for pergolas, arbors, and decorative structures where angled cuts are common
• Finish built for outdoor exposure - the ZMAX galvanized base coat topped with a black powder coat addresses both long-term corrosion protection and the clean, finished look that open-air timber framing demands

Specifications

• Model Number: LCE4PC
• Gauge: 20
• Coating: ZMAX
• Finish: ZMAX Galvanized with Black Powder Coat
• Height: 5-3/8 in.
• Member Size: 4x or 6x
• Country of Origin: United States

Approved Applications

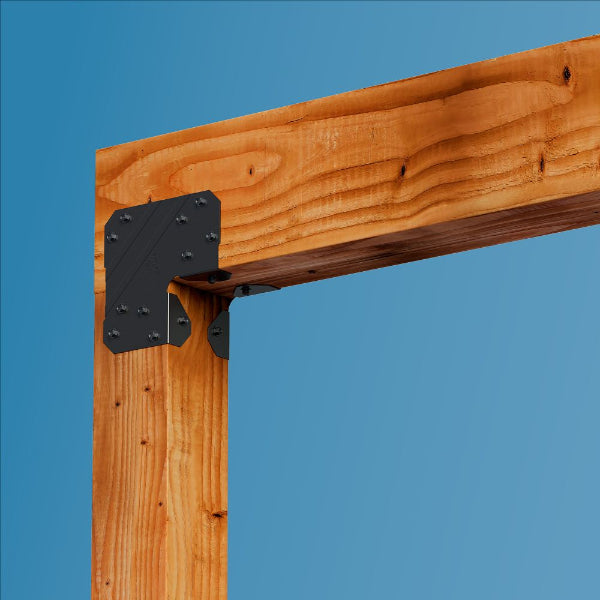

• End beam-to-post connections in new construction
• Retrofit construction beam-to-post connections
• Mitered end conditions (tested and approved)
• Load-rated installations when installed in pairs

Install With

• Installs with (12) #10 x 1-1/2 in. Outdoor Accents Connector screws, sold separately (Model: SD10112DBB)

Frequently Asked Questions

Can the LCE4PC be used with both 4x and 6x lumber?

Yes. The versatile, two-piece design of the LCEPC can accommodate nominal 4x and 6x lumber, making it a flexible solution for a variety of beam and post configurations.

Does this end post cap need to be installed in pairs?

Yes. The LCE4PC must always be installed in pairs. When installed in pairs, it is load rated. The universal design eliminates the need for separate right-hand and left-hand versions.

What hardware is required to install the LCE4PC?

The LCE4PC installs with (12) #10 x 1-1/2 in. Outdoor Accents Connector screws, sold separately (Model: SD10112DBB).

What finish does the LCE4PC have, and is it suitable for outdoor use?

The LCE4PC features a ZMAX galvanized steel construction with a black powder-coat finish, providing superior corrosion resistance that makes it well suited for outdoor applications.
