Product Description

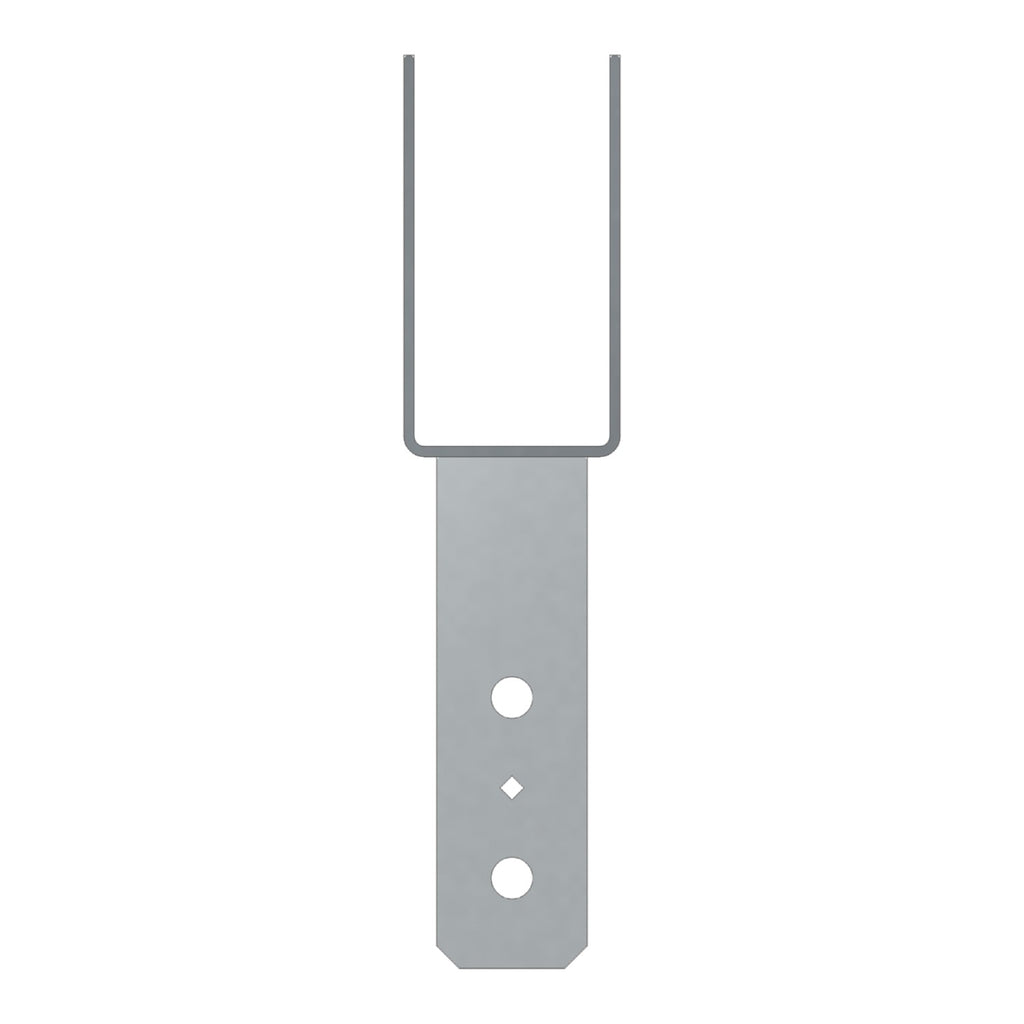

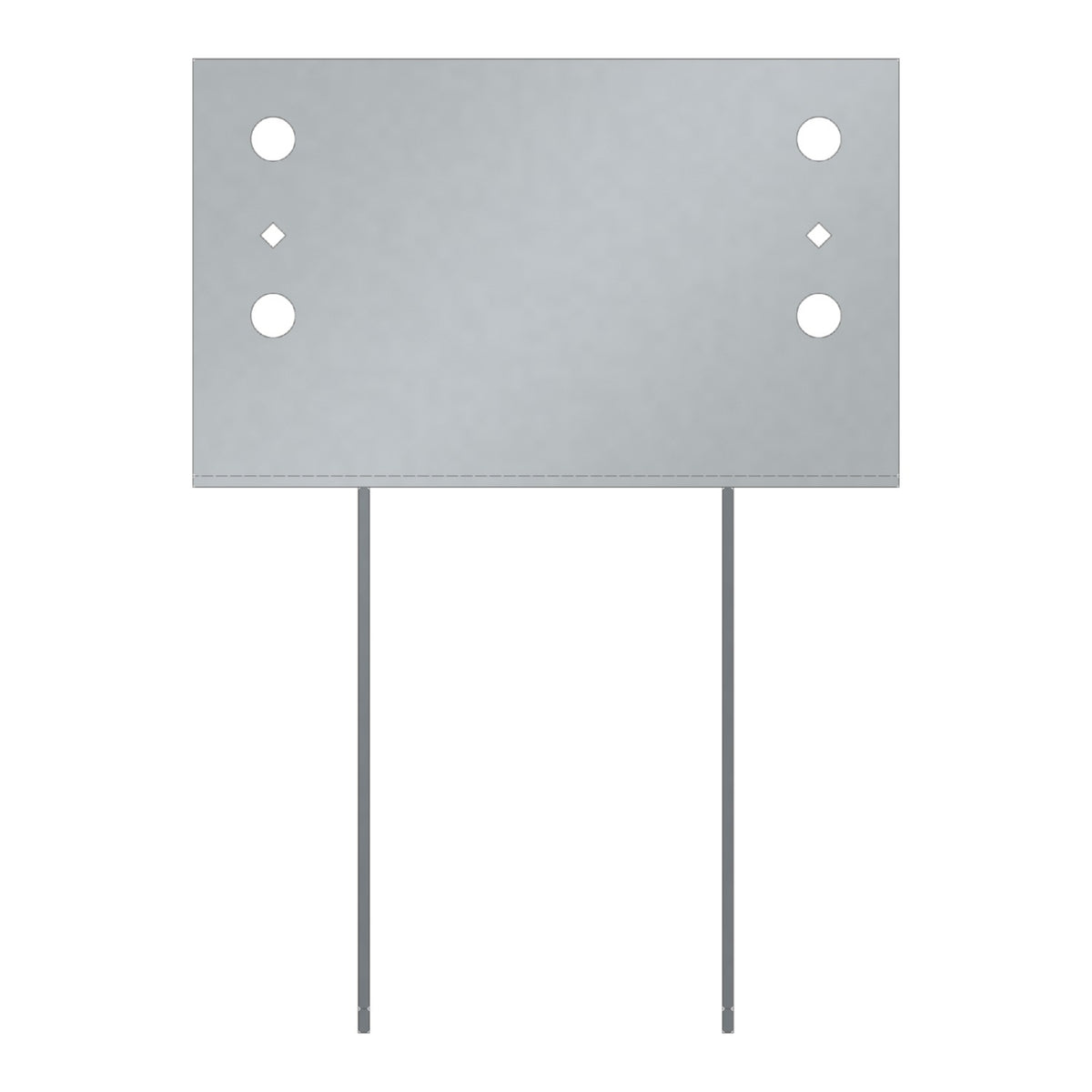

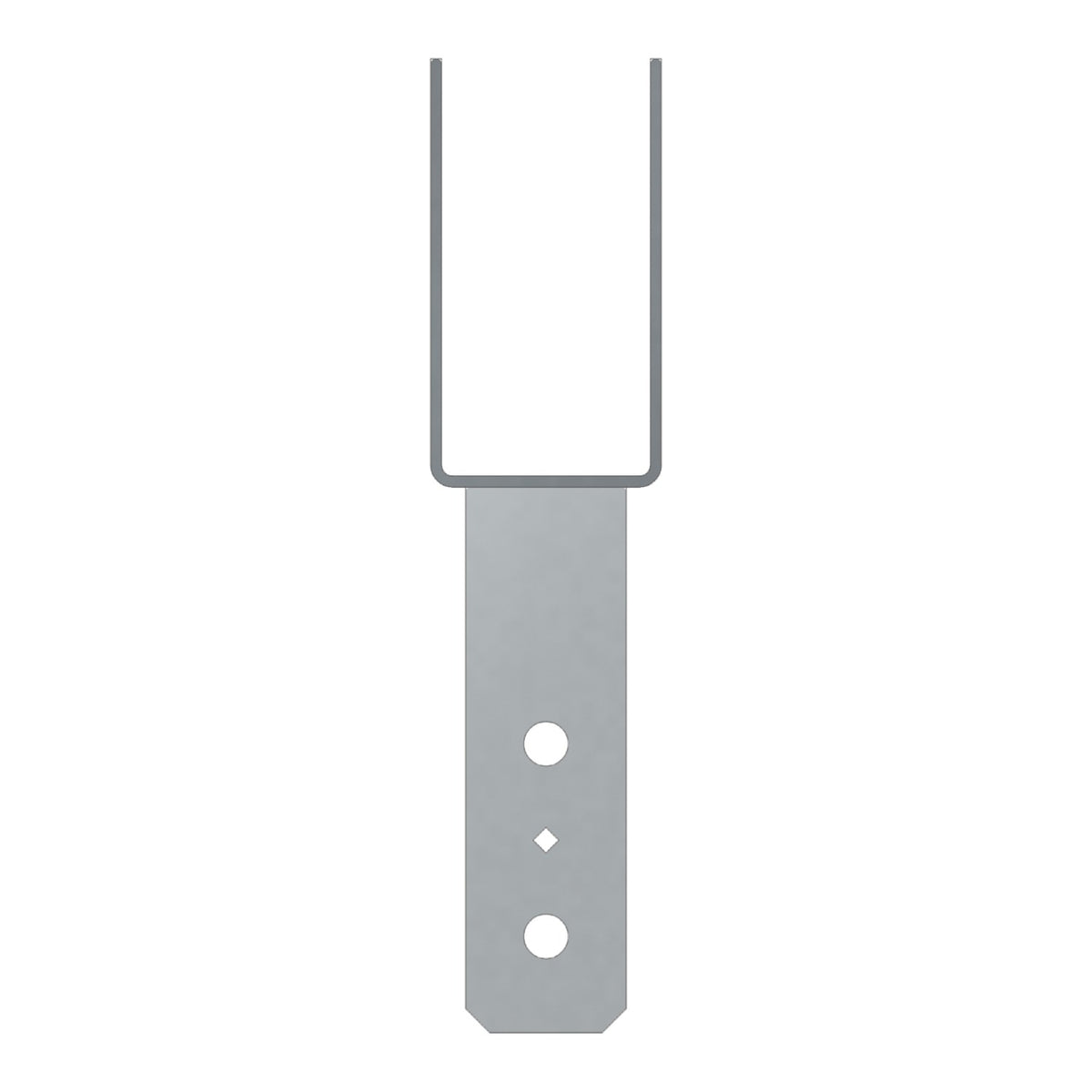

Simpson CC3 1/4-6 CC Column Cap for 3-1/8 in. Beam, 6x Post by Simpson Strong-Tie is engineered to deliver strong, reliable column-to-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column, helping to distribute the load from the beam and provide critical support for the connection. Built from heavy-duty 7-gauge steel with a Simpson Strong-Tie gray paint finish, this column cap is designed to perform under demanding structural and environmental conditions including earthquake and wind loading.
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- Beam width: 3-1/8 in.
- Nominal post size: 6x
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- MPN: CC3 1/4-6
- Brand: Simpson Strong-Tie
- Member Size: 3-1/8 in. Beam, 6x Post
- Beam Width: 3-1/8 in.
- Width 1: 3-1/4 in.
- Width 2: 5-1/2 in.
- Length 1: 11 in.
- Height 1: 6-11/16 in.
- Nominal Post Size: 6x
- Gauge: 7-gauge steel
- Coating/Finish: Simpson Strong-Tie Gray Paint
- Install With: (6) 5/8-in. diameter bolts (sold separately)
- Post Size: 4x6
- Country of Origin: ZZ
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated where W1 >= W2.
- For special, custom, or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)
Material
CC3 1/4, CC44, CC46, CC48, CC4.62, CC64, CC66, CC68, CC6-7 1/8 - 7 gauge; all others - 3 gauge
Frequently Asked Questions
- What size beam and post is the CC3 1/4-6 designed to work with?
- The CC3 1/4-6 is designed for use with a 3-1/8 in. beam width and a nominal 6x post size, making it suitable for standard engineered and dimensional lumber applications in wood construction.
- What fasteners are required to install the CC3 1/4-6?
- This column cap is installed with (6) 5/8-in. diameter bolts. The bolt spacing is designed to meet NDS code requirements to ensure optimal structural performance.
- Is the CC3 1/4-6 suitable for use in high-wind or seismic zones?
- Yes. The CC3 1/4-6 features uplift loads increased for earthquake or wind loading, making it appropriate for use in regions subject to high-wind or seismic activity when installed according to applicable codes and guidelines.
- What material and finish is used on the CC3 1/4-6?
- The CC3 1/4-6 is fabricated from 7-gauge steel and finished with Simpson Strong-Tie gray paint, providing a durable surface suitable for interior and protected wood construction applications.
Note: Product dimensions and/or screw/bolt holes may differ from picture.
