Product Features
Product Description

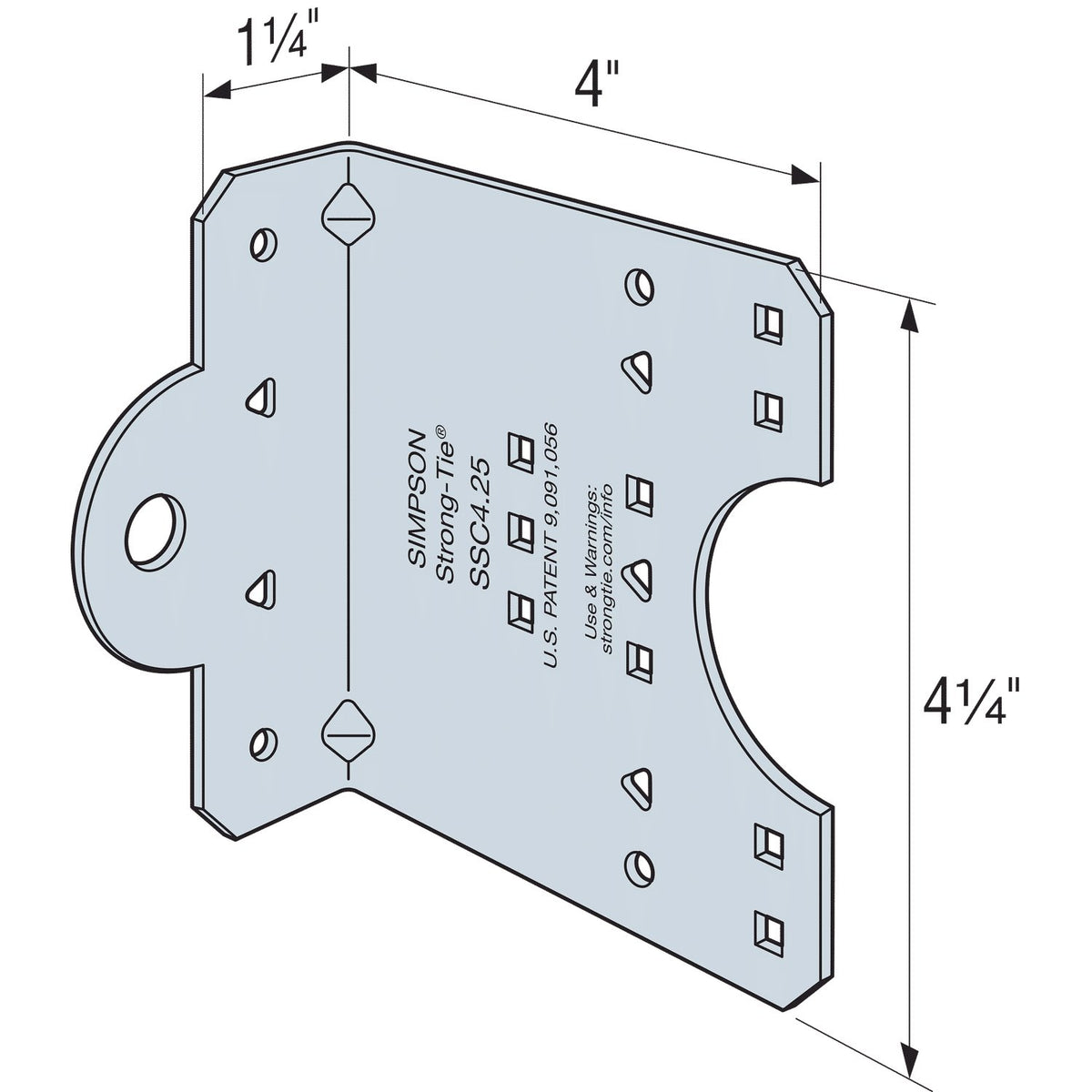

The Simpson Strong-Tie SSC4.25-R50 is a 4-1/4 in. 14-gauge galvanized steel-stud clip engineered for cold-formed steel construction. These versatile utility clips are designed for a variety of stud-to-stud and stud-to-structure applications, enabling easy installation on the open side of studs or joists with flanges up to 3 in. long and return lips up to 3/4 in. A wide pattern of strategic fastener locations allows the SSC to accommodate a variety of traditional and custom designs. This package includes 50 clips, making it an efficient choice for projects requiring reliable steel-framing connections.
Key Features
- Prepunched holes reduce installation cost by eliminating predrilling
- Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
- Angle lengths accommodate either hard-side or soft-side attachment for studs and joists with return lips up to 3/4 in.
- 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in.
- Also suitable for u-channel bridging
- Galvanized (G90) coating for extra corrosion resistance
- Made from 14-gauge (68 mil) steel for durable, structural-grade performance
- Comes in a convenient 50-count package

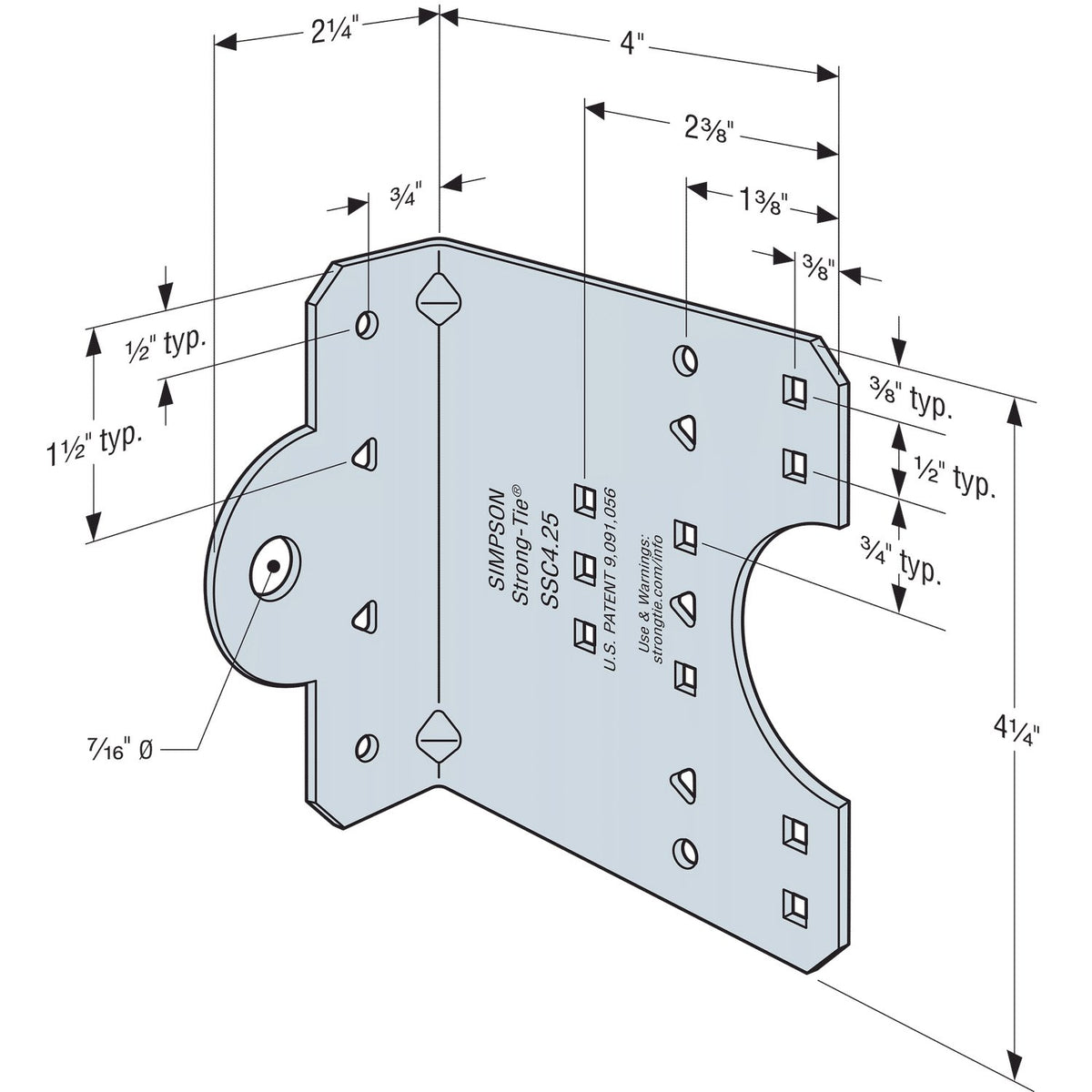

Specifications
- Attribute: Value
- Model Number: SSC4.25-R50
- Gauge: 14-gauge (68 mil)
- Leg Length: 4-1/4 in.
- Dimensions: 2-1/4 x 4 in.
- Coating / Finish: Zinc Galvanized, G90
- Material: Steel
- Package Quantity: 50
- Country of Origin: United States
- Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
Approved Applications
- Stud-to-stud connections in cold-formed steel framing
- Stud-to-structure connections in cold-
Frequently Asked Questions
- What types of applications are these clips designed for?
- The Simpson Strong-Tie SSC4.25-R50 clips are versatile utility clips designed for a variety of stud-to-stud and stud-to-structure applications in cold-formed steel construction. They are also suitable for u-channel bridging and can accommodate both traditional and custom designs.
- What stud and joist dimensions are compatible with these clips?
- These clips are designed for easy installation on the open side of studs or joists with flanges up to 3 in. long and return lips up to 3/4 in. The 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in., and the angle lengths accommodate either hard-side or soft-side attachment.
- What material and coating are used on these clips?
- The clips are made from 14-gauge (68 mil) steel and feature a Zinc Galvanized G90 coating, which provides extra corrosion resistance for demanding construction environments.
- Do these clips require predrilling during installation?
- No predrilling is required. The clips come with prepunched holes, which reduce installation cost and time. The intuitive fastener hole positions are strategically placed to ensure accurate clip installation and provide flexibility across a wide range of design and application requirements. Fastener type may vary by application; refer to the Simpson Strong-Tie catalog or strongtie.com for guidance.
