Freud 10 mm Brad Point Bit (BP10057L) is an industrial-grade carbide tipped boring bit engineered for use in multiple spindle boring machines, delivering precise, clean holes through a wide range of wood-based and composite materials. With a 10 mm diameter and left-hand rotation, this bit is purpose-built for automatic or manual multi-spindle boring operations where accuracy and extended tool life are critical. Whether you are working with hardwoods, softwoods, veneered plywood, solid surface materials, or composites, this Freud boring bit provides the consistent performance that production woodworking environments demand.

Key Features

• Industrial carbide tips - resist wear and heat buildup during high-volume boring operations, extending the usable life of the bit well beyond what standard high-speed steel tips offer.

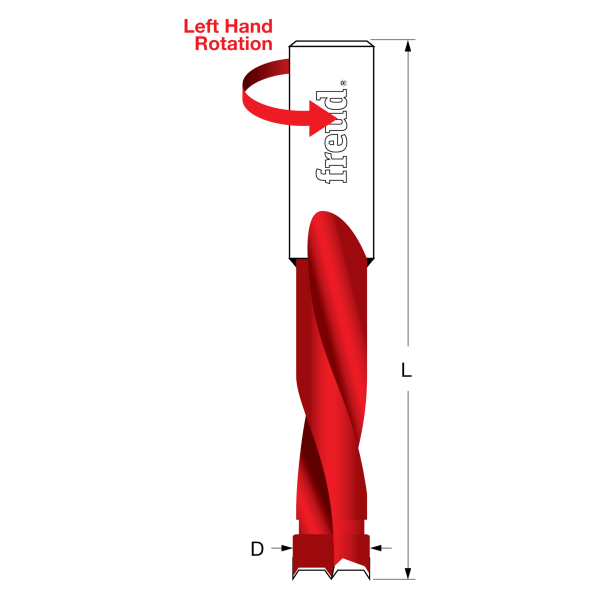

• Left-hand (LH) rotation - matched to left-hand spindle positions on multi-spindle boring machines, ensuring proper chip ejection and clean entry holes on the correct side of the workpiece.
• 10 mm shank with adjustable top screw - provides compatibility with most boring machines, making this bit easy to install and reposition without additional adapters.
• 27 mm maximum hole depth - suited for standard panel boring tasks such as shelf pin holes, hinge cup preparation, and joinery boring in cabinet production.
• 57.5 mm overall length - provides the reach needed for typical multi-spindle machine setups while maintaining rigidity and minimizing deflection during the cut.
• Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers long-term confidence in their tooling investment.
• Designed for superior performance and maximum life - reduces downtime and replacement frequency in demanding production environments.

Why This Product

• If your operation relies on multi-spindle boring machines for cabinet, furniture, or panel production, this bit is specifically engineered for that application - not adapted from a general-purpose drill bit - giving you reliable results across composites, solid surface, veneered plywood, hardwoods, and softwoods.
• The carbide-tipped construction means you spend less time changing bits and more time producing, which is a direct advantage in high-throughput shop environments where downtime is costly.
• The 10 mm shank with an adjustable top screw makes this bit compatible with most standard boring machines, so you are not locked into proprietary tooling systems or specialty adapters.
• Backed by Freud's Limited Lifetime Guarantee, this boring bit represents a lower-risk tooling choice for shops looking to maintain consistent quality without frequent replacement costs.

Specifications

• Brand: Freud
• Model Number: BP10057L
• Diameter: 10 mm
• Length: 57.5 mm
• Shank: 10 mm
• Maximum Hole Depth: 27 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Category: Brad Point Bits
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.
