Product Description

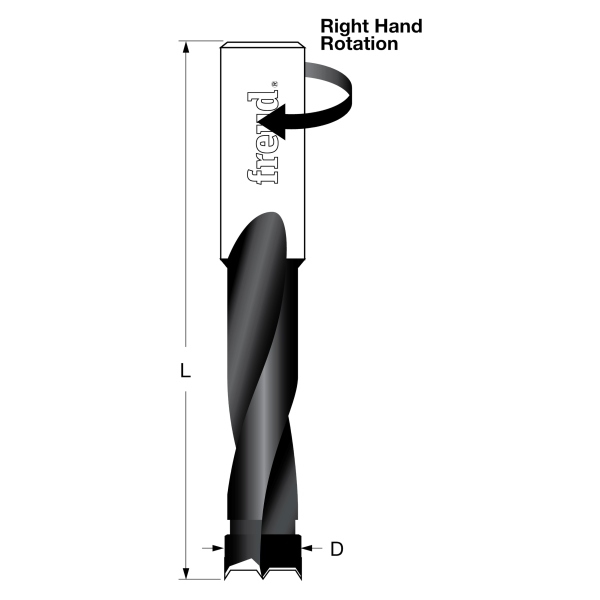

Freud 1/4" (Dia.) Brad Point Bit is an industrial-grade carbide tipped boring bit engineered for demanding woodworking and cabinet production environments. Built by Freud for use on automatic or manual multiple spindle boring machines, this right-hand rotation brad point bit delivers clean, precise entry points in a wide range of materials - from hardwoods and softwoods to composites, solid surface panels, and veneered plywood. With a 10mm shank and an adjustable top screw for broad machine compatibility, it is equally at home on a drill press or hand held drill.
Key Features
- Industrial carbide tips - provide superior hardness and edge retention compared to standard high-speed steel bits, extending tool life under the rigors of production boring
- 10mm shank with adjustable top screw - ensures compatibility with most automatic and manual multi-spindle boring machines, reducing the need for adapters or special tooling
- 1/4" diameter with 57.5mm overall length - sized for precise boring in cabinetry and furniture applications where tight dimensional accuracy is required
- 27mm maximum hole depth - suited for shelf pin holes, hardware mounting, and similar standard cabinet boring tasks without risk of over-penetration
- Right-hand rotation - matches the standard spindle direction of most production boring machines and hand held drills for predictable, consistent results
- Freud Limited Lifetime Guarantee - backs the bit against manufacturing defects, giving buyers long-term confidence in their investment
- Designed for superior performance and maximum life - carbide construction resists heat buildup and dulling even during high-volume drilling runs
Why This Product
- The industrial carbide tipped construction makes this brad point bit a reliable choice for high-volume cabinet and furniture shops that cannot afford frequent bit replacements or downtime from dull tooling.
- The 10mm shank with an adjustable top screw means this bit drops into most existing multi-spindle boring machines without modification, saving setup time on the shop floor.
- Material versatility is a genuine strength here - one bit handles composites, solid surface materials, veneered plywood, hardwoods, and softwoods, reducing the need to swap tooling between different panel types.
- The brad point tip geometry delivers a clean, centered entry point that reduces tear-out on veneer and finished surfaces, making it appropriate for visible or finished-panel applications.
Specifications
- Brand: Freud
- MPN: BP63557R
- Category: Brad Point Bits
- Diameter: 1/4"
- Length: 57.5mm
- Shank: 10mm
- Maximum Hole Depth: 27mm
- Rotation: RH
- Tools: Drill Press; Hand Held Drill
- Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
- Pack Quantity: 1
- Country of Origin: Italy
Approved Applications
- Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.
Frequently Asked Questions
What machines is this brad point bit compatible with?
This bit is supplied with a 10mm shank and an adjustable top screw, making it compatible with most automatic and manual multi-spindle boring machines. It can also be used with a drill press or a hand held drill.
What materials can this bit bore through?
This carbide tipped brad point bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods, making it a versatile choice for cabinet and furniture production.
What is the maximum hole depth this bit can achieve?
The maximum hole depth for this bit is 27mm, which is well suited for shelf pin holes, hardware mounting, and similar standard cabinet boring applications.
Does this bit come with any warranty coverage?
Yes. Freud backs this brad point boring bit with their Limited Lifetime Guarantee, providing long-term assurance against manufacturing defects.
