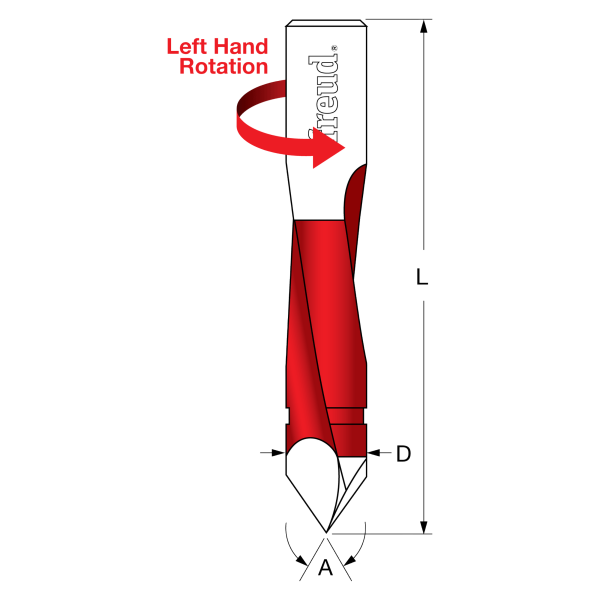

The Freud 6 mm Diameter Through Hole Bit is an industrial-grade carbide tipped boring bit engineered for precision drilling on multi-spindle machines. Built to handle demanding production environments, this bit drills clean, accurate through holes in composites, solid surface materials, veneered plywood, hardwoods, and softwoods. With a 70 mm overall length, a 10 mm shank with an adjustable top screw, and a 60 deg. point angle for precise hole location, it is a reliable choice for both automatic and manual multi-spindle boring operations as well as drill press and hand held drill use.

Key Features

• Industrial carbide tips - deliver superior cutting performance and extended tool life compared to standard steel tips, reducing downtime and replacement frequency in high-volume production settings.
• 60 deg. point angle - ensures accurate hole location for through holes, minimizing wandering and producing cleaner entry points across a wide range of wood and composite materials.
• 10 mm shank with adjustable top screw - provides compatibility with most boring machines, making this bit a versatile drop-in addition to existing multi-spindle setups without requiring special adapters.
• Left hand (LH) rotation - specifically designed for machines requiring left hand rotation, ensuring proper cutting action and optimal chip evacuation for a smooth, clean bore.
• 35 mm maximum hole depth - accommodates typical through hole applications in cabinet and furniture panel production without over-penetration risk.
• Freud Limited Lifetime Guarantee - backed by the manufacturer's guarantee, offering long-term confidence in the bit's durability and performance.

Why This Product

• Designed specifically for multi-spindle boring machines with a compatible 10 mm shank and adjustable top screw, this bit integrates easily into automatic and manual production lines without modification.
• The 60 deg. point angle is optimized for through hole work, meaning holes start cleanly and accurately - a critical factor when drilling veneered plywood or hardwood panels where surface quality matters.
• Industrial carbide tipping means this bit is built to perform over extended production runs across multiple material types, from softwoods and hardwoods to composites and solid surface materials.
• Left hand rotation makes this bit the correct choice for machines that spin counterclockwise, ensuring the cutting geometry works with the machine rather than against it for cleaner results and reduced wear.

Specifications

• Brand: Freud
• Manufacturer Part Number: TH60070L
• Category: Through Hole Bits
• Diameter: 6 mm
• Length: 70 mm
• Shank: 10 mm
• Angle: 60 deg.
• Maximum Hole Depth: 35 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines.
