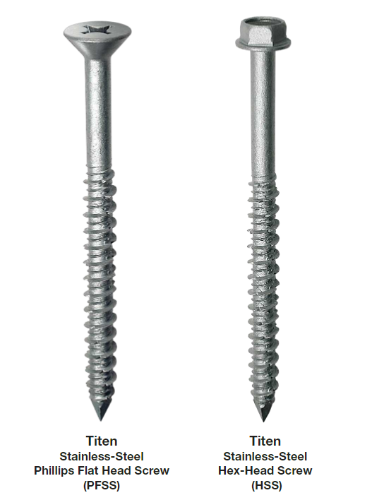

Simpson Titen 1/4 in. x 2-3/4 in. Hex-Head Stainless-Steel Concrete and Masonry Screw is an engineered anchoring solution from Simpson Strong-Tie built to fasten components securely to concrete, brick, grouted CMU, and hollow-block in environments where a medium level of corrosion resistance is required. Constructed from Type 410 stainless steel with a zinc-plated protective overcoat, this hex-head concrete screw threads directly into a pre-drilled pilot hole without requiring a separate expansion anchor, delivering reliable holding power in demanding structural and masonry applications.

Key Features

• Hex-head drive design - allows installation with standard hex drivers or wrenches, improving torque control and reducing cam-out on the job site
• Type 410 stainless steel construction with zinc-plated protective overcoat - provides a medium level of corrosion resistance for use in challenging environments where standard carbon-steel fasteners would be unsuitable
• Compatible with concrete, brick, grout-filled CMU, hollow-block, and some preservative-treated wood applications - gives contractors and specifiers versatility across a wide range of common base materials
• Direct-thread installation into a pre-drilled pilot hole - eliminates the need for a separate expansion anchor, streamlining the fastening process and saving installation time
• One appropriately sized 3/16 in. drill bit included in each box - ensures you have the correct bit on hand without a separate purchase, keeping work moving without interruption
• Trusted Simpson Strong-Tie engineering - designed to perform under the most demanding structural applications where specifiers and contractors require proven, dependable holding power

Why This Product

• Stainless steel where standard anchors fall short - the Type 410 stainless steel material paired with a zinc-plated protective overcoat makes this concrete screw a practical choice for masonry environments where moisture or mild corrosive conditions would degrade ordinary fasteners over time
• No expansion hardware required - this Titen screw anchors directly into the base material, reducing the total number of components needed on site and allowing for faster, cleaner installation in concrete, brick, and CMU applications
• Broad application coverage in a single fastener - suitability across concrete, brick, grout-filled CMU, hollow-block, and some preservative-treated wood means one screw handles a wide variety of structural anchoring tasks without switching between fastener types
• Everything needed for installation arrives in the box - the inclusion of a correctly sized drill bit means crews can begin work immediately, making this a convenient, job-ready solution backed by Simpson Strong-Tie engineering

Specifications

• Model No.: TTN25234HSS
• Diameter (in.): 1/4
• Length (in.): 2-3/4
• Drill Bit Diameter (in.): 3/16
• Material: Type 410 stainless steel
• Finish: Type 410 stainless steel, zinc plated with a protective overcoat

Approved Applications

• Concrete
• Brick
• Grout-filled CMU (concrete masonry units)
• Hollow-block applications
• Some preservative-treated wood applications

What's Included

Each pack contains (100) Stainless Steel Concrete Screws, One drill bit is included in each box.

Frequently Asked Questions

What base materials are the Simpson Titen stainless-steel hex-head screws suitable for?

These screws are suitable for use in concrete, brick, grout-filled CMU, and hollow-block applications. They are also suitable for some preservative-treated wood applications.

What size drill bit is required to install the TTN25234HSS?

A 3/16 in. diameter drill bit is required for installation. For convenience, one appropriately sized drill bit is included in each box.

What material and finish are used on these Titen screws?

The TTN25234HSS is made from Type 410 stainless steel and features a zinc-plated finish with a protective overcoat, providing a medium level of corrosion resistance suitable for challenging environments.

What are the dimensions of the TTN25234HSS Titen screw?

The screw measures 1/4 in. in diameter and 2-3/4 in. in length, making it well suited for anchoring components to concrete and masonry where a compact yet strong fastener is needed.

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
