The Simpson Titen 1/4 in. x 2-1/4 in. Phillips Flat-Head Stainless Steel Concrete and Masonry Screw is a mechanical anchor engineered by Simpson Strong-Tie for reliable, direct fastening to concrete, brick, grouted and hollow CMU, and some preservative-treated wood applications. Built from Type 410 stainless steel with a zinc-plated protective overcoat, this flat-head concrete screw is designed for environments where a medium level of corrosion resistance is required - giving specifiers and contractors a trusted anchoring solution for demanding structural applications without the need for a separate anchor or insert.

Key Features

• Phillips flat-head drive style - sits flush against the surface after installation for a clean, low-profile finish that works well when attaching components to concrete and masonry walls or floors
• Type 410 stainless steel construction with zinc-plated protective overcoat - provides a medium level of corrosion resistance, making these screws a practical choice for interior and exterior applications in moderately demanding environments
• Compatible with concrete, brick, grout-filled CMU, hollow-block masonry, and some preservative-treated wood - versatile base material coverage means fewer anchor SKUs to manage across different job site conditions
• Requires a 3/16 in. drill bit for installation - the correctly sized bit is included in each box, so installers can get to work immediately without sourcing separate tooling
• Threads directly into a pre-drilled hole - no sleeve, nut, or separate anchor component required, simplifying installation and reducing labor time on the job
• Engineered by Simpson Strong-Tie - a brand trusted by contractors and specifiers for optimum performance under demanding structural fastening applications

Why This Product

• Ready to install out of the box - each pack includes one appropriately sized 3/16 in. drill bit alongside the concrete screws, eliminating extra trips to source compatible tooling and keeping the installation process straightforward
• Corrosion resistance built into the material - the Type 410 stainless steel body combined with a zinc-plated protective overcoat makes these masonry screws a smart upgrade over standard carbon-steel alternatives in environments where moisture or mild corrosive exposure is a concern
• Broad application range across common base materials - suitable for solid concrete, brick, grout-filled and hollow-block CMU, and some preservative-treated wood, so a single fastener choice can cover multiple anchoring scenarios on the same project
• Backed by Simpson Strong-Tie engineering - Simpson mechanical anchors are designed for optimum performance in demanding structural applications, giving specifiers and contractors confidence in load-bearing and component-attachment situations alike

Specifications

• Model Number: TTN25214PFSS
• Diameter: 1/4 in.
• Length: 2-1/4 in.
• Material: Type 410 Stainless Steel
• Finish: Type 410 Stainless Steel with Zinc-Plated Protective Overcoat
• Head Style: Phillips Flat-Head
• Drill Bit Diameter: 3/16 in.

Approved Applications

• Concrete (solid and standard)
• Brick
• Grout-filled CMU (concrete masonry units)
• Hollow-block masonry
• Some preservative-treated wood applications
• Fastening electrical boxes, light fixtures, and other components to concrete and masonry surfaces in moderate-corrosion environments

What's Included

Each pack contains (100) Stainless Steel Concrete Screws, One drill bit is included in each box.

Frequently Asked Questions

What material are the Simpson TTN25214PFSS Titen screws made from?

These Titen screws are made from Type 410 stainless steel and feature a zinc-plated protective overcoat, making them suitable for applications that require a medium level of corrosion resistance.

What size drill bit is required to install the TTN25214PFSS Titen screw?

A 3/16 in. diameter drill bit is required for installation. For added convenience, one appropriately sized drill bit is included in each box.

What base materials are these stainless-steel Titen screws compatible with?

The TTN25214PFSS Titen screws are suitable for use in concrete, brick, grout-filled CMU, hollow-block masonry, and some preservative-treated wood applications.

What is the head style of the TTN25214PFSS, and why does it matter?

This screw features a Phillips flat-head design, which sits flush with or slightly below the surface of the material when fully driven. This makes it ideal for installations where a low-profile, clean finish is needed, such as when fastening electrical boxes or light fixtures to concrete or masonry.

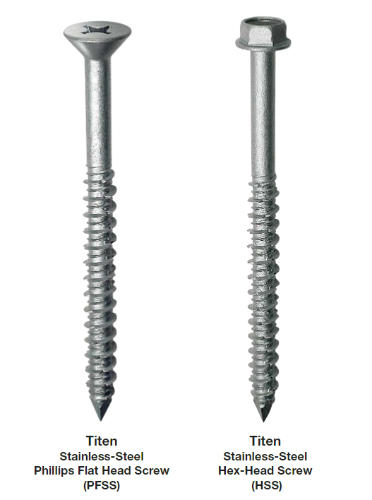

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
